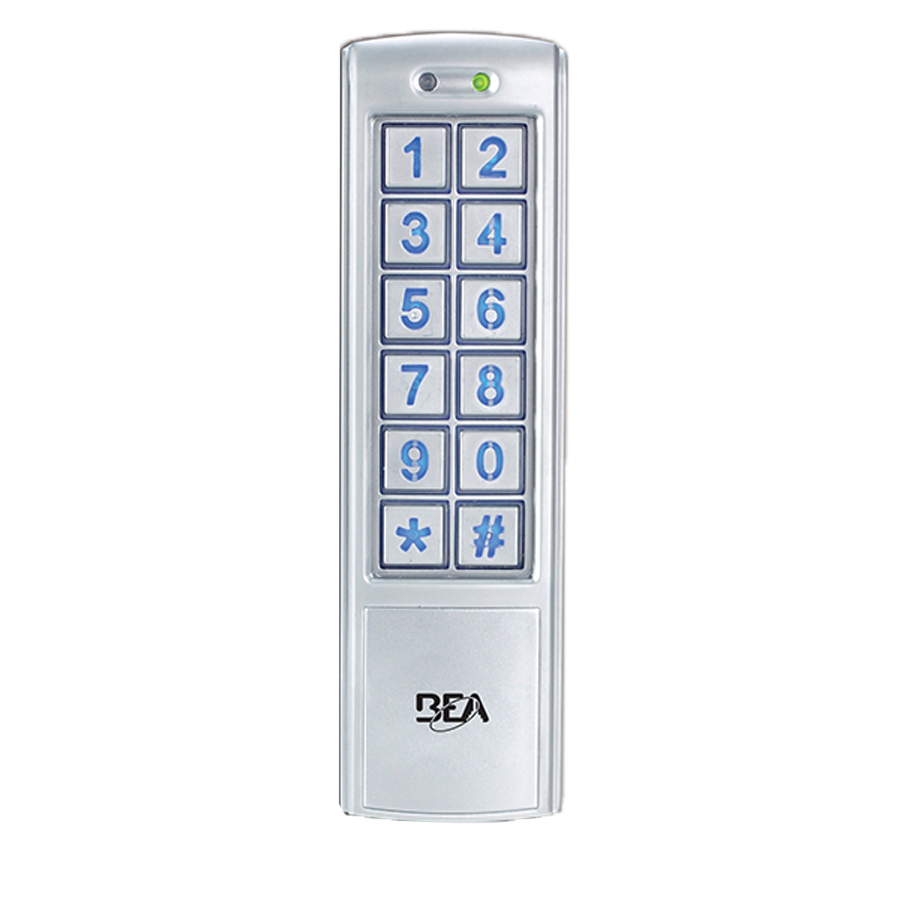

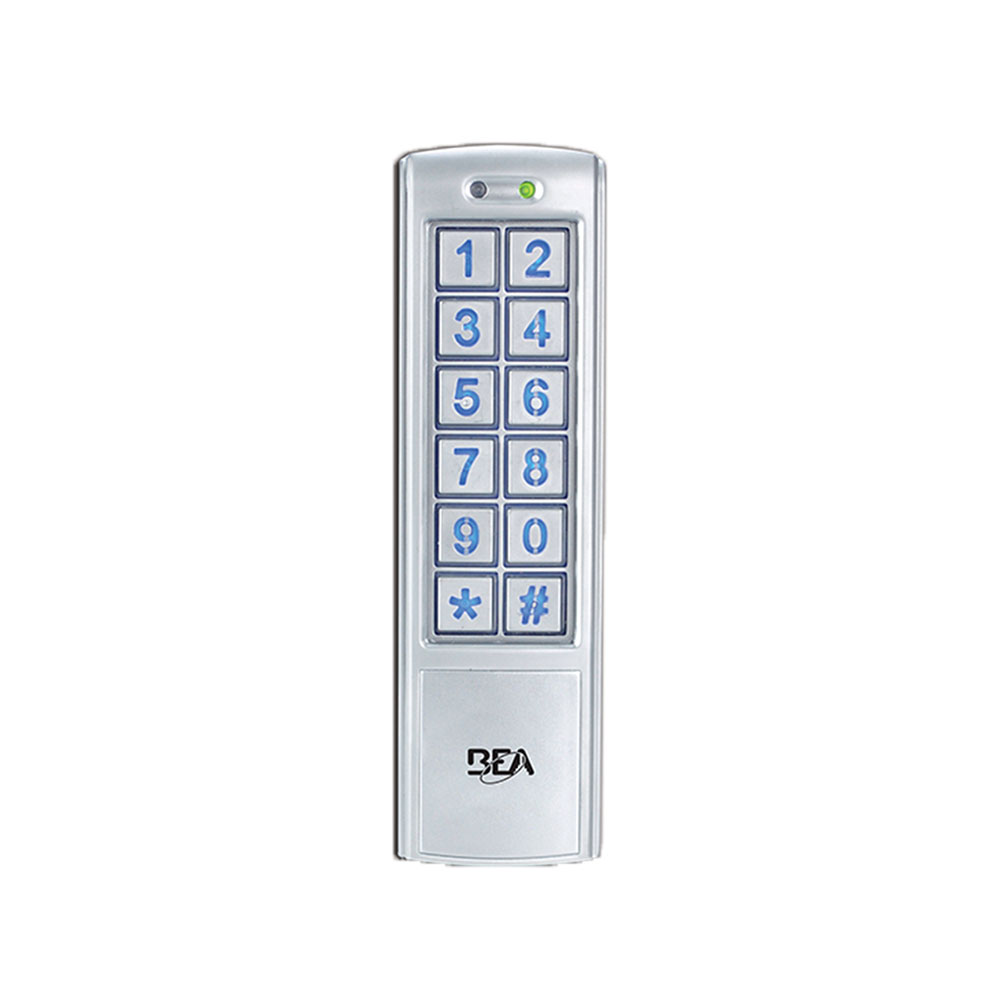

BEA 10KEYPADUSL Slim Line Universal Keypad Indoor or Outdoor, Backlit, 1010 User Codes

BEA Incorporated 10KEYPADUSL Slim Line Universal Keypad offers a versatile and reliable solution for access control needs, whether indoors or outdoors. Designed for integration with various security systems, this keypad supports electromagnetic locks, electric strikes, and other devices requiring control inputs. With the capability to store up to 1,100 user codes-1,000 for Zone 1 and 100 for Zone 2-it caters to a wide range of applications, making it ideal for both residential and commercial environments. The keypad is built to withstand challenging conditions, featuring an IP66 rating that ensures resistance to dust and water. This reliability is further enhanced by a tamper alarm to alert users of unauthorized access attempts. Backlit numbers improve visibility, making it easy to operate in low-light situations. The device operates within a temperature range of -22 to 158 °F and has a humidity tolerance of 0 to 95% non-condensing. Notable specifications include a supply voltage of 12-24 VAC/VDC, a standby current of ≤ 30 mA, and multiple relay outputs for diverse control applications. Measuring 1.7" x 5.9" x 0.95", the slim-line design fits seamlessly into any setting while maintaining functionality. Experience enhanced security with the BEA Incorporated 10KEYPADUSL Slim Line Universal Keypad.

Slim Line Universal Keypad Indoor or Outdoor, Backlit, 1010 User Codes

Universal Keypad Family offers field-proven reliability and a cost-effective solution anywhere access control is desired. Available in both Single gang and slim-line surface mount, these devices are designed for integration into security systems with electromagnetic locks, electric strikes and other equipment requiring on / off or momentary control inputs. All programming is completed entirely from the keypad. Non-volatile memory means codes settings will remain in the event of power loss.

Features:

• Highly Flexible: Allows for up to 1100 user codes.
• Ideal For Outdoor Environments: IP66 rating ensures the device will withstand the elements in harsh, industrial and outdoor environments.
• Tamper Alarm: Incorporates a tamper alarm feature as a standard option.
• Multiple Relays: Two-zone feature provides 2 relays and 2 exit button outputs for two-zone applications.
• Improved Visibility: Backlit numbers allow for ease of use in dimly-lit areas.
• Applications: Access Control.

Specifications:

• Supply Voltage: 12 — 24 VAC / VDC (Do Not Exceed 30 VDC or 24 VAC).
• Standby Current: ≤ 30 mA.
• Working Current: ≤ 160 mA.
• Max User Codes: 1100 (Zone 1: 1000 users. Zone 2: 100 users.)
• Relock Time: 0 – 99 s.
• Output:
• Max. Contact Voltage: 42 VAC / VDC.
• Max. Contact Current: 1 A (resistive).
• Max. Switching Power: 30 W (VDC) / 48 VA (VAC).
• Cable Length: 3’.
• Operating Temperature: - 22 – 158 °F
• Operating Humidity: 0 – 95% (non-condensing).
• IP Rating: IP66 (waterproof and dust proof).
• Dimensions (W x H x D):
• Single gang: 3" x 4-7/10" x 9/10"
• Slim-line: 1-7/10" x 5-9/10" x 19/20"
• Certifications: CE, RoHS.
• Backlight: Blue keypad illumination.

Series:

• 10KEYPADU: Single gang keypad.
• 10KEYPADUSL: Slim-line keypad.
• 10ABOXSGSMS: Single gang angled surface mounting box.
