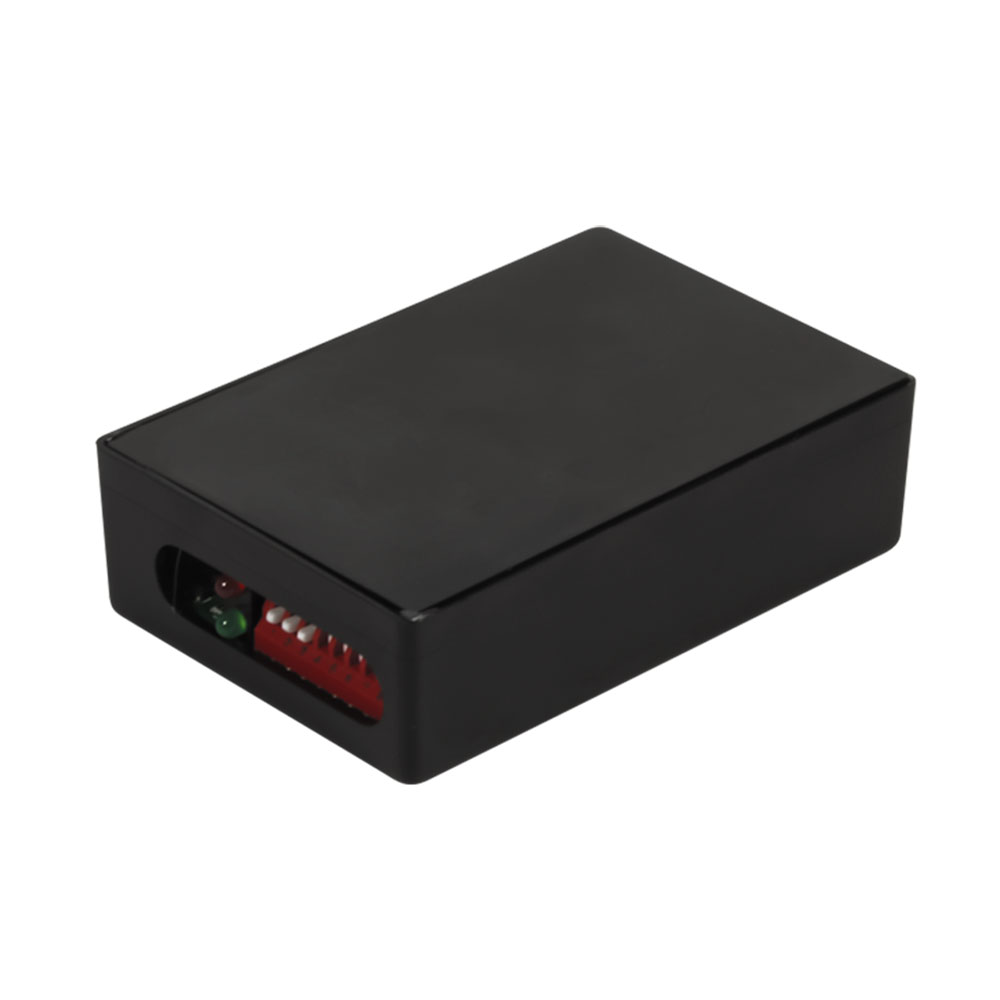

BEA 10LO21 Lockout Relay

BEA 10LO21 Lockout Relay is designed specifically for swing door applications, enhancing safety and control. This relay features an optional safety beam input that can override the inhibit signal during the closing process. If the safety beam path is blocked or interrupted, the inhibit data is canceled, triggering a safety signal to the door control safety input to prevent accidents. With intelligent, programmable controllers, BEA offers a diverse range of logic module options, including the versatile BR3-X and the wireless BR2-900. The BR3-X is equipped with 13 programmable logic functions, making it suitable for various applications such as automatic pedestrian doors and access control systems. Its two-button programming and dual seven-segment display simplify setup, while its three relays with built-in surge suppression ensure smooth integration with electric locking devices. On the other hand, the BR2-900 boasts integrated 900 MHz wireless technology that eliminates the need for separate modules, saving both time and installation costs. It allows for sequenced or simultaneous relay activation, and its extended hold mode enables wireless push plates to function like hardwired ones. The BEA 10LO21 Lockout Relay combines advanced technology with user-friendly features, making it an essential component for enhancing safety in commercial door systems.

Lockout Relay

Lockout Relay for Swing Door Applications

The LO21 Provides Optional Safety Beam Input to Override the Inhibit Signal During Closing. When the Safety Beam Path is Blocked or Interrupted During Closing, the Inhibit Data Will be Cancelled, Thus Initiating a Safety Signal to the Door Control Safety Input.

Intelligent, programmable controllers -- and BEA boasts a wide family of logic module options, including the BR3-X and Br2-900.

BEA's BR3-X provides both simple and advanced logic controls. Common uses for the Br3-X include automatic pedestrian doors, access control, industrial automation and single-occupancy restrooms.

BEA's BR2-900 is a 2-relay logic module with built-in 900 MHz wireless technology. The BR2-900 is compatible with all existing BEA 900 MHz transmitters and products, plus the Universal Transmitter.

Notable Features Include:

• Logic module with integrated 900 MHz wireless technology eliminates the need for separate logic module and wireless receiver (Br2-900)
• Sequenced or simultaneous relay activation for application flexibility (Br2-900)
• 2-AMP relays allow the direct release of an electric locking device wirelessly, eliminating the need for a separate logic module or isolation relay (Br2-900)
• Extended Hold Mode allows wireless push plates to function like hardwired push plates (if push plate is held, relay does not time out) (Br2-900)
• Wireless functionality eliminates the need to run input wires directly to the logic module, saving both time and money (Br2-900)
• Dry auxiliary input for overriding Day / Night Mode (Br2-900)

• Versatility with 13 programmable logic functions for the BR3-X
• Two-button programming combined with dual seven-segment display provides simple setup (BR3-X)
• Two 3-AMP relays and one 1-AMP relay, all with built-in surge suppression, eliminates the need for external components when installing some electric locking devices (BR3-X)
• WET output with AC / DC voltage for powering an electric locking device directly from the module (BR3-X)
