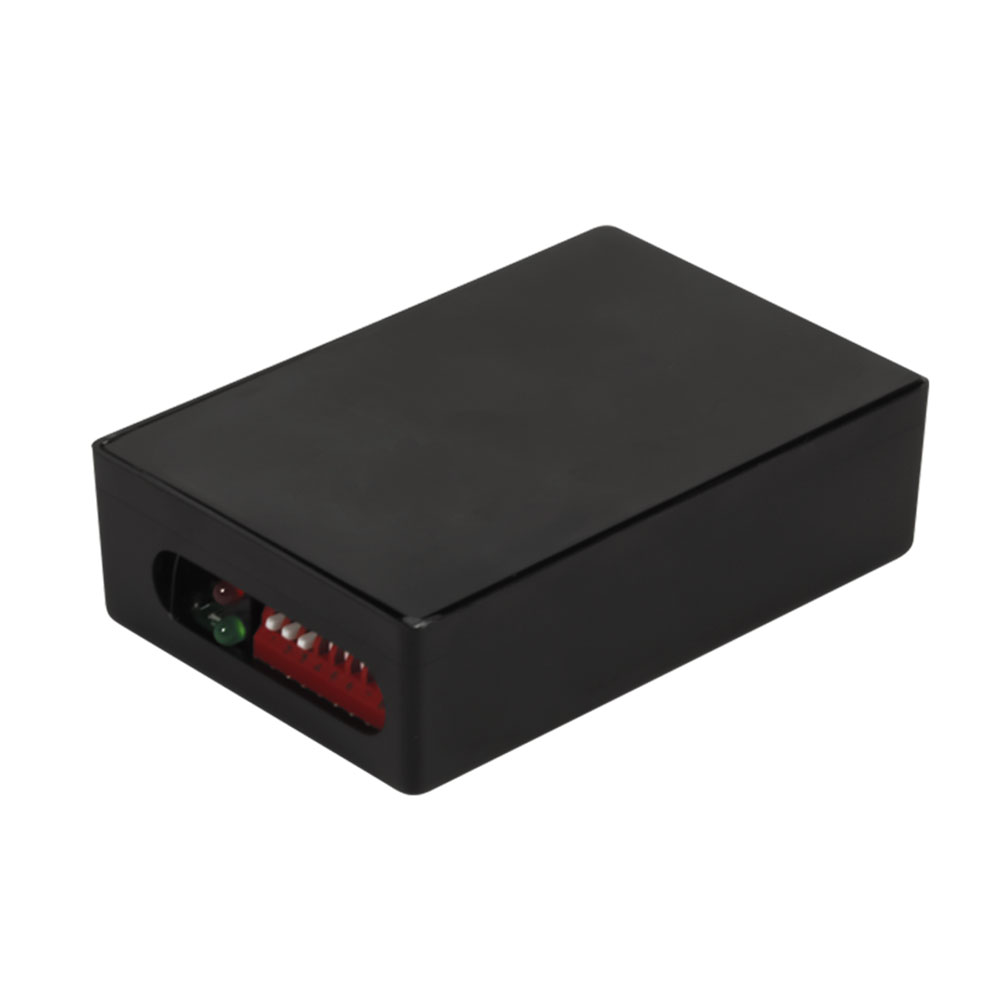

BEA 10LO21P Parallax Lockout Relay

BEA 10LO21P Lockout Relay For Parallax offers a universal solution for enhanced safety in automatic door applications. This lockout relay integrates a safety beam input that overrides the inhibit signal during the closing process. If the safety beam path is blocked or interrupted, the inhibit data is canceled, triggering a safety signal to the door control safety input, ensuring smooth and secure operation. Designed for versatility, the LO21 is compatible with BEA’s BR3-X and BR2-900 logic modules, which provide a range of intelligent control options. The BR3-X features 13 programmable logic functions and is ideal for a variety of applications, including automatic pedestrian doors and industrial automation. With two 3-AMP relays and a 1-AMP relay, complete with surge suppression, this module simplifies installation by eliminating the need for external components. The BR2-900 incorporates 900 MHz wireless technology, facilitating a seamless connection without additional wiring. Its extended hold mode allows wireless push plates to function similarly to hardwired options, while the two-button programming and dual seven-segment display make setup straightforward. With a sleek black finish and ADA compliance, the BEA 10LO21P Lockout Relay ensures both functionality and accessibility in commercial environments.

Lockout Relay For Parallax

Universal Lockout Relay for PARALLAX

The LO21 Provides Optional Safety Beam Input to Override the Inhibit Signal During Closing. When the Safety Beam Path is Blocked or Interrupted During Closing, the Inhibit Data Will be Cancelled, Thus Initiating a Safety Signal to the Door Control Safety Input.

Intelligent, programmable controllers -- and BEA boasts a wide family of logic module options, including the BR3-X and Br2-900.

BEA's BR3-X provides both simple and advanced logic controls. Common uses for the Br3-X include automatic pedestrian doors, access control, industrial automation and single-occupancy restrooms.

BEA's BR2-900 is a 2-relay logic module with built-in 900 MHz wireless technology. The BR2-900 is compatible with all existing BEA 900 MHz transmitters and products, plus the Universal Transmitter.

Notable Features Include:

• Logic module with integrated 900 MHz wireless technology eliminates the need for separate logic module and wireless receiver (Br2-900)
• Sequenced or simultaneous relay activation for application flexibility (Br2-900)
• 2-AMP relays allow the direct release of an electric locking device wirelessly, eliminating the need for a separate logic module or isolation relay (Br2-900)
• Extended Hold Mode allows wireless push plates to function like hardwired push plates (if push plate is held, relay does not time out) (Br2-900)
• Wireless functionality eliminates the need to run input wires directly to the logic module, saving both time and money (Br2-900)
• Dry auxiliary input for overriding Day / Night Mode (Br2-900)

• Versatility with 13 programmable logic functions for the BR3-X
• Two-button programming combined with dual seven-segment display provides simple setup (BR3-X)
• Two 3-AMP relays and one 1-AMP relay, all with built-in surge suppression, eliminates the need for external components when installing some electric locking devices (BR3-X)
• WET output with AC / DC voltage for powering an electric locking device directly from the module (BR3-X)
