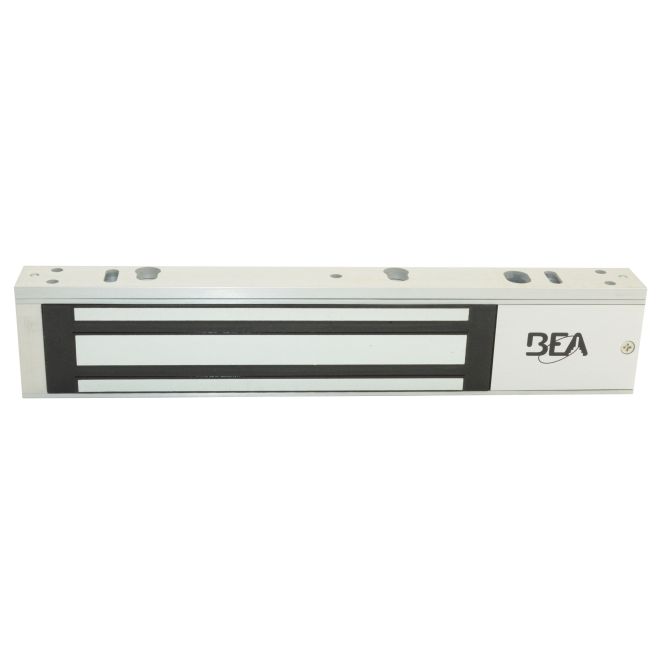

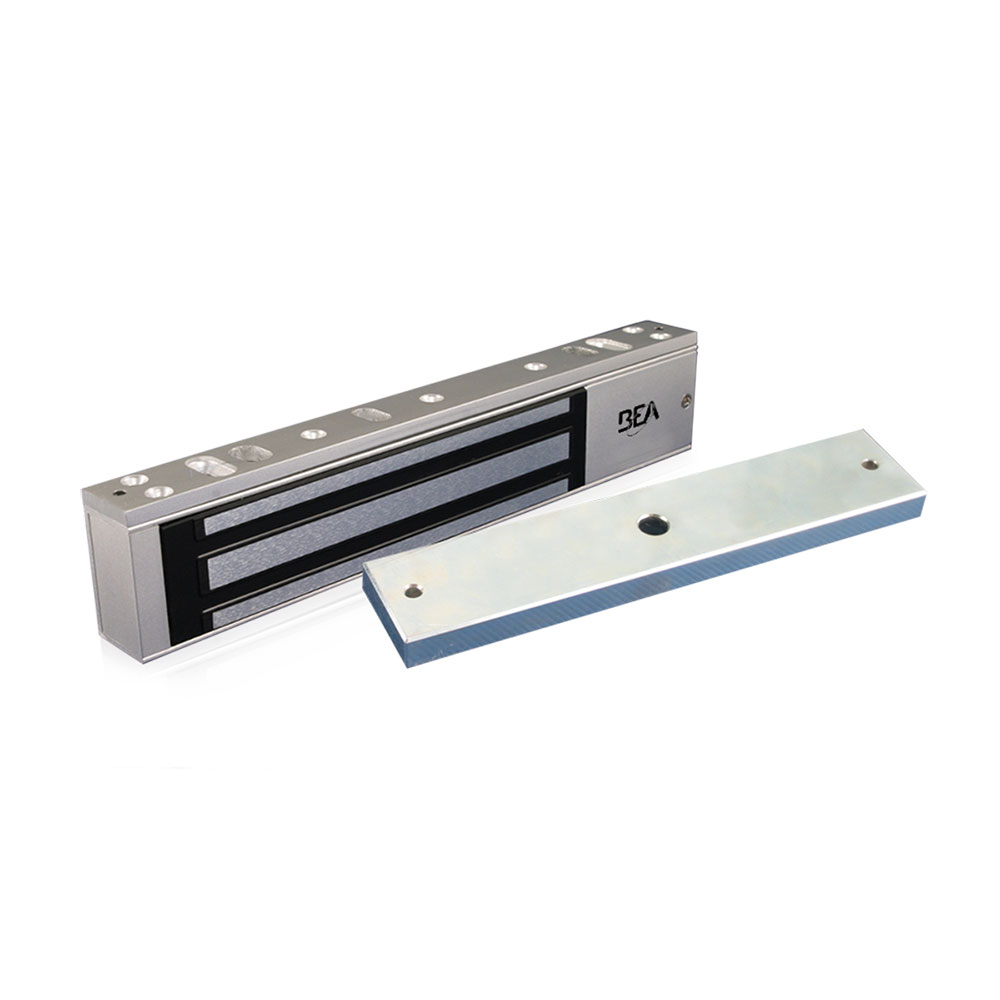

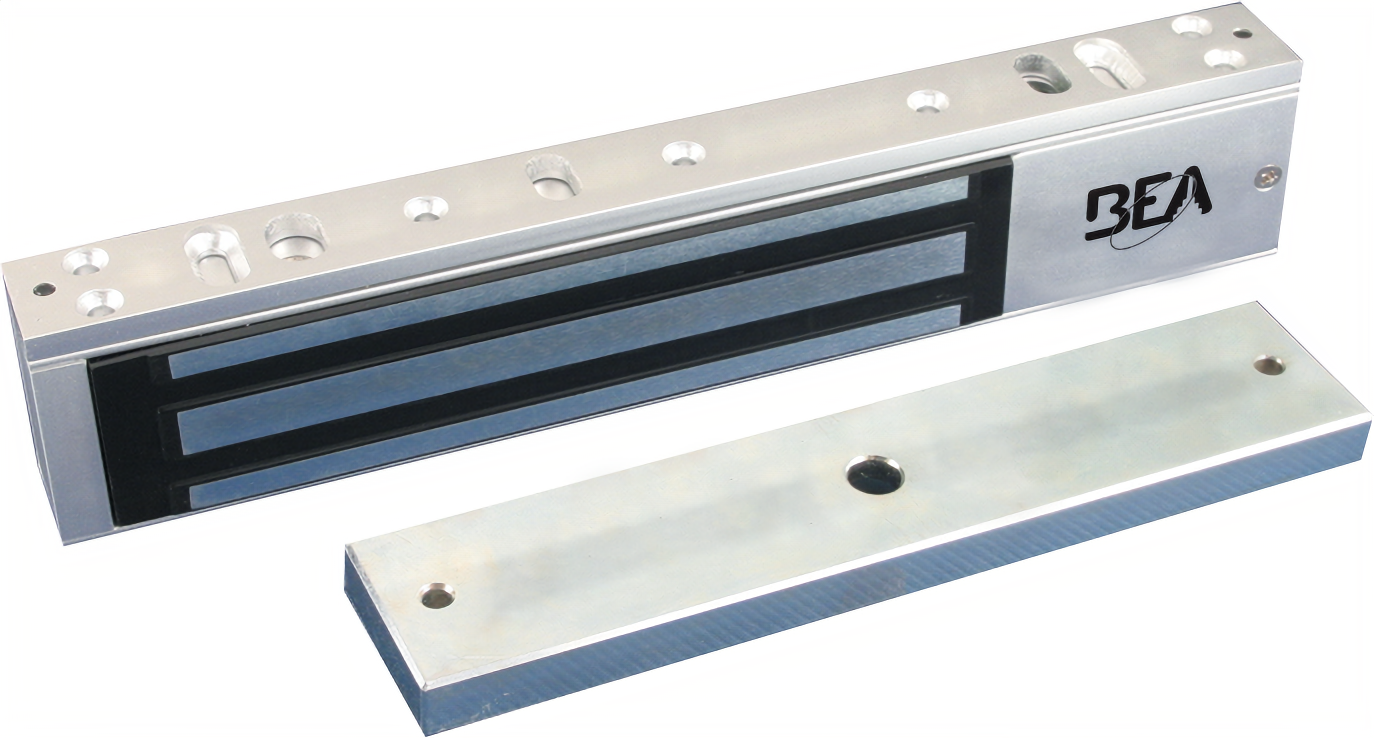

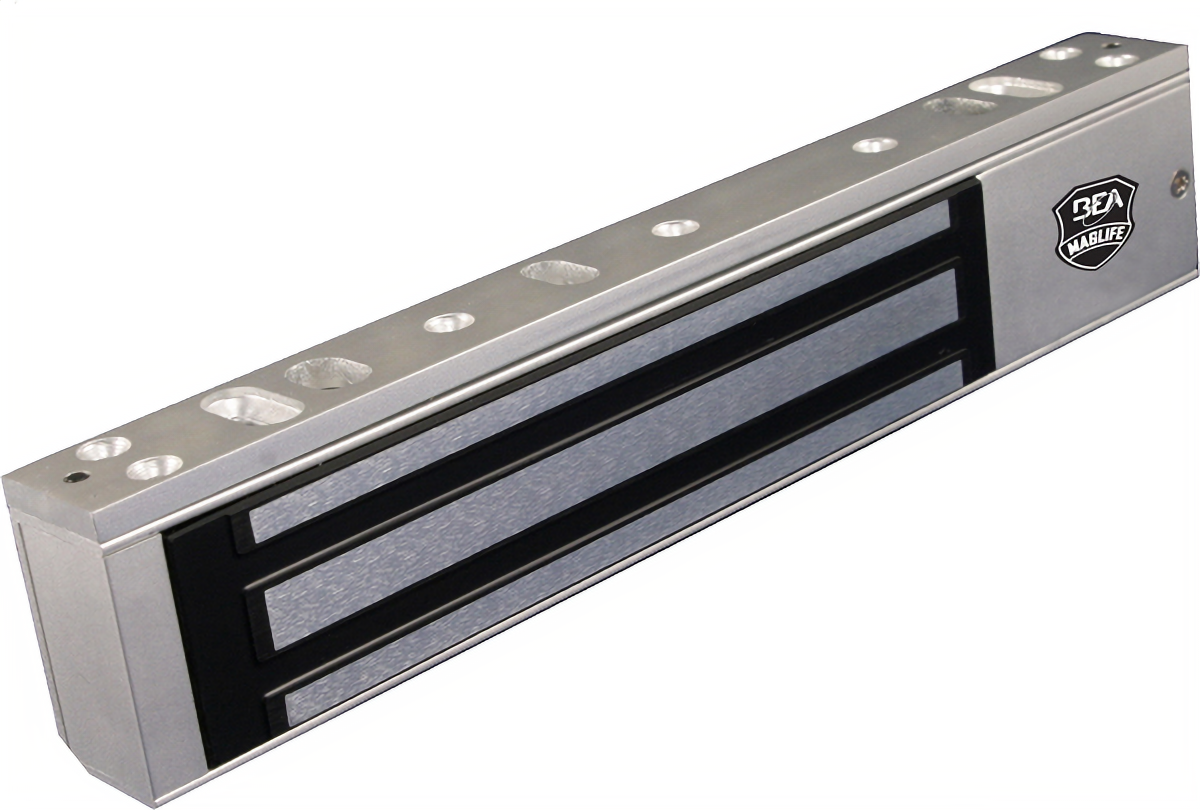

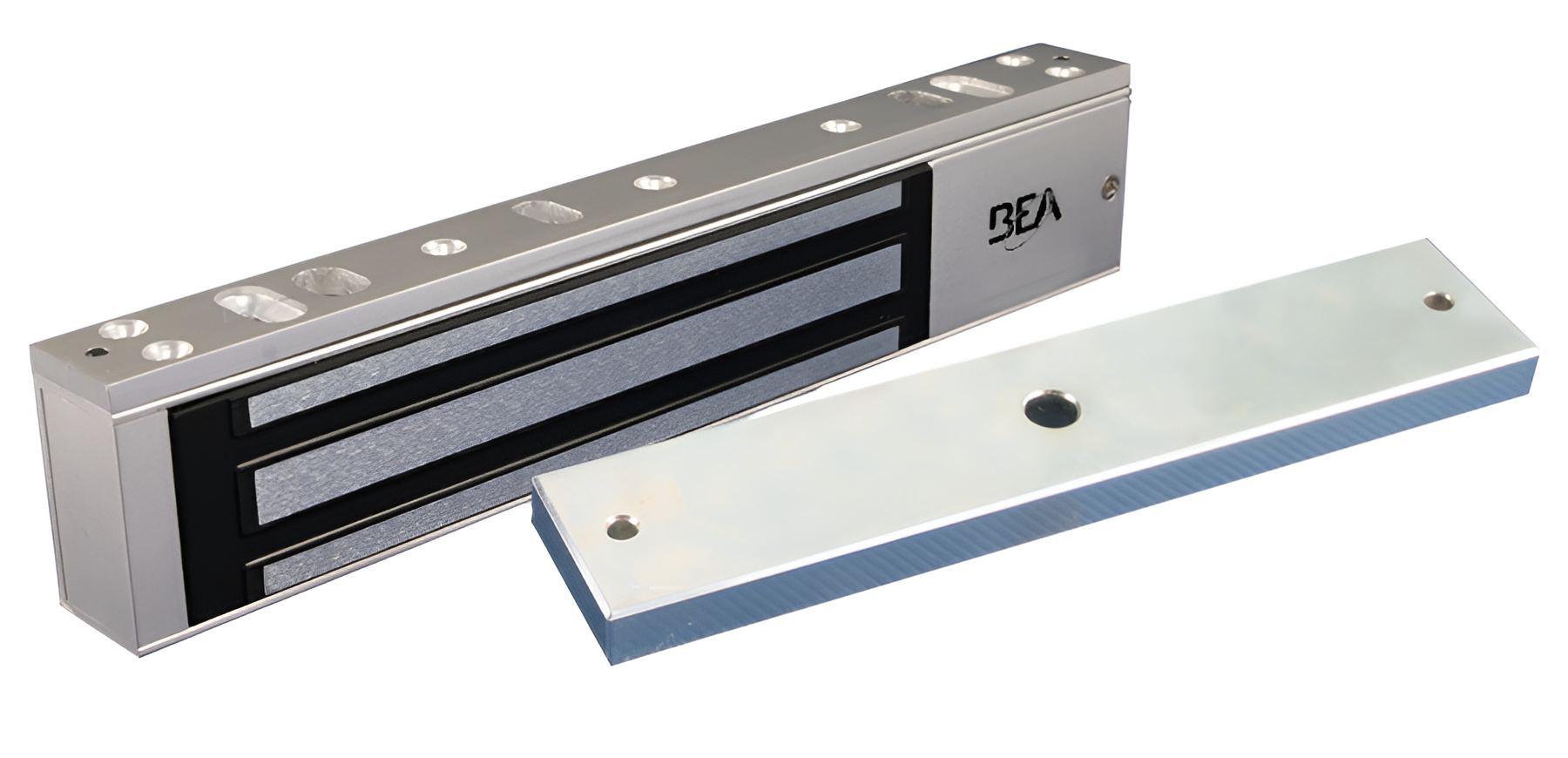

BEA 10MAGLOCK3UL 600lb Sgl Maglock 12/24 Ul Led

Your Price: $162.14

Retail Price:$267.64

Your Savings:$105.50(39%)

Single Electromagnetic Surface Mount Lock, UL / ULC Listed, LED Status, Lock Status Sensor (NO or NC Outputs), 0 to 90 S Hold Open Timer (Relock), (1) Bond Status Relay, 12 / 24 VDC (UL Listed Power Supply Required), 600 Lb.

Part Number : BEA_10MAGLOCK3UL

Availability: 0 Special order - ships in 5-10 business days

Quantity

Description

BEA 10MAGLOCK3UL 600lb Sgl Maglock 12/24 Ul Led

UL Listed

UL Listed
Adjustable 0-90 sec relock time delay
Available in 600 or 1,200 lb holding forces
Available in single or double surface mount models
Lock status sensor with visible LED
Lock status sensor offers either normally open (NO) or normally closed (NC) output configurations
Input voltage of 12/24 VDC
Variety of mounting plate and bracket hardware available
Available in access control packages with sensor logic module, actuator, power supply and maglock

Attributes

Manufacturer surcharge: $ 7.34

Access Type: Maglock

Accessible: Yes

Ada Compliance: Yes

Alternate Codes: 10MAGLOCK3, 10MAGLOCK3UL, 142281, BEA10MAGLOCK3, BEA10MAGLOCK3UL*

Amp Draw: 505 mA @ 12 VDC or 260 mA @ 24 VDC

Baa Qualified: No

Base Material: Aluminum

Burglar Rated: No

Commercial Residential: Commercial

Finish: Aluminum

Fire Rated: No

Fire Rating: No

Handing: Non-Handed

Holding Force: 600 lbs

Installation: Commercial

Maglock Type: Single Door

Mounting: Surface Mount

Operating Voltage: 12/24 VDC

Options: Bond Sensor, LED Status

Pack Qty: 1

Restrictions: No

Series: BEA Magnetic Locks

Size: 19.76 x 1.85 x 1.02 inch

Subtype: Maglocks

Type: ACCESS CONTROL

Unit of Measure: Each

Voltage: 12V DC, 24V DC
