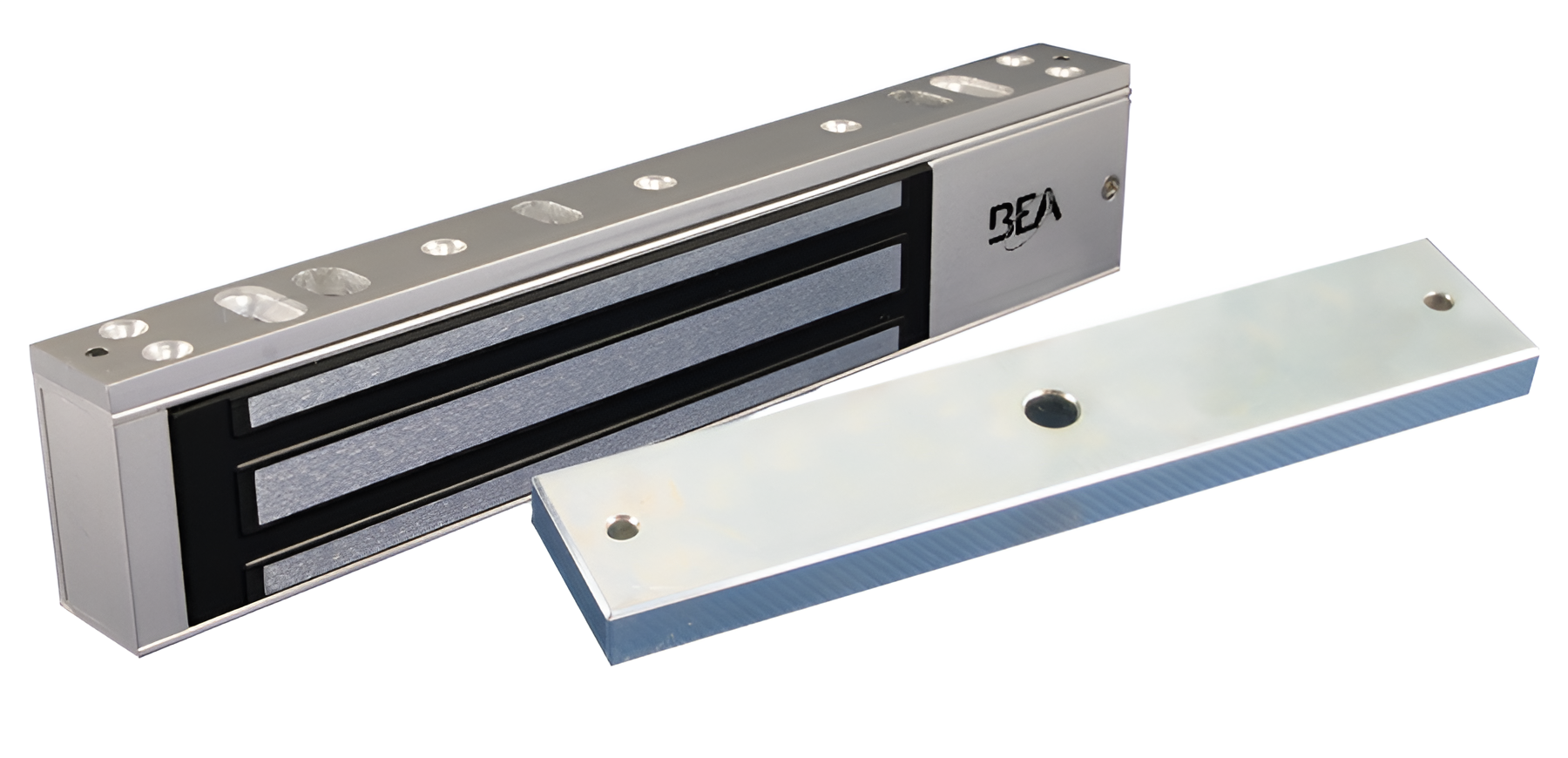

BEA 10MAGLOCK3UL (AFTER SEPT 2023) 600lbs Single Maglock 12/24VDC, LED, UL Listed, BEA10LZBR6SUL Bracket

BEA Incorporated 10MAGLOCK3UL is a robust single electromagnetic lock designed to provide reliable security for various applications, including retail, healthcare, education, and more. With a holding force of 600 lbs, this UL Listed maglock ensures that only authorized individuals gain access, while also allowing for emergency exit capabilities. This model operates on a dual voltage of 12/24 VDC and is recommended to be used with a UL Listed power supply for optimal performance. It features a user-configurable relock time delay adjustable from zero to 90 seconds, offering flexibility based on specific security needs. Additionally, the lock status sensor provides enhanced monitoring with options for normally open (NO) or normally closed (NC) outputs, complemented by a visible LED indicator. Constructed with an anodized aluminum housing, the 10MAGLOCK3UL is designed for durability and anti-tampering, featuring a security screw that prevents unauthorized access to the locking mechanism. Its dimensions are 9.84 inches in length, 1.65 inches in width, and 1.02 inches in height, making it suitable for various door configurations. This maglock is the ideal choice for professionals seeking a reliable, efficient access control solution.

600lbs Single Maglock 12/24VDC, LED, UL Listed (after Sept 2023 Uses BEA10LZBR6SUL Bracket)

UL Listed Maglocks provide a standards-compliant locking solution for retail, healthcare, financial, education or storage facilities. Our electromagnetic locks provide a reliable, durable solution for authorized individuals or doorways leading to an emergency exit. Common applications include access control or egress doors using a sensor or a switch to release the locking device. UL Listed Maglocks can be used on hollow metal, wood, aluminum, glass, and composite door materials and are available in surface mount single or double door configurations. Additionally, the adjustable zero to 90 second relock time delay and the bonding status sensor allow configuration of the settings as needed.

Features:

• User-Configurable: Adjustable zero to 90 second relock time delay
• Enhanced Access Control / Monitoring: Lock (bond) status sensor with visible LED offers either normally open (NO) or normally closed (NC) output configuration
• UL 294 Listed: Models are rated for access control systems to 500 and 1,000 lb static force, respectively and must be used with a UL Listed power supply
• Anti-Tampering: Models include a security screw on the front face blocks access to the bottom of the electromagnetic lock preventing tampering or dismounting

Specifications:

• 10MAGLOCK3UL:
• Door Configuration: Single, surface mount
• Holding Force: 600 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw: .50 A @ 12 VDC, .25 A @ 24 VDC
• Dimensions: 9.84in x 1.65in x 1.02in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
• 10MAGLOCK6UL:
• Door Configuration: Double, surface mount
• Holding Force: 600 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw: 1 A @ 12 VDC, .50 A @ 24 VDC
• Dimensions: 19.76in x 1.65in x 1.02in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
• 10MAGLOCK1UL:
• Door Configuration: Single, surface mount
• Holding Force: 1200 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw: .50 A @ 12 VDC, .30 mA @ 24 VDC
• Dimensions: 10.47in x 2.87in x 1.58in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
• 10MAGLOCK5UL:
• Door Configuration: Double, surface mount
• Holding Force: 1200 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw: 1 A @ 12 VDC, .60 A @ 24 VDC
• Dimensions: 20.94in x 2.87in x 1.58in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
