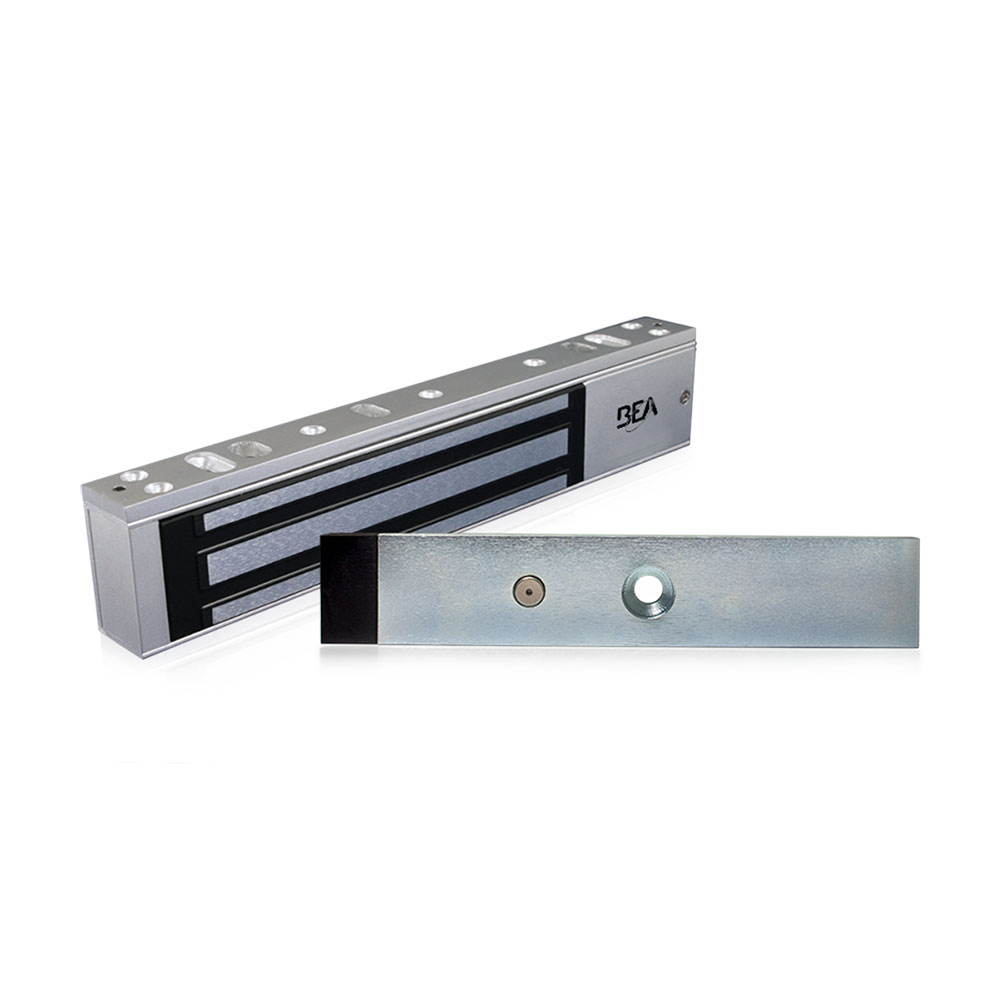

BEA 10MAGLOCK3ULDS 600LB Single Magnetic Lock

BEA 10MAGLOCK3ULDS 600LB Single Maglock offers a reliable and robust security solution for various high-security environments, including retail, healthcare, and banking facilities. This single electromagnetic surface mount lock is UL/ULC listed, ensuring compliance with industry standards for enhanced safety. With a holding force of 600 lbs., it provides formidable resistance against unauthorized access. This maglock features an adjustable hold-open timer that ranges from 0 to 90 seconds, allowing for flexible relock options tailored to your specific needs. The inclusion of both lock status and door status sensors, along with a visible LED indicator, ensures that you are always informed of the lock's operational state. Designed for easy installation, the BEA 10MAGLOCK3ULDS can be mounted on a variety of door materials, including hollow metal, wood, aluminum, glass, and composites. Operating on 12/24 VDC, this unit requires a UL listed power supply to function effectively. With an amp draw of 505 mA at 12 VDC or 260 mA at 24 VDC, it balances power efficiency with optimal performance. Overall, the BEA 10MAGLOCK3ULDS is an ideal choice for commercial settings seeking both security and versatility in door hardware solutions.

600LB Single Maglock

Single Electromagnetic Surface Mount Lock, UL / ULC Listed, LED Status, Lock Status Sensor / Door Status Sensor, 0 to 90 S Hold Open Timer (Relock), 12 / 24 VDC (UL Listed Power Supply Required), 600 Lb.

BEA's UL LISTED MAGLOCKS Provide a Standards Compliant Locking Solution for Retail, Healthcare, Banking and Other High Security Facilities That Require UL listed Security Products. Maglocks can be Used on Hollow Metal, Wood, Aluminum, Glass and Composite Door Materials. The UL LISTED MAGLOCKS are Available in Surface Mount Single or Double Door Configurations, With Holding Force of 600 or 1200 Lbs. These Locks Include Adjustable Zero to 90 Second Relock Time Delay and a Lock Status Sensor With Visible LED.

The maglocks are available in surface mount single or double door configurations, with holding force of 600 or 1,200 lbs.

BEA maglocks are available in surface mount single or double door configurations, with holding force of 600 or 1,200 lbs.

Resources

• 2022 BEA Catalog
• BEA Application Note for 10MAGLOCK
• BEA UL MAGLOCK User Guide
• BEA UL MAGLOCKS with DS Cut Sheet
