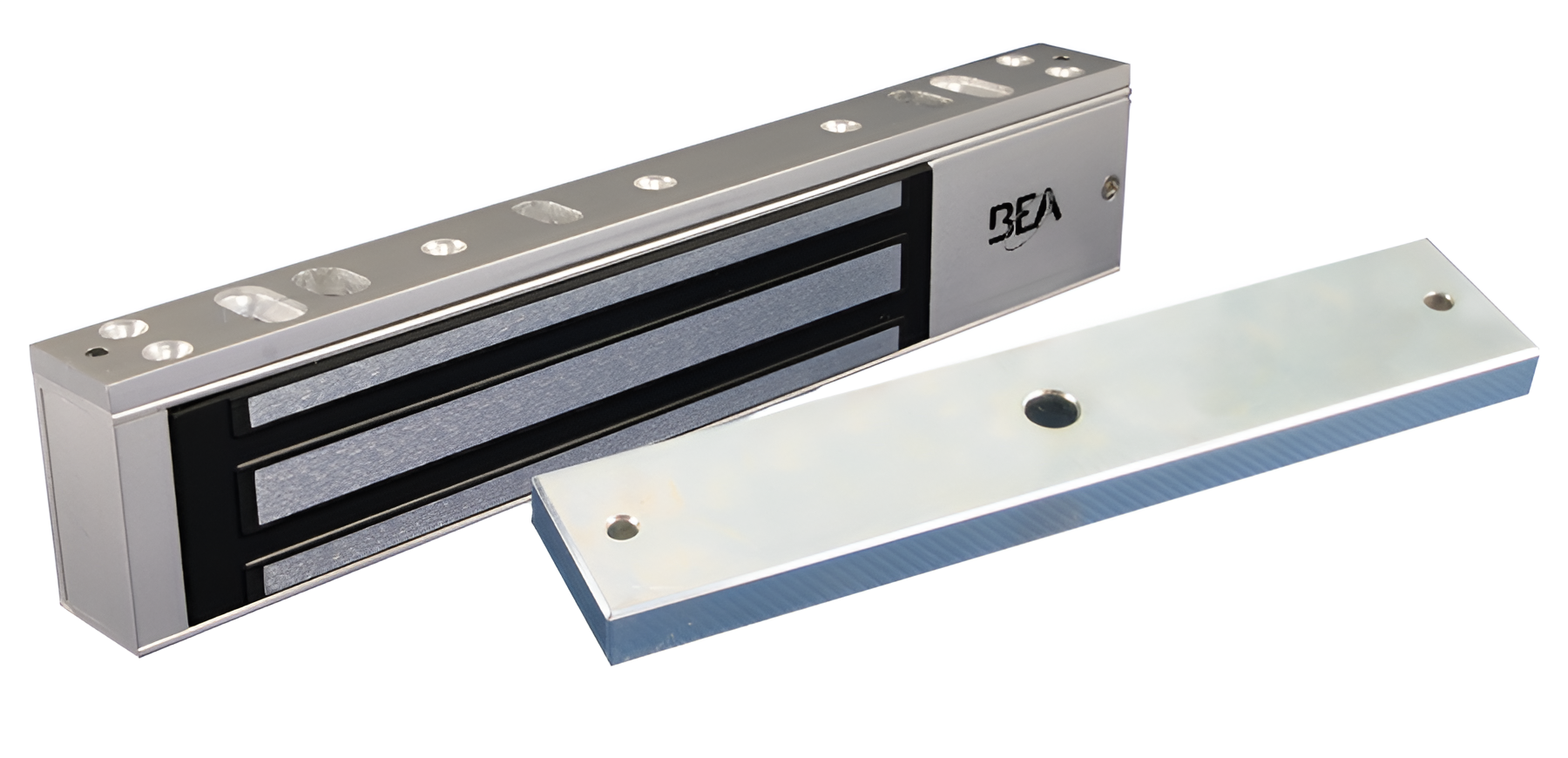

BEA 10MAGLOCK3ULDS (AFTER SEPT 2023) 600lbs Single Maglock 12/24VDC, LED, UL Listed, Door Status Switch

BEA Incorporated 10MAGLOCK3ULDS offers a robust and reliable locking solution designed for various applications, including retail, healthcare, and educational facilities. This single electromagnetic lock delivers a formidable holding force of 600 lbs and operates on 12/24 VDC, ensuring compatibility with UL listed power supplies for optimal performance. With a sleek anodized aluminum housing, this maglock is not only durable but also versatile, suitable for installation on hollow metal, wood, aluminum, glass, and composite doors. The user-configurable features include an adjustable relock time delay ranging from zero to 90 seconds, accommodating specific security needs. Additionally, the integrated lock status sensor provides enhanced access control and monitoring, with options for normally open (NO) or normally closed (NC) output configurations. Security is further emphasized with an anti-tampering design that includes a security screw to prevent unauthorized access to the lock’s internals. The compact dimensions of 9.84 inches by 1.65 inches by 1.02 inches make this maglock an unobtrusive yet powerful component of your security system. Choose the BEA Incorporated 10MAGLOCK3ULDS for a dependable and efficient locking solution that prioritizes safety and convenience.

600lbs Single Maglock 12/24VDC, LED, UL Listed, w/ Door Status Switch (after Sept 2023 Uses BEA10LZBR6SUL Bracket)

UL Listed Maglocks provide a standards-compliant locking solution for retail, healthcare, financial, education or storage facilities. Our electromagnetic locks provide a reliable, durable solution for authorized individuals or doorways leading to an emergency exit. Common applications include access control or egress doors using a sensor or a switch to release the locking device. UL Listed Maglocks can be used on hollow metal, wood, aluminum, glass, and composite door materials and are available in surface mount single or double door configurations. Additionally, the adjustable zero to 90 second relock time delay and the bonding status sensor allow configuration of the settings as needed.

Features:

• User-Configurable: Adjustable zero to 90 second relock time delay
• Enhanced Access Control / Monitoring: Lock (bond) status sensor with visible LED offers either normally open (NO) or normally closed (NC) output configuration
• UL 294 Listed: Models are rated for access control systems to 500 and 1,000 lb static force, respectively and must be used with a UL Listed power supply
• Anti-Tampering: Models include a security screw on the front face blocks access to the bottom of the electromagnetic lock preventing tampering or dismounting

Specifications:

• 10MAGLOCK3UL:
• Door Configuration: Single, surface mount
• Holding Force: 600 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw: .50 A @ 12 VDC, .25 A @ 24 VDC
• Dimensions: 9.84in x 1.65in x 1.02in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
• 10MAGLOCK6UL:
• Door Configuration: Double, surface mount
• Holding Force: 600 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw: 1 A @ 12 VDC, .50 A @ 24 VDC
• Dimensions: 19.76in x 1.65in x 1.02in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
• 10MAGLOCK1UL:
• Door Configuration: Single, surface mount
• Holding Force: 1200 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw: .50 A @ 12 VDC, .30 mA @ 24 VDC
• Dimensions: 10.47in x 2.87in x 1.58in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
• 10MAGLOCK5UL:
• Door Configuration: Double, surface mount
• Holding Force: 1200 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw: 1 A @ 12 VDC, .60 A @ 24 VDC
• Dimensions: 20.94in x 2.87in x 1.58in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
