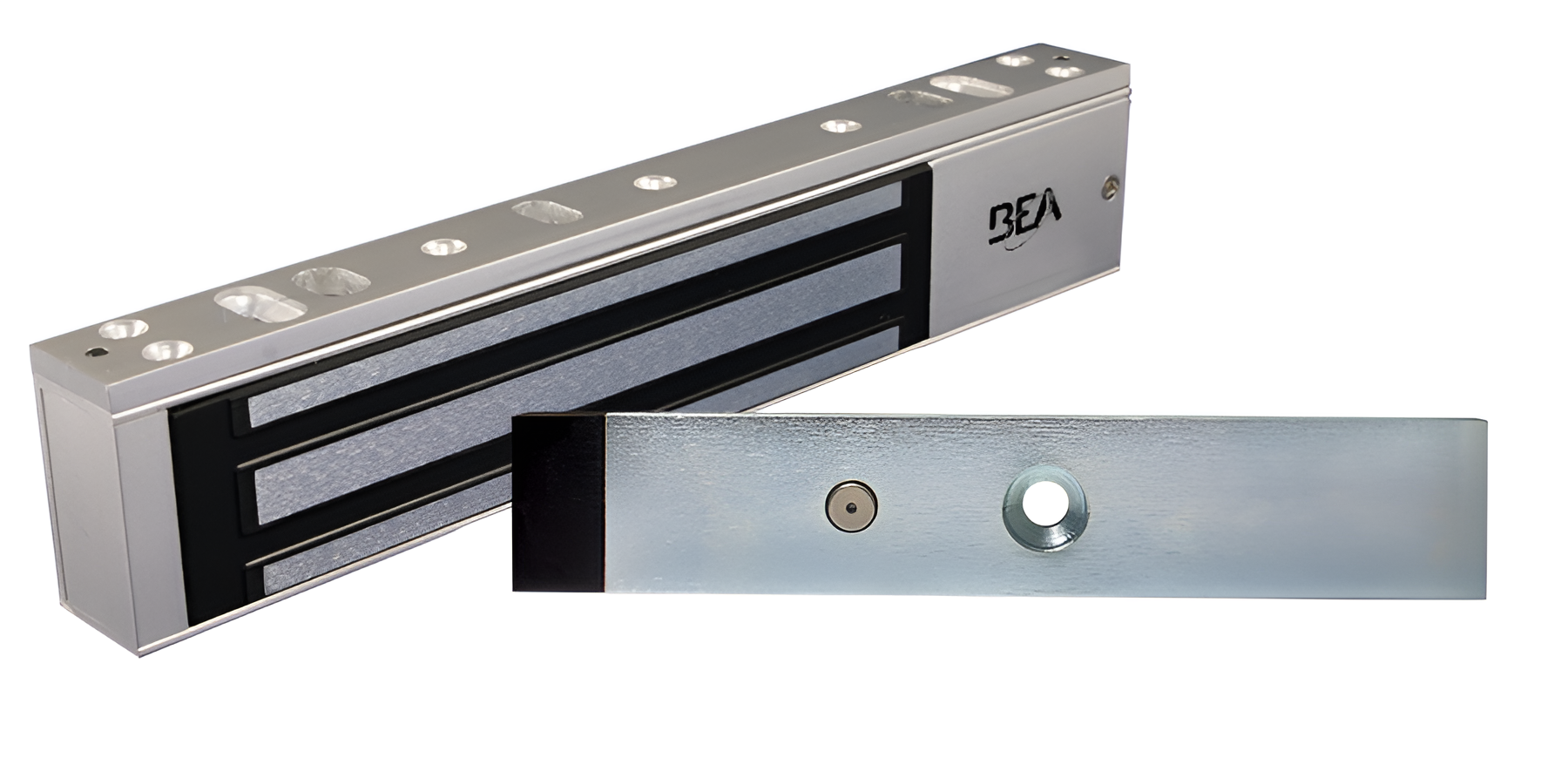

BEA 10MAGLOCK3ULDS (BEFORE SEPT 2023) 600lbs Single Maglock 12/24VDC, LED, UL Listed, Door Status Switch

BEA Incorporated 10MAGLOCK3ULDS (Before Sept 2023) offers a robust locking solution designed for high-security environments such as retail, healthcare, and banking. With a holding force of 600 lbs, this single maglock ensures reliable security for various door types, including hollow metal, wood, aluminum, glass, and composite materials. This UL Listed maglock operates on a versatile 12/24 VDC input voltage, making it compatible with a range of power supplies. Installation is made easier with its surface mount design, and the adjustable 0-90 second re-lock time delay provides customizable security based on specific needs. An integrated lock status sensor, accompanied by a visible LED indicator, allows for real-time monitoring of the lock's status, enhancing overall security management. The 10MAGLOCK3ULDS also features both normally open (NO) and normally closed (NC) output configurations, providing flexibility in access control setups. Constructed from anodized aluminum, this durable maglock is built to withstand the rigors of everyday use while maintaining a sleek appearance. Ideal for both indoor mounting and high-traffic areas, the BEA 10MAGLOCK3ULDS is the perfect choice for professionals seeking a reliable, efficient, and easy-to-install access control solution.

600lbs Single Maglock 12/24VDC, LED, UL Listed, w/ Door Status Switch (Before Sept 2023 Uses BEA10LZBRMAG3UL Bracket)

BEA UL Listed Maglocks provide a standards-compliant locking solution for retail, healthcare, banking and other high security facilities that require UL Listed security products. UL Listed Maglocks can be used on hollow metal, wood, aluminum, glass and composite door materials. The maglocks are available in surface mount Single or Double door configurations, with holding force of 600 or 1,200 lbs. These locks include adjustable 0-90 second re-lock time delay and a lock status sensor with visible LED.

Features:

• UL Listed
• Adjustable 0-90 sec relock time delay
• Available in 600 or 1,200 lb holding forces
• Available in Single or Double surface mount models
• Lock status sensor with visible LED
• Lock status sensor offers either normally open (NO) or normally closed (NC) output configurations
• Input voltage of 12/24 VDC
• Variety of mounting plate and bracket hardware available
• Available in access control packages with sensor logic module, actuator, power supply and maglock

Specifications:

• 10MAGLOCK3UL
• Door Configuration: Single, surface mount
• Holding Force: 600 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw:
• .50 A @ 12 VDC
• .25 A @ 24 VDC
• Dimensions: 9.84 in x 1.85 in x 1.02 in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
• 10MAGLOCK6UL
• Door Configuration: Double, surface mount
• Holding Force: 600 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw:
• 1 A @ 12 VDC
• .50 A @ 24 VDC
• Dimensions: 19.76 in x 1.85 in x 1.02 in
• Material:
• Relock Time Delay:
• Sensor:
• Output Relay:
• 10MAGLOCK6
• Door Configuration: Double, surface mount
• Holding Force: 600 lbs
• Input Voltage: 12/24 VDC
• Current Draw:
• .83 A @ 12 VDC
• .42 A @ 24 VDC
• Dimensions: 19.76 in x 1.85 in x 1.02 in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
• 10MAGLOCK1UL
• Door Configuration: Single, surface mount
• Holding Force: 1200 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw:
• .50 A @ 12 VDC
• .25 mA @ 24 VDC
• Dimensions: 10.74 in x 2.91 in x 1.58 in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay:Up to 1 A @ 24 VDC
• 10MAGLOCK5UL
• Door Configuration: Double, surface mount
• Holding Force: 1200 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw:
• 1.03 A @ 12 VDC
• .52 A @ 24 VDC
• Dimensions: 20.94 in x 2.91 in x 1.58 in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC

Resources

• Cut Sheet
