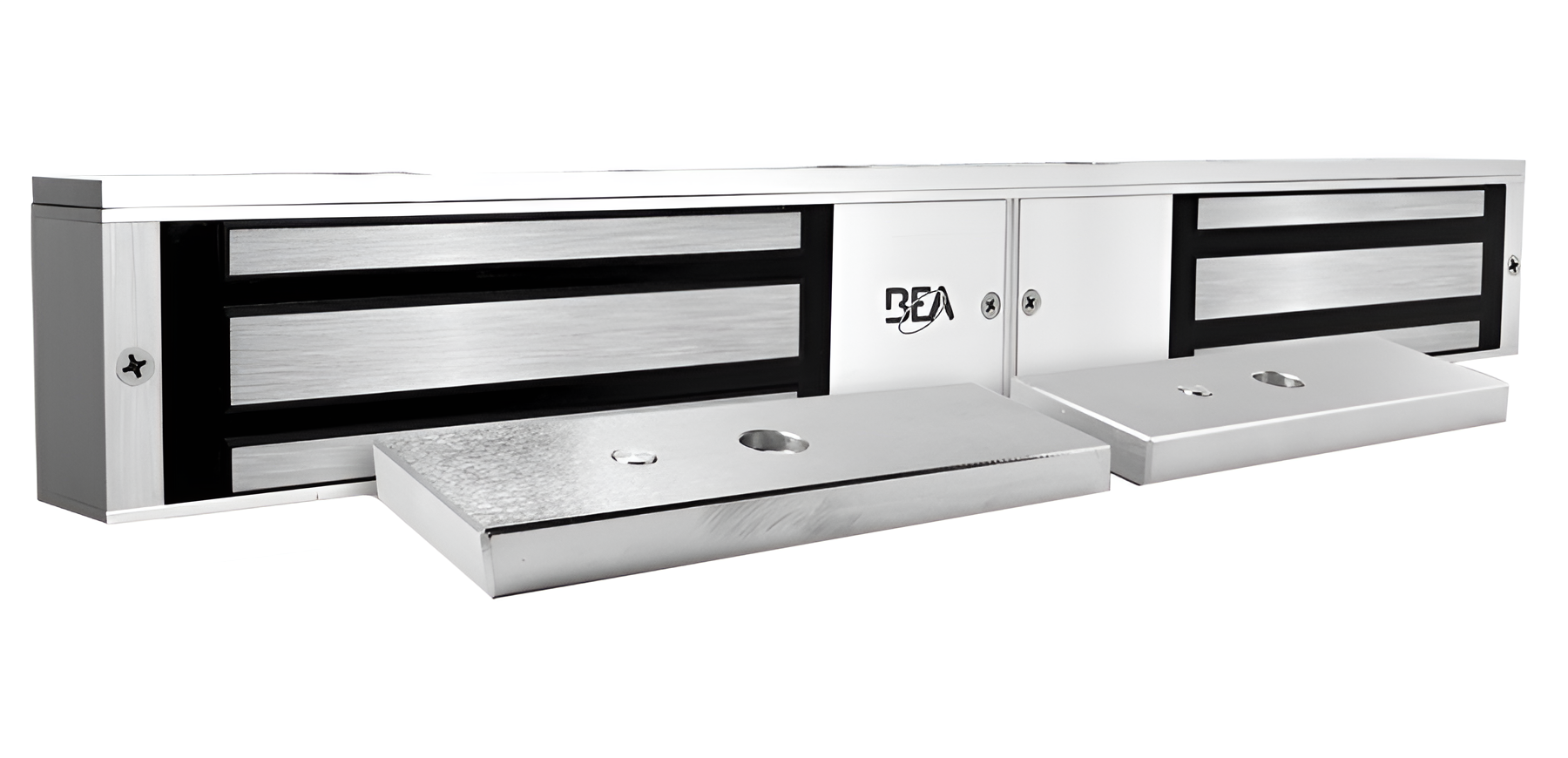

BEA 10MAGLOCK5UL (AFTER SEPT 2023) 1200lbs Double Maglock 12/24VDC, LED, UL Listed, 2 BEA10LZBR12SUL Brackets

BEA Incorporated 10MAGLOCK5UL (AFTER SEPT 2023) provides a robust and reliable locking solution, boasting a powerful 1200 lbs holding force. Designed for double door configurations, this surface-mounted electromagnetic lock operates on a versatile 12/24 VDC input voltage, making it suitable for a wide range of applications, including retail, healthcare, and educational facilities. This UL Listed maglock features an adjustable relock time delay of 0 to 90 seconds, allowing you to customize the locking mechanism to meet specific project requirements. The included lock status sensor offers enhanced access control and monitoring capabilities, with options for normally open (NO) or normally closed (NC) output configurations. Constructed from anodized aluminum, the 10MAGLOCK5UL is built to withstand the rigors of daily use while maintaining an aesthetic appeal. With a current draw of 1 A at 12 VDC and 0.60 A at 24 VDC, this model ensures efficient power consumption. Additionally, the anti-tampering design includes a security screw on the front face, preventing unauthorized access to the locking mechanism. Ideal for both new installations and retrofits, the BEA 10MAGLOCK5UL is a versatile choice for enhancing security in various environments.

1200lbs Double Maglock 12/24VDC, LED, UL Listed (after Sept 2023 Uses 2 BEA10LZBR12SUL Brackets)

UL Listed Maglocks provide a standards-compliant locking solution for retail, healthcare, financial, education or storage facilities. Our electromagnetic locks provide a reliable, durable solution for authorized individuals or doorways leading to an emergency exit. Common applications include access control or egress doors using a sensor or a switch to release the locking device. UL Listed Maglocks can be used on hollow metal, wood, aluminum, glass, and composite door materials and are available in surface mount single or double door configurations. Additionally, the adjustable zero to 90 second relock time delay and the bonding status sensor allow configuration of the settings as needed.

Features:

• User-Configurable: Adjustable zero to 90 second relock time delay
• Enhanced Access Control / Monitoring: Lock (bond) status sensor with visible LED offers either normally open (NO) or normally closed (NC) output configuration
• UL 294 Listed: Models are rated for access control systems to 500 and 1,000 lb static force, respectively and must be used with a UL Listed power supply
• Anti-Tampering: Models include a security screw on the front face blocks access to the bottom of the electromagnetic lock preventing tampering or dismounting

Specifications:

• 10MAGLOCK3UL:
• Door Configuration: Single, surface mount
• Holding Force: 600 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw: .50 A @ 12 VDC, .25 A @ 24 VDC
• Dimensions: 9.84in x 1.65in x 1.02in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
• 10MAGLOCK6UL:
• Door Configuration: Double, surface mount
• Holding Force: 600 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw: 1 A @ 12 VDC, .50 A @ 24 VDC
• Dimensions: 19.76in x 1.65in x 1.02in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
• 10MAGLOCK1UL:
• Door Configuration: Single, surface mount
• Holding Force: 1200 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw: .50 A @ 12 VDC, .30 mA @ 24 VDC
• Dimensions: 10.47in x 2.87in x 1.58in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
• 10MAGLOCK5UL:
• Door Configuration: Double, surface mount
• Holding Force: 1200 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw: 1 A @ 12 VDC, .60 A @ 24 VDC
• Dimensions: 20.94in x 2.87in x 1.58in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
