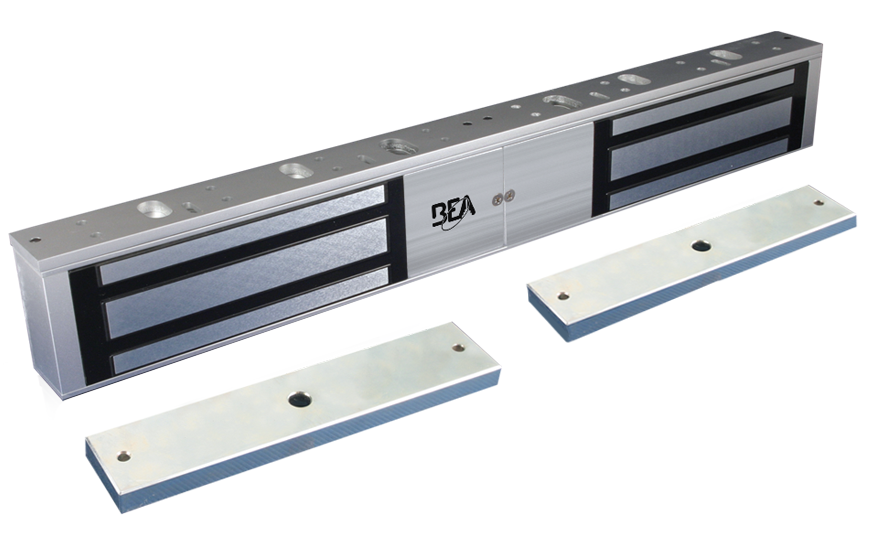

BEA 10MAGLOCK6UL (BEFORE SEPT 2023) 600lbs Double Maglock 12/24VDC, LED, UL Listed, 2 Brackets Required

BEA Incorporated 10MAGLOCK6UL (Before Sept 2023) is a robust double maglock designed to provide superior security for various applications, including retail, healthcare, and banking environments. With a holding force of 600 lbs, this UL Listed maglock ensures compliance with stringent safety standards, making it an ideal choice for high-security facilities. Operating on a versatile 12/24 VDC input, the 10MAGLOCK6UL features an adjustable relock time delay ranging from 0 to 90 seconds, allowing for customized security protocols. The lock status sensor, equipped with visible LED indicators, provides real-time monitoring of the lock's status, enhancing operational efficiency. Constructed with anodized aluminum housing, this maglock is built to withstand the rigors of daily use while maintaining a sleek appearance. Its dimensions of 19.76 in x 1.85 in x 1.02 in make it suitable for surface mounting on double doors, and various mounting plate and bracket options are available to facilitate installation. Additionally, the lock status sensor can be configured for normally open (NO) or normally closed (NC) outputs, providing flexibility for integration into existing access control systems. Choose the BEA Incorporated 10MAGLOCK6UL for a reliable and efficient locking solution that meets the needs of modern security applications.

600lbs Double Maglock 12/24VDC, LED, UL Listed (Before Sept 2023 Uses 2 BEA10LZBRMAG3UL Brackets)

BEA UL Listed Maglocks provide a standards-compliant locking solution for retail, healthcare, banking and other high security facilities that require UL Listed security products. UL Listed Maglocks can be used on hollow metal, wood, aluminum, glass and composite door materials. The maglocks are available in surface mount Single or Double door configurations, with holding force of 600 or 1,200 lbs. These locks include adjustable 0-90 second re-lock time delay and a lock status sensor with visible LED.

Features:

• UL Listed
• Adjustable 0-90 sec relock time delay
• Available in 600 or 1,200 lb holding forces
• Available in Single or Double surface mount models
• Lock status sensor with visible LED
• Lock status sensor offers either normally open (NO) or normally closed (NC) output configurations
• Input voltage of 12/24 VDC
• Variety of mounting plate and bracket hardware available
• Available in access control packages with sensor logic module, actuator, power supply and maglock

Specifications:

• 10MAGLOCK3UL
• Door Configuration: Single, surface mount
• Holding Force: 600 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw:
• .50 A @ 12 VDC
• .25 A @ 24 VDC
• Dimensions: 9.84 in x 1.85 in x 1.02 in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
• 10MAGLOCK6UL
• Door Configuration: Double, surface mount
• Holding Force: 600 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw:
• 1 A @ 12 VDC
• .50 A @ 24 VDC
• Dimensions: 19.76 in x 1.85 in x 1.02 in
• Material:
• Relock Time Delay:
• Sensor:
• Output Relay:
• 10MAGLOCK6
• Door Configuration: Double, surface mount
• Holding Force: 600 lbs
• Input Voltage: 12/24 VDC
• Current Draw:
• .83 A @ 12 VDC
• .42 A @ 24 VDC
• Dimensions: 19.76 in x 1.85 in x 1.02 in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
• 10MAGLOCK1UL
• Door Configuration: Single, surface mount
• Holding Force: 1200 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw:
• .50 A @ 12 VDC
• .25 mA @ 24 VDC
• Dimensions: 10.74 in x 2.91 in x 1.58 in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay:Up to 1 A @ 24 VDC
• 10MAGLOCK5UL
• Door Configuration: Double, surface mount
• Holding Force: 1200 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw:
• 1.03 A @ 12 VDC
• .52 A @ 24 VDC
• Dimensions: 20.94 in x 2.91 in x 1.58 in
• Material: Anodized Aluminum housing
• Relock Time Delay: 0-90 s
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC

Resources

• Cut Sheet
