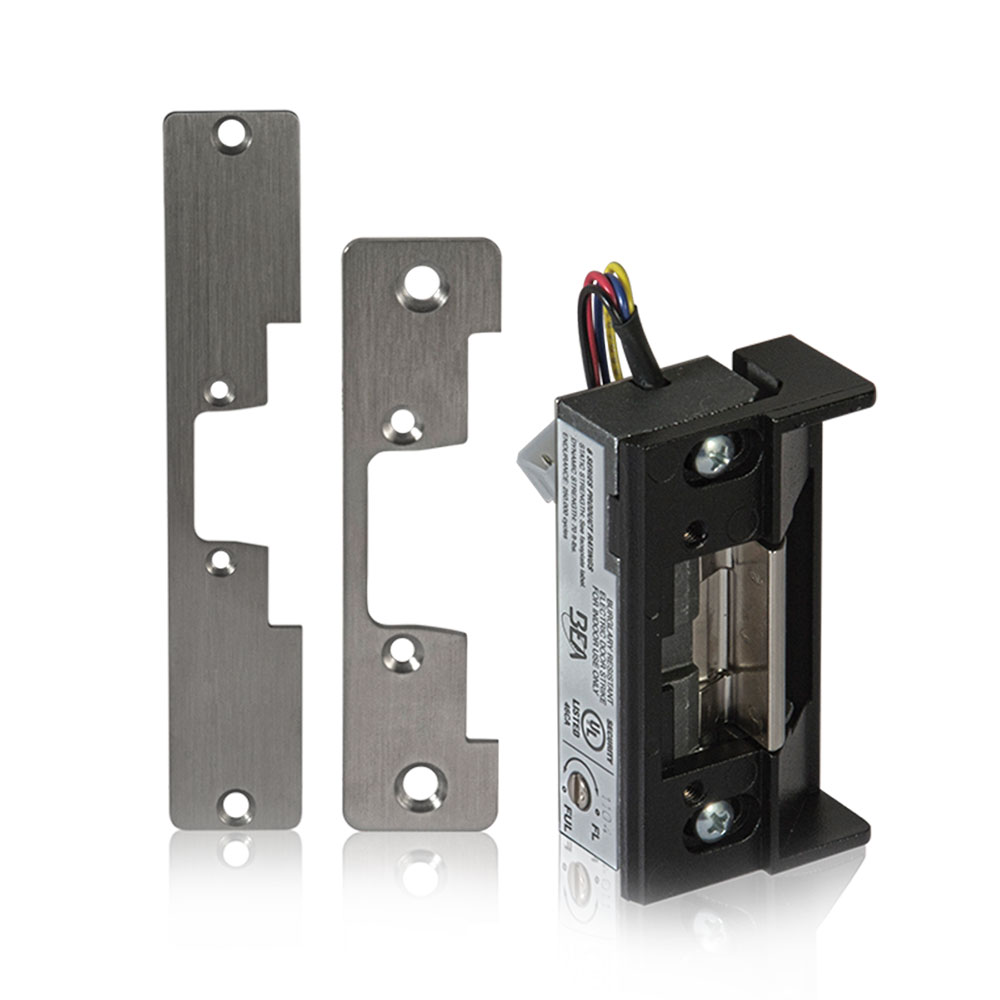

BEA 10STRIKECU Electric Strike

BEA 10STRIKECU Electric Strike delivers robust security and controlled access for both egress and ingress applications. This UL/ULC Listed Universal Cylindrical Electric Strike operates on 12/24 VDC/VAC and is designed for continuous or intermittent duty, providing options for silent or buzz alerts. The strike includes three interchangeable faceplates for seamless installation across aluminum, hollow metal, and wooden door frames. Engineered with versatility in mind, the BEA Electric Strike features modular faceplate designs adaptable to various frame types and cutouts. It supports a fail-safe or fail-secure lock mode, ensuring flexibility to meet different security needs. With the capability to accommodate 1/2" or 5/8" latch projections and up to 1/4" horizontal adjustment, it is ideal for narrow stile aluminum frames. This unit boasts a static strength rating of up to 1500 lbs., ensuring durability even under forced entry attempts. The rugged brushed-stainless steel design not only enhances its security features but also complements existing door hardware. Tested for over one million cycles of operation, the BEA 10STRIKECU is built to withstand the demands of commercial environments while remaining ADA compliant. Trust in its long-lasting performance, backed by a 5-year limited warranty.

Electric Strike

UL / ULC Listed Universal Cylindrical Electric Strike, 12/24 VDC/VAC, Continuous / Intermittent Duty, Silent or Buzz, Includes 3 Faceplates (Aluminum , Hollow Metal and Wood Frame Installations)3

The Universal Cylindrical Strike Provides Controlled Access and Security for Egress and Ingress Applications Where Code Compliance and Safety are Paramount. This Strike is UL294 and UL1034 Listed

The Universal Cylindrical Strike combines the three most used lock types associated with hollow metal, aluminum and wooden door frames.

BEA's Electric Strikes series offers the most common solutions required for request-to-exit applications. BEA's Universal Cylindrical Electric Strike has been independently tested for over 1 million cycles of operation. The Rim Exit Strike from BEA is designed to operate specifically with rim exit devices

Universal Cylindrical Strikes:

• Modular faceplate designs for a variety of frame types and cut outs
• Field selectable lock mode and voltage input all in one strike — fail "unlocked" mode requires DC voltage.
• Accepts 1/2" or 5/8" latch projection with up to 1/4" horizontal adjustment available. (perfect for narrow stile aluminum frames)
• UL/ULC Listed for up to 1500 lbs. of static strength (tested on plates for hollow metal and aluminum applications)
• UL/ULC 1034, Burglary-Resistant Listed

Rim Exit Electric Strikes:

• Conventional keeper design promotes even-load distribution in the event of a forced entry
• UL/CUL listed for up to 1500 lbs. of static strength
• Reinforced housing reduces twisting in the case of imperfect frames
• Rugged brushed-stainless steel (32D) design provides a complementary finish to existing door hardware
• Accommodates hollow metal, narrowline aluminum and wooden door frames

Resources

• 2022 BEA Catalog
