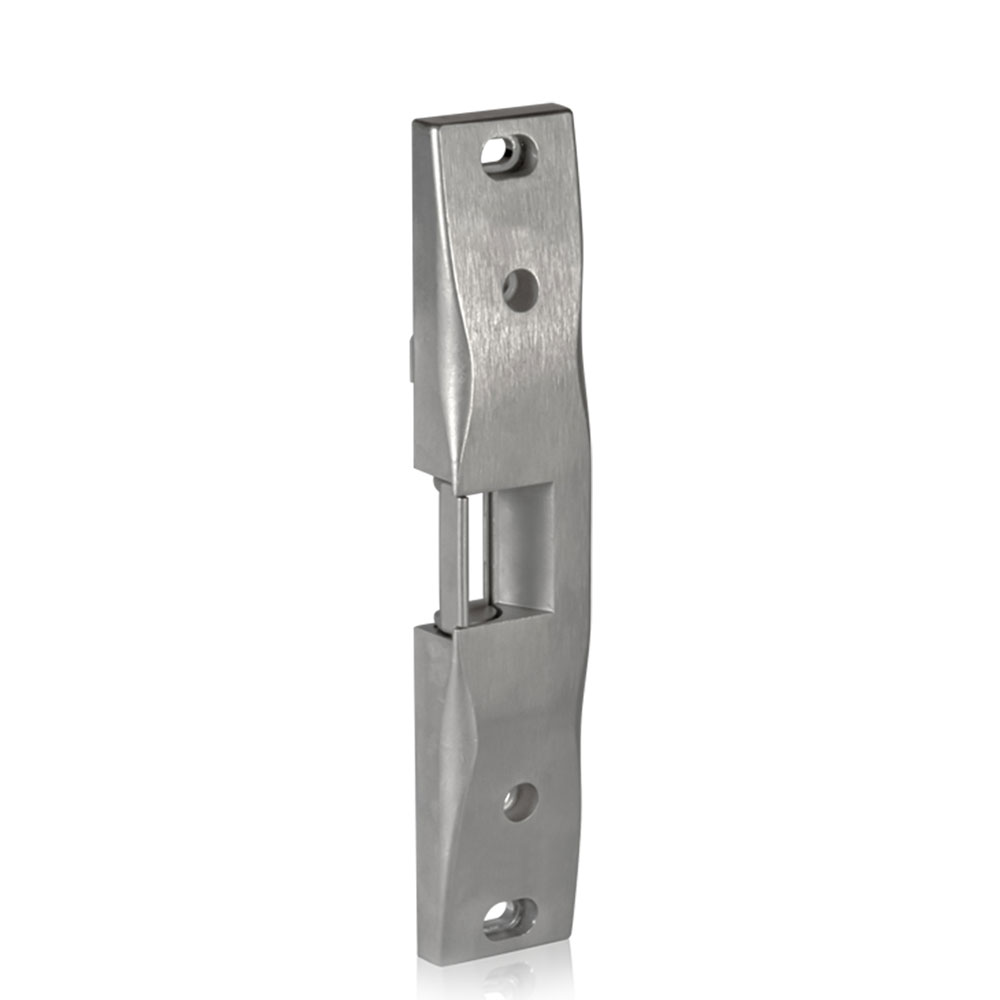

BEA 10STRIKERE Electric Strike

BEA 10STRIKERE Electric Strike delivers exceptional performance with its UL/ULC Listed design, specifically crafted for rim exit devices. This surface-mounted electric strike eliminates the need for invasive modifications to door frames, making installation straightforward and efficient. Designed for continuous or intermittent duty, it operates seamlessly with a range of voltages, including 12/24 VAC/VDC and 11 VAC/16 VDC. The BEA 10STRIKERE accommodates the most commonly used lock types for hollow metal, aluminum, and wooden door frames, ensuring versatility across various installations. Independently tested for over one million cycles, this electric strike guarantees durability and reliability. With a robust construction that supports up to 1500 lbs. of static strength, it features a conventional keeper design that promotes even-load distribution during attempted forced entry. Its rugged brushed-stainless steel finish not only enhances aesthetics but also blends seamlessly with existing hardware. The electric strike is designed with field-selectable lock modes, ensuring flexibility in various applications. Ideal for commercial environments, the BEA 10STRIKERE Electric Strike combines safety, functionality, and durability in one reliable solution, making it a top choice for building professionals and discerning homeowners alike.

Electric Strike

UL / ULC Listed Surface Mounted Electric Strike for Rim Exit Device, Continuous / Intermittent Duty, Silent or Buzz, 12/24 VAC / VDC and 11 VAC / 16VDC

The Rim Exit Strike is Designed Specifically for Rim Exit Devices. This Strike is Completely Surface Mounted, Which Eliminates the Need to cut Into the Door Frame

The Universal Cylindrical Strike combines the three most used lock types associated with hollow metal, aluminum and wooden door frames.

BEA's Electric Strikes series offers the most common solutions required for request-to-exit applications. BEA's Universal Cylindrical Electric Strike has been independently tested for over 1 million cycles of operation. The Rim Exit Strike from BEA is designed to operate specifically with rim exit devices

Universal Cylindrical Strikes:

• Modular faceplate designs for a variety of frame types and cut outs
• Field selectable lock mode and voltage input all in one strike — fail "unlocked" mode requires DC voltage.
• Accepts 1/2" or 5/8" latch projection with up to 1/4" horizontal adjustment available. (perfect for narrow stile aluminum frames)
• UL/ULC Listed for up to 1500 lbs. of static strength (tested on plates for hollow metal and aluminum applications)
• UL/ULC 1034, Burglary-Resistant Listed

Rim Exit Electric Strikes:

• Conventional keeper design promotes even-load distribution in the event of a forced entry
• UL/CUL listed for up to 1500 lbs. of static strength
• Reinforced housing reduces twisting in the case of imperfect frames
• Rugged brushed-stainless steel (32D) design provides a complementary finish to existing door hardware
• Accommodates hollow metal, narrowline aluminum and wooden door frames
