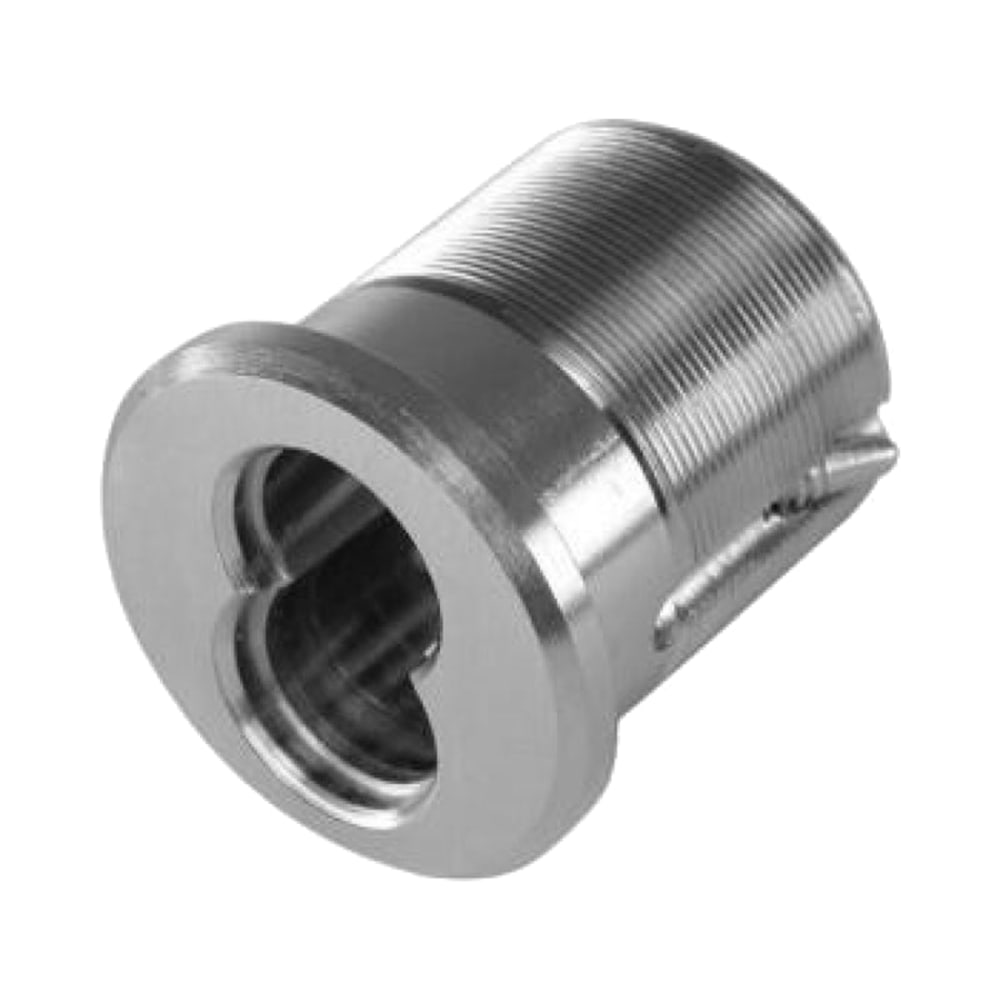

BEST 1E7430C258RP3626 1-7/8 Inch Mortise Cylinder offers a reliable solution for standard mortise applications, designed to meet the needs of both commercial settings and knowledgeable homeowners. This 7-pin SFIC prep less core cylinder features a C258 Clover Cam and is compatible with BEST's 30/40/45H deadbolts as well as the 40/45H C/CHB interior units. Crafted from durable brass or bronze bar stock, the cylinder showcases a sleek satin chrome finish (626/US26D) that not only enhances aesthetics but also provides long-lasting performance. Security is paramount, and this model includes a set screw that mounts diagonally in the cylinder wall, ensuring a secure fit within the housing. The cylinder's design allows for masterkeying into any existing BEST system, offering flexibility for various locking needs. With a length of 1-7/8 inches, it accommodates door thicknesses ranging from 1-7/8 inches to 2-1/2 inches, making it versatile for numerous applications. Supported by a 3-year limited warranty, the BEST 1E7430C258RP3626 is an excellent choice for those seeking dependable and stylish door hardware solutions.
1-7/8 Inch Mortise Cylinder
Standard 1-7/8" Mortise Cylinder, 7-Pin SFIC Prep Less Core, C258 Clover Cam, For Use With 30/40/45H Deadbolt, 40/45H C/CHB Interior, Satin Chrome Finish
Standard mortise applications require use of BEST's 1E series cylinders. BEST cylinders are machined from brass or bronze bar stock and are available in a variety of finishes. Additional security is provided by a set screw that mounts diagonally in the cylinder wall and when tightened, holds the cylinder securely in the housing. BEST mortise cylinders feature the BEST interchangeable core and may be masterkeyed into any existing BEST system.
BEST cylinders are machined from brass or bronze bar stock and are available in a variety of finishes.
Baa Qualified: Yes
Base Material: Brass or Bronze
Cam Number: C258
Cam Type: Clover
Commercial Residential: Commercial
Country of origin: USA
Cylinder Length: 1-7/8"
Cylinder Type: 7-Pin SFIC Prep Less Core
Door Thickness: 1-7/8" to 2-1/2"
Finish: 626/US26D
Finish Family: Matte Silver
For Use With: BEST 30/40/45H Deadbolt, 40/45H C/CHB Interior
Function: Standard
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Options: Standard 1E-R2/1E-R5 Ring Package
Origin: USA
Pack Height: 1.75"
Pack Height 2: 3.25"
Pack Length: 2.88"
Pack Length 2: 9.5"
Pack Qty: 1
Pack Volume: 8.8 in³
Pack Volume 2: 254.72 in³
Pack Width: 1.75"
Pack Width 2: 8.25"
Pins: 7
Series: E Series Cylinders
Ship Weight: 0.35 lbs.
Subtype: Mortise Cylinder
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 20
