Best 45H0-L-17H-626 RH Privacy Mortise Lock with Deadbolt, Gull Wing Lever, Satin Chrome, Right Hand

Best Access Solutions Inc 45H0-L-17H-626 RH Privacy Mortise Lock with Deadbolt offers an exceptional blend of security, durability, and ease of use, making it an ideal choice for high-traffic environments. The robust design features a solid, one-piece stainless steel latch that increases surface contact with the strike by 50%, enhancing the lock’s strength. Engineered for reliability, this lock includes a precision-crafted latch that minimizes wear while extending cycle life. Installation is straightforward thanks to a reversible latch that can be adjusted without opening the case, and self-aligning trim ensures a quick setup. The 40H series utilizes a roller bearing hub mechanism for smooth operation, further backed by an industry-leading limited lifetime warranty. Constructed from 0.095" cold rolled steel with a corrosion-resistant finish, this lock is built to withstand the test of time. It offers flexibility with a universal, multi-function lock case designed for easy conversions, making it suitable for various applications. Certified to ANSI/BHMA A156.13 Grade 1 standards and compliant with ADA accessibility codes, the Best 45H0-L-17H-626 RH also features a satin chrome finish that harmonizes with diverse architectural styles. Elevate your security with a lock that combines performance and aesthetics seamlessly.

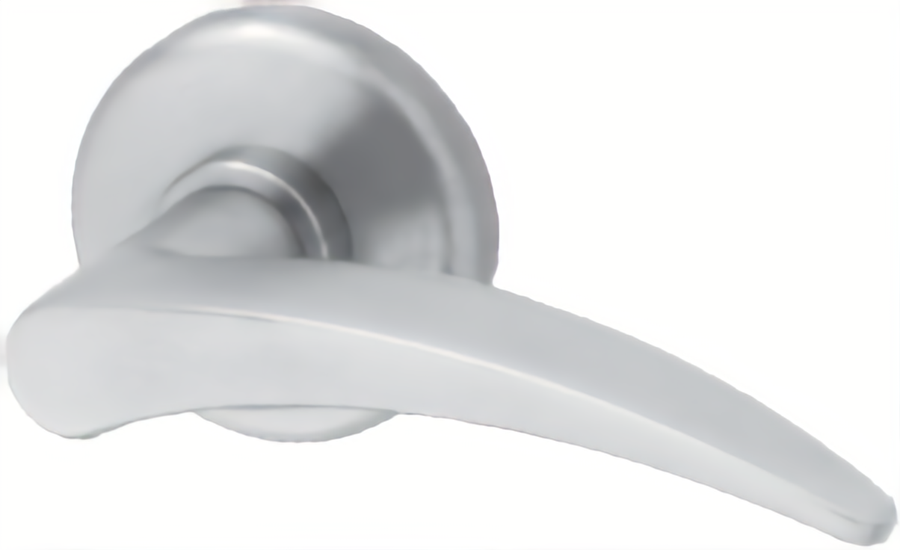

Privacy Mortise Lock with Deadbolt, Gull Wing Lever with H Rose (2-3/4in Diameter), Right Hand, 626/US26D Satin Chrome

BEST’s 40H series mortise locks and deadbolts deliver exceptional strength, security, and durability. Our robust design Features and precision-engineered components make the 40H mortise lock series ideal for high traffic applications. Backed by an industry-leading limited lifetime mechanical warranty, the 40H series delivers security you can depend on.

Features:

• Superior strength and security: We designed the 40H series with a solid, one-piece stainless steel latch, providing 50% more surface contact with the strike to make the lock stronger and more secure.
• Enhanced durability: The precision-engineered curve on the latch enhances cycle life while reducing wear to the strike.
• Easy to install: The reversible latch rotates 180 degrees, making it easy to change handing without opening the 40H series case, and self-aligning trim makes installation fast, easy, and accurate.
• Reliable performance: With a roller bearing hub mechanism, 40H series locks deliver smooth, wear resistant operation. We’re so confident in our 40H lock series that we provide a limited lifetime warranty. BEST 40H series locks are designed and manufactured to last.
• Premium materials: The 40H series case, cover, and armored front are manufactured from 0.095" cold rolled steel with a corrosion-resistant coating, providing long-lasting strength.
• Varied aesthetics: A wide variety of trims and lever styles make the 40H series visually compatible with different architectural styles and aesthetics.
• Simple to use: With Features including a bi-directional lever for ADA-friendly operation, 40H locks are easy to use.
• Greater flexibility: The 40H series is flexible and stock friendly, designed for simple field conversion and handing changes, and featuring a universal, multi-function lock case.

Specifications:

• Certifications:
• ANSI/BHMA A156.13 Series1000 — Grade 1.
• ANSI A117.1 section 404.2.6 Accessibility Code (ADA compliant).
• UL listed for three hours on A label doors.
• Florida Building Code (FBC) listed.
• Miami-Dade County Code compliant for WS option.
• Auxiliary Bolt: Stainless steel; non-handed.
• Latch: Solid stainless steel 3/4" throw; oil-impregnated for anti-friction; reversible without opening case.
• Strike:
• S1 Standard: 4-7/8" x 1-1/4" x 3/32" non-handed, curved lip.
• S5 Latchbolt-only: 4-7/8" x 1-1/4" x 3/32" handed, curved lip.
• S6 Latchbolt/Deadbolt: 4-7/8" x 1-1/4" x 3/32" handed, curved lip.
• Case: 0.095" cold rolled steel, zinc dichromate plated for corrosion protection; 5-7/8" x 7/8" x 4-1/16".
• Door Thickness: 1-3/4" standard; up to 5" available.
• Faceplate: Stainless steel, brass, or bronze; 8" x 1-1/4" x 1/16" automatically adjusts to proper bevel during installation.
• Door Prep: ANSI Type 86 cutout.
• Backset: 2-3/4" standard.
• Warranties: Limited lifetime mechanical, Three-year finish (613 carries no finish warranty).

Functions:

• Single Keyed:
• Latch: A, AT, D, R.
• Deadbolt: AB, B, BA, BW, T, TA, TD.
• Holdback: RHB.
• Hotel: H, HJ.
• Deadlock: AD, YD.
• Deadlock-Classroom: RD.
• Double Keyed:
• Latch: C, INL, W.
• Deadbolt: G, IND, S, INA.
• Holdback: CHB.
• Deadlock: WD.
• Keyless:
• Passage: N.
• Privacy (Latch): LT.
• Privacy (Deadbolt): L.
• Exit: NX.
• Single Dummy: 1DT.
• Double Dummy: 2DT.
• Universal Functions:
• Latch: UNR (A, AT, D, N, NX, R).
• Deadbolt: UNT (L, T).
• Deadbolt: UNAB (AB, TA, TD).

Finishes:

• 605/US3 - Bright Brass
• 606/US4 - Satin Brass
• 611/US9 - Bright Bronze
• 612/US10 - Satin Bronze
• 613/US10B - Oxidized Satin Bronze, Oil Rubbed
• 618/US14 - Bright Nickel Plated
• 619/US15 - Satin Nickel Plated
• 622/US19 - Flat Black
• 625/US26 - Bright Chromium Plated
• 626/US26D - Satin Chromium Plated
• 629/US32 - Polished Stainless Steel
• 630/US32D - Satin Stainless Steel
• 690/US20 - Dark Bronze
• 626AM - Satin Chrome Plated With UltraShield™ antimicrobial protected coating
