Best 45H01DT14H630 Grade 1 Single Dummy TrimBEST 45H01DT14H630 Grade 1 Single Dummy Trim combines advanced engineering with exceptional reliability, making it an ideal choice for commercial and industrial applications. This Grade 1 Single Dummy Mortise Lock features a sleek satin stainless steel finish, offering both durability and aesthetic appeal. With its field-reversible design, adjustments can be made easily without the need to open the lock case, streamlining installation and configuration. Constructed from premium materials, including a solid one-piece stainless steel latch, the 45H series provides 50% more surface contact with the strike, enhancing strength and security. The roller bearing hub mechanism ensures smooth, wear-resistant operation, while the corrosion-resistant coating protects against environmental wear. This lock's precision-engineered components enhance durability by reducing wear to the strike, prolonging its lifecycle. Designed for high-traffic areas, the 45H series delivers reliable performance and free egress without compromising security. It is visually versatile, compatible with various architectural styles thanks to its array of lever designs, including the elegant 14 Lever. With a limited lifetime warranty and UL listing for safety, the BEST 45H01DT14H630 ensures peace of mind while maintaining a professional appearance in any setting.
Grade 1 Single Dummy Trim

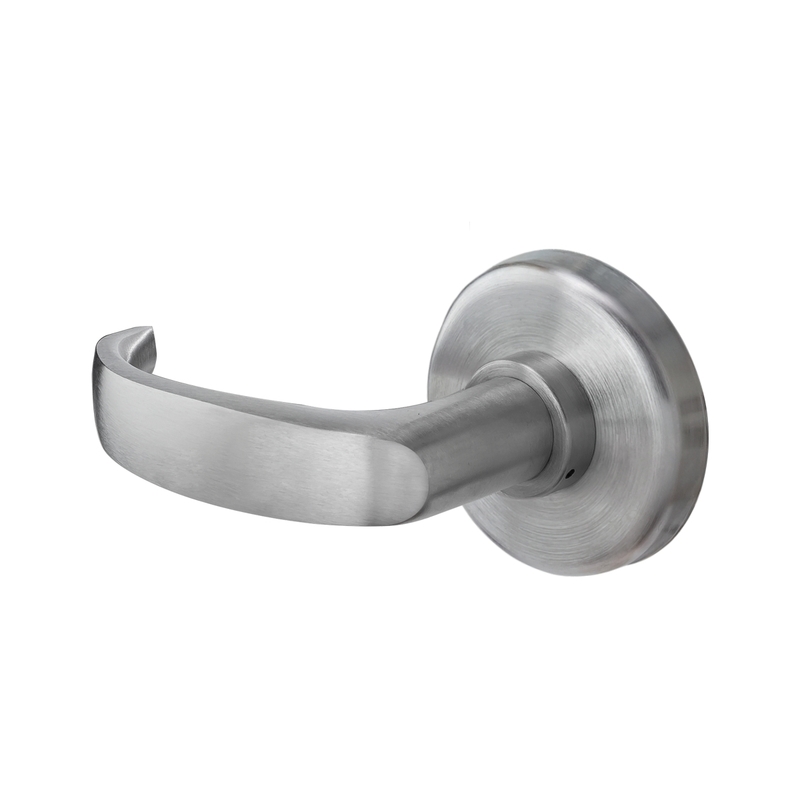

Grade 1 Single Dummy Mortise Lock, 14 Lever, H Rose, Non-Keyed, Satin Stainless Steel Finish, Field Reversible
The BEST 45H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 45H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 45H Series remains a low maintenance product that is easy to reconfigure and install.
Mortise locks and deadbolts delivering exceptional strength, security, and durability.
With precision-engineered components and robust design features, BEST's 45H mortise lock series is ideal for high traffic applications. Installation is quicker and easier thanks to carefully designed features that simplify handing changes, alignment, and assembly.
- Superior strength and security. A solid one-piece stainless steel latch that provides 50% more surface contact with the strike to make the lock stronger and more secure.
- Reliable performance. The 45H series locks deliver smooth, wear-resistant operation via a roller bearing hub mechanism,
- Premium materials. Featuring a case, cover, and armored front manufactured from 0.095" cold rolled steel with a corrosion-resistant coating.
- Varied aesthetics. The 45H series is visually compatible with different architectural styles and aesthetics due to its wide variety of lever styles and trims.
- Enhanced durability. The precision-engineered curve on the latch reduces wear to the strike and enhances cycle life.
- Easy to install. The reversible latch rotates 180 degrees, enabling easy handing changes without opening the 45H series case. The self-aligning trim makes installation easy, fast and accurate.
Attributes
Baa Qualified: Yes
Base Material: Stainless Steel
Box Depth Fraction: 11-1/2"
Box Height Fraction: 3"
Box Width Fraction: 9-3/4"
Burglar Rated: No
Case Dimensions: 5-7/8" x 4-1/16"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 1DT-Single Dummy Trim
Function Family: Dummy
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Knob: Lever
Lever Knob Design Name: 14
Leverknob Design: 14 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: Limited Lifetime Warranty
Manufacturer Function: Single Dummy
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 3"
Pack Height 2: 12.25"
Pack Length: 11.5"
Pack Length 2: 12.75"
Pack Qty: 1
Pack Volume: 336.38 in³
Pack Volume 2: 1639.97 in³
Pack Width: 9.75"
Pack Width 2: 10.5"
Pocket Dimensions: 6-5/8" x 4-1/2"
Product Height: 3"
Product Length: 11.5"
Product Width: 9.75"
Projection: 2-15/16"
Rose Escutcheon: Rose
Roseescutcheon Design: H Rose
Roseescutcheon Dimensions: 2-3/4"
Screws: Wood/Machine Screws
Series: 45H Series Mortise Locks
Ship Weight: 6.4 lbs.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.13, Series 1000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
