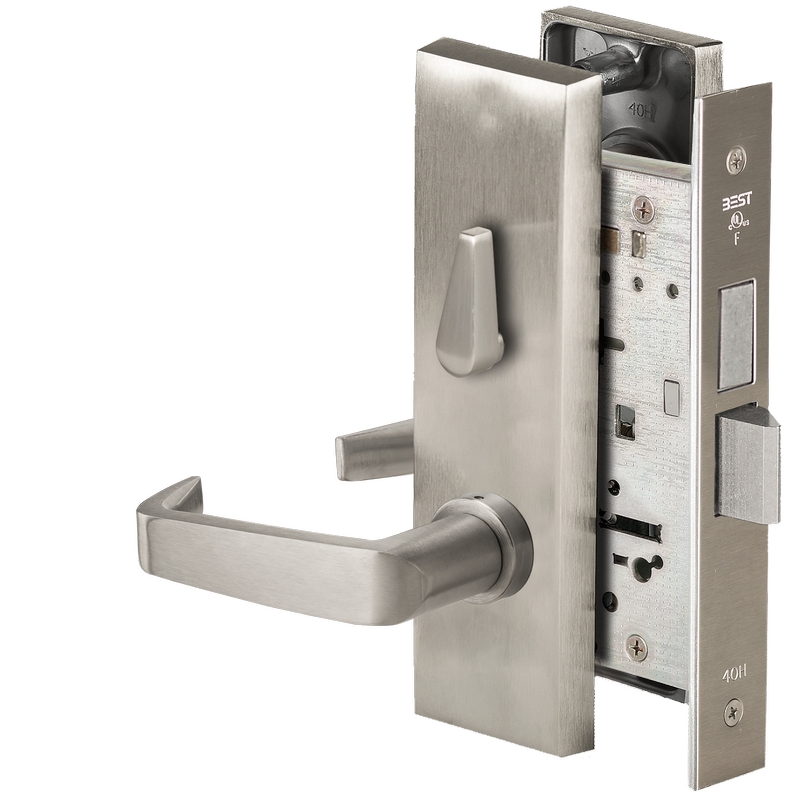

BEST 45H0L15M619 Grade 1 Privacy Lock offers exceptional security and reliability for commercial and industrial settings. This Grade 1 privacy mortise lock features a sleek satin nickel finish and a user-friendly, field-reversible design. Engineered for high traffic applications, the 45H series delivers robust performance thanks to its one-piece stainless steel latch, which enhances strength by providing 50% more surface contact with the strike. Installation is made easy with precision-engineered components that simplify handing changes and alignment. The durable construction includes a case and cover made from 0.095" cold rolled steel, ensuring corrosion resistance and longevity. The 15 lever design not only meets aesthetic needs but also accommodates various architectural styles, making it a versatile choice for any project. With a bolt projection of 3/4" and a self-aligning trim, this lock ensures smooth, wear-resistant operation through its roller bearing hub mechanism. It is also UL listed and fire rated for up to three hours, offering peace of mind in safety standards. Backed by a limited lifetime warranty, the BEST 45H0L15M619 is the ideal choice for those prioritizing strength, security, and low maintenance in their locking solutions.
Grade 1 Privacy Mortise Lock, 15 Lever, M Escutcheon, Non-Keyed, Satin Nickel Finish, Field Reversible
The BEST 45H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 45H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 45H Series remains a low maintenance product that is easy to reconfigure and install.
Mortise locks and deadbolts delivering exceptional strength, security, and durability.
With precision-engineered components and robust design features, BEST's 45H mortise lock series is ideal for high traffic applications. Installation is quicker and easier thanks to carefully designed features that simplify handing changes, alignment, and assembly.
Attributes
Ansi: F19
Ansi Function: F19 - Privacy, Bedroom or Bath
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 3/4" Latch
Box Depth Fraction: 11-1/2"
Box Height Fraction: 3"
Box Width Fraction: 9-3/4"
Burglar Rated: No
Case Dimensions: 5-7/8" x 4-1/16"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 619/US15
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: L-Privacy
Function Family: Privacy
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Knob: Lever
Lever Knob Design Name: 15
Leverknob Design: 15 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: Limited Lifetime Warranty
Lock Face Size: 8" x 1-1/4"
Manufacturer Function: Privacy
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 3"
Pack Height 2: 12.25"
Pack Length: 11.5"
Pack Length 2: 12.75"
Pack Qty: 1
Pack Volume: 336.38 in³
Pack Volume 2: 1639.97 in³
Pack Width: 9.75"
Pack Width 2: 10.5"
Pocket Dimensions: 6-5/8" x 4-1/4"
Product Height: 3"
Product Length: 11.5"
Product Width: 9.75"
Projection: 2-15/16"
Rose Escutcheon: Escutcheon
Roseescutcheon Design: M Escutcheon
Roseescutcheon Dimensions: 2-1/8" x 8"
Screws: Wood/Machine Screws
Series: 45H Series Mortise Locks
Ship Weight: 6.4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 45H
Std Latch Type: Faceplate
Std Strike Height: 4-7/8"
Std Strike Number: 40HST1
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.13, Series 1000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
