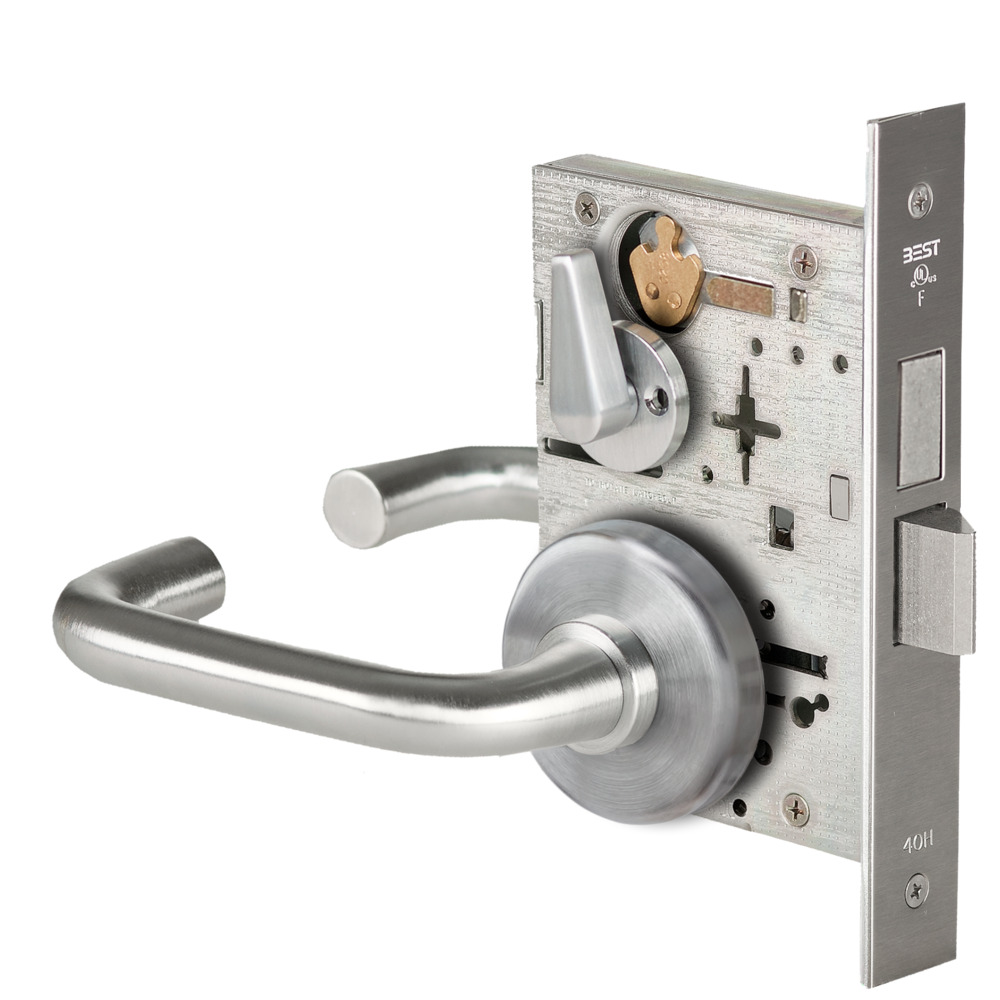

BEST 45H0L3H626AM Grade 1 Privacy Lock offers a robust solution for securing spaces that require both privacy and reliability. This Grade 1 Mortise Lock features a three-lever design with a stylish H Rose and a non-keyed configuration, making it ideal for commercial applications such as offices and restrooms. The satin chrome anti-microbial finish not only enhances its aesthetic appeal but also supports hygiene in high-traffic areas. Engineered for strength, the 45H series boasts a solid one-piece stainless steel latch that provides 50% more surface contact with the strike, ensuring superior security. The lock's roller bearing hub mechanism guarantees smooth, wear-resistant operation. Crafted from 0.095" cold rolled steel with a corrosion-resistant coating, this lock withstands daily use and environmental stress. Installation is straightforward, with a field-reversible latch allowing easy handing changes without opening the case. This lock is compatible with various architectural styles, thanks to its diverse lever designs. Additionally, the 45H series is UL listed and fire rated for up to three hours, ensuring safety without compromising access. With a limited lifetime warranty, the BEST 45H0L3H626AM is an excellent choice for those seeking a durable, secure, and visually appealing privacy lock.
Grade 1 Privacy Mortise Lock, 3 Lever, H Rose, Non-Keyed, Satin Chrome Anti-Microbial Finish, Field Reversible
The BEST 45H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 45H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 45H Series remains a low maintenance product that is easy to reconfigure and install.
Mortise locks and deadbolts delivering exceptional strength, security, and durability.
With precision-engineered components and robust design features, BEST's 45H mortise lock series is ideal for high traffic applications. Installation is quicker and easier thanks to carefully designed features that simplify handing changes, alignment, and assembly.
Attributes
Ansi: F19
Ansi Function: F19 - Privacy, Bedroom or Bath
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 3/4" Latch
Box Depth Fraction: 11-1/2"
Box Height Fraction: 3"
Box Width Fraction: 9-3/4"
Burglar Rated: No
Case Dimensions: 5-7/8" x 4-1/16"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 626AM/US26DAM
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: L-Privacy
Function Family: Privacy
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Knob: Lever
Lever Knob Design Name: 3
Leverknob Design: 3 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: Limited Lifetime Warranty
Lock Face Size: 8" x 1-1/4"
Manufacturer Function: Privacy
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 3"
Pack Height 2: 12.25"
Pack Length: 11.5"
Pack Length 2: 12.75"
Pack Qty: 1
Pack Volume: 336.38 in³
Pack Volume 2: 1639.97 in³
Pack Width: 9.75"
Pack Width 2: 10.5"
Pocket Dimensions: 6-5/8" x 4-1/4"
Product Height: 3"
Product Length: 11.5"
Product Width: 9.75"
Projection: 2-15/16"
Rose Escutcheon: Rose
Roseescutcheon Design: H Rose
Roseescutcheon Dimensions: 2-3/4"
Screws: Wood/Machine Screws
Series: 45H Series Mortise Locks
Ship Weight: 6.4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 45H
Std Latch Type: Faceplate
Std Strike Height: 4-7/8"
Std Strike Number: 40HST1
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.13, Series 1000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
