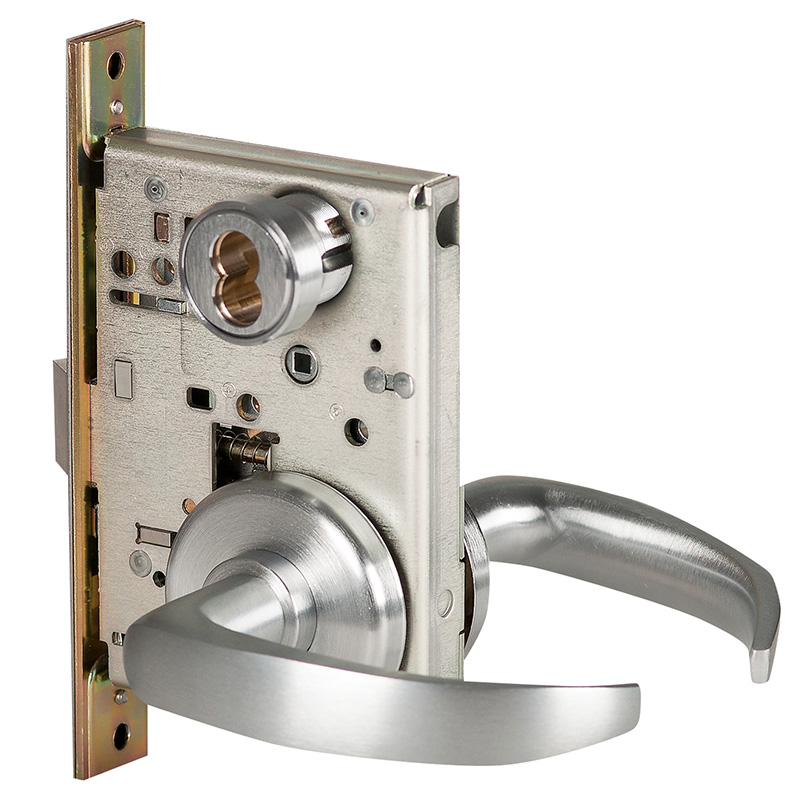

The BEST 40H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 40H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 40H Series remains a low maintenance product that is easy to reconfigure and install.
Attributes
Ansi: F04
Ansi Function: F04 - Entry/Office
Baa Qualified: Yes
Base Material: Stainless Steel
Bolt Projection: 3/4" Latch
Bolt Protection: 3/4" Latch
Box Depth Fraction: 11-1/2"
Box Height Fraction: 3"
Box Width Fraction: 9-3/4"
Burglar Rated: No
Case Dimensions: 5-7/8" x 4-1/16"
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 630/US32D
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: A-Office
Function Family: Entrance/Office
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Installation: Commercial
Lever Knob: Lever
Lever Knob Design: 14 - Lever
Lever Knob Design Name: 14
Leverknob Design: 14 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: Limited Lifetime Warranty
Lock Face Size: 8" x 1-1/4"
Manufacturer Function: Office
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 3"
Pack Height 2: 12.25"
Pack Length: 11.5"
Pack Length 2: 12.75"
Pack Qty: 1
Pack Volume: 336.38 in³
Pack Volume 2: 1639.97 in³
Pack Width: 9.75"
Pack Width 2: 10.5"
Pins: 7
Pocket Dimensions: 6-5/8" x 4-1/4"
Product Height: 3"
Product Length: 11.5"
Product Width: 9.75"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: H - Rose
Roseescutcheon Design: H Rose
Roseescutcheon Dimensions: 2-3/4"
Screws: Combination
Series: 45H Series Mortise Locks
Ship Weight: 6.4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 45H
Std Latch Type: Faceplate
Std Strike Height: 4-7/8"
Std Strike Number: 40HST1
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 40HST1
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.13, Series 1000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
