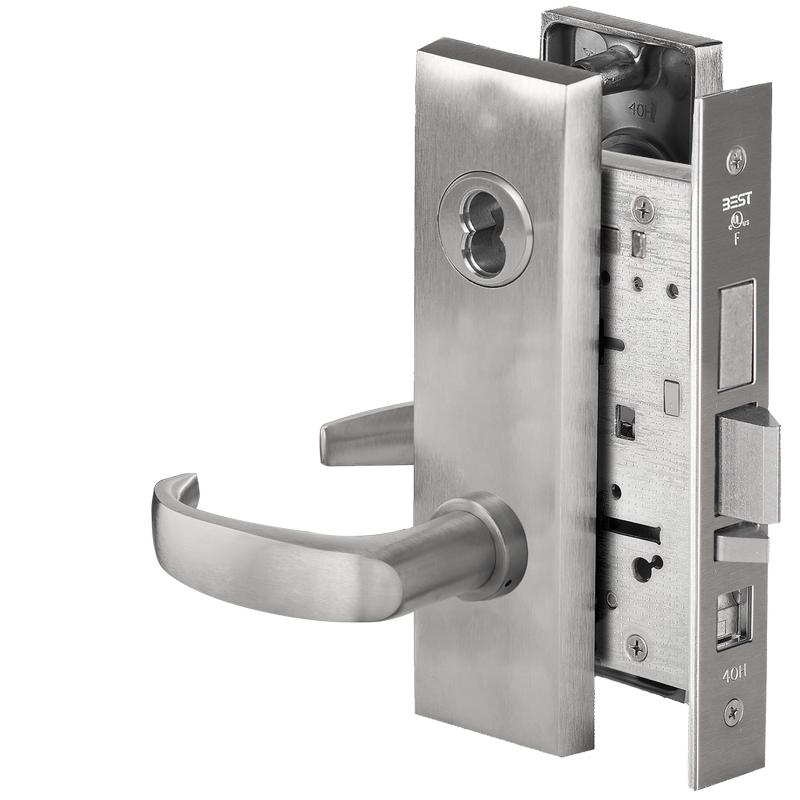

BEST 45H7AB14M626 Grade 1 Office Mortise Lock offers exceptional security and versatility, making it a top choice for commercial and industrial environments. This Grade 1 Mortise Lock features a robust 14 lever design and M escutcheon, ensuring both functionality and style. Engineered with SFIC housing less core, it provides flexibility for keying options while maintaining a sleek satin chrome finish that enhances any door's aesthetic. Designed for durability, the 45H series offers free egress without compromising security, making it ideal for office settings. Its field-reversible handing allows for easy installation and adaptability to various door configurations. With a robust case dimension of 5-7/8" x 4-1/16" and a bolt projection of 3/4", this lock guarantees reliable performance. The lock is UL Listed to ANSI A156.13, Series 1000, ensuring it meets strict safety standards. It is suitable for doors with a thickness of 1-3/4", and its limited lifetime warranty reflects BEST's commitment to quality. The 45H7AB14M626 is not only an effective security solution but also a low-maintenance option that professionals can trust for years to come.
Grade 1 Office Mortise Lock, 14 Lever, M Escutcheon, SFIC Housing Less Core, Satin Chrome Finish, Field Reversible
The BEST 45H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 45H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 45H Series remains a low maintenance product that is easy to reconfigure and install.
Attributes
Ansi: F20
Ansi Function: F20 - Entry/Office
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 3/4" Latch
Box Depth Fraction: 11-1/2"
Box Height Fraction: 3"
Box Width Fraction: 9-3/4"
Burglar Rated: No
Case Dimensions: 5-7/8" x 4-1/16"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 626/US26D
Finish Description: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: AB-Office
Function Family: Entrance/Office
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Knob: Lever
Lever Knob Design Name: 14
Leverknob Design: 14 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: Limited Lifetime Warranty
Lock Face Size: 8" x 1-1/4"
Manufacturer Function: Office
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 3"
Pack Height 2: 12.25"
Pack Length: 11.5"
Pack Length 2: 12.75"
Pack Qty: 1
Pack Volume: 336.375 in³
Pack Volume 2: 1639.96875 in³
Pack Width: 9.75"
Pack Width 2: 10.5"
Pins: 7
Pocket Dimensions: 6-5/8" x 4-1/4"
Product Height: 3"
Product Length: 11.5"
Product Width: 9.75"
Projection: 2-15/16"
Rose Escutcheon: Escutcheon
Roseescutcheon Design: M Escutcheon
Roseescutcheon Dimensions: 2-1/8" x 8"
Screws: Wood/Machine Screws
Series: 45H Series Mortise Locks
Ship Weight: 6.4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 45H
Std Latch Type: Faceplate
Std Strike Height: 4-7/8"
Std Strike Number: 40HST1
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.13, Series 1000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
