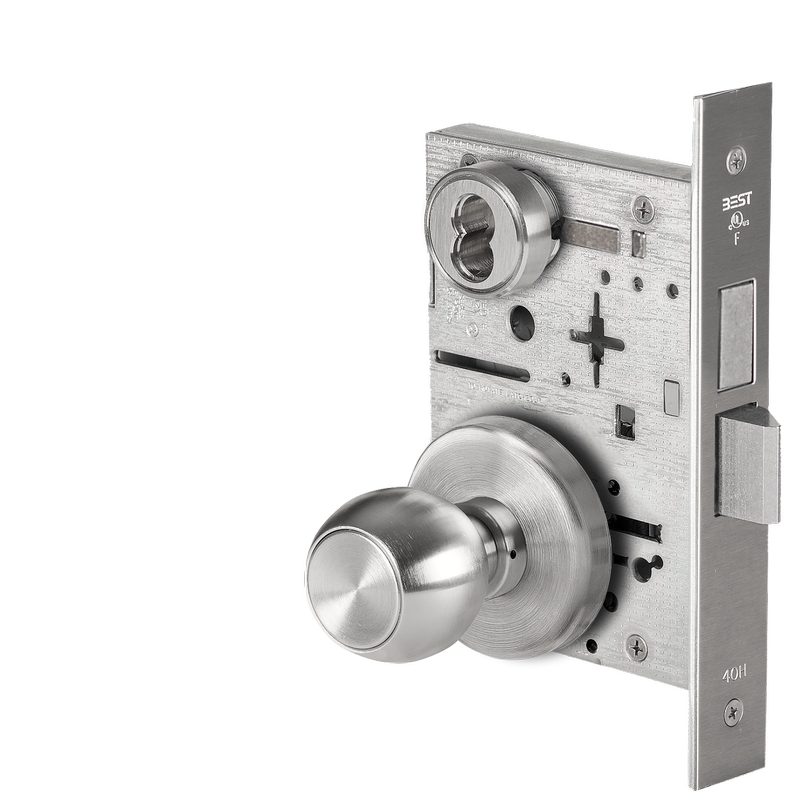

BEST 45H7G4H626 Grade 1 Communicating Lock offers exceptional security and functionality, making it an ideal choice for commercial and industrial applications. This Grade 1 mortise lock features a durable satin chrome finish and a field-reversible design, allowing for easy installation and adaptability to various door configurations. With a solid one-piece stainless steel latch that enhances strength and security, this lock provides 50% more surface contact with the strike, ensuring reliable performance. Designed with high-traffic environments in mind, the 45H series operates smoothly thanks to its roller bearing hub mechanism, which minimizes wear and tear. Constructed from cold-rolled steel with a corrosion-resistant coating, this lock is built to withstand the rigors of everyday use while maintaining its aesthetic appeal. The lock's versatility is further enhanced by a variety of lever styles and trims that complement different architectural designs. Installation is straightforward, thanks to the self-aligning trim and the reversible latch that rotates 180 degrees for easy handing changes. This lock not only meets ANSI F14 standards but also boasts a 3-hour fire rating. With a limited lifetime warranty, the BEST 45H7G4H626 ensures peace of mind and lasting durability.
Grade 1 Communicating Mortise Lock, 4 Knob, H Rose, SFIC Housing Less Core, Satin Chrome Finish, Field Reversible
The BEST 45H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 45H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 45H Series remains a low maintenance product that is easy to reconfigure and install.
Mortise locks and deadbolts delivering exceptional strength, security, and durability.
With precision-engineered components and robust design features, BEST's 45H mortise lock series is ideal for high traffic applications. Installation is quicker and easier thanks to carefully designed features that simplify handing changes, alignment, and assembly.
Attributes
Ansi: F14
Ansi Function: F14 - Store Door
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 3/4" Latch
Box Depth Fraction: 11-1/2"
Box Height Fraction: 3"
Box Width Fraction: 9-3/4"
Burglar Rated: No
Case Dimensions: 5-7/8" x 4-1/16"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Double Cylinder
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: G-Communicating
Function Family: Communicating
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Knob: Knob
Lever Knob Design Name: 4
Leverknob Design: 4 Knob
Leverknob Design Family: Flat Knob
Limited Warranty: Limited Lifetime Warranty
Lock Face Size: 8" x 1-1/4"
Manufacturer Function: Communicating
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 3"
Pack Height 2: 12.25"
Pack Length: 11.5"
Pack Length 2: 12.75"
Pack Qty: 1
Pack Volume: 336.38 in³
Pack Volume 2: 1639.97 in³
Pack Width: 9.75"
Pack Width 2: 10.5"
Pins: 7
Pocket Dimensions: 6-5/8" x 4-1/4"
Product Height: 3"
Product Length: 11.5"
Product Width: 9.75"
Projection: 2-7/8"
Rose Escutcheon: Rose
Roseescutcheon Design: H Rose
Roseescutcheon Dimensions: 2-3/4"
Screws: Wood/Machine Screws
Series: 45H Series Mortise Locks
Ship Weight: 6.4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 45H
Std Latch Type: Faceplate
Std Strike Height: 4-7/8"
Std Strike Number: 40HST1
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.13, Series 1000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
