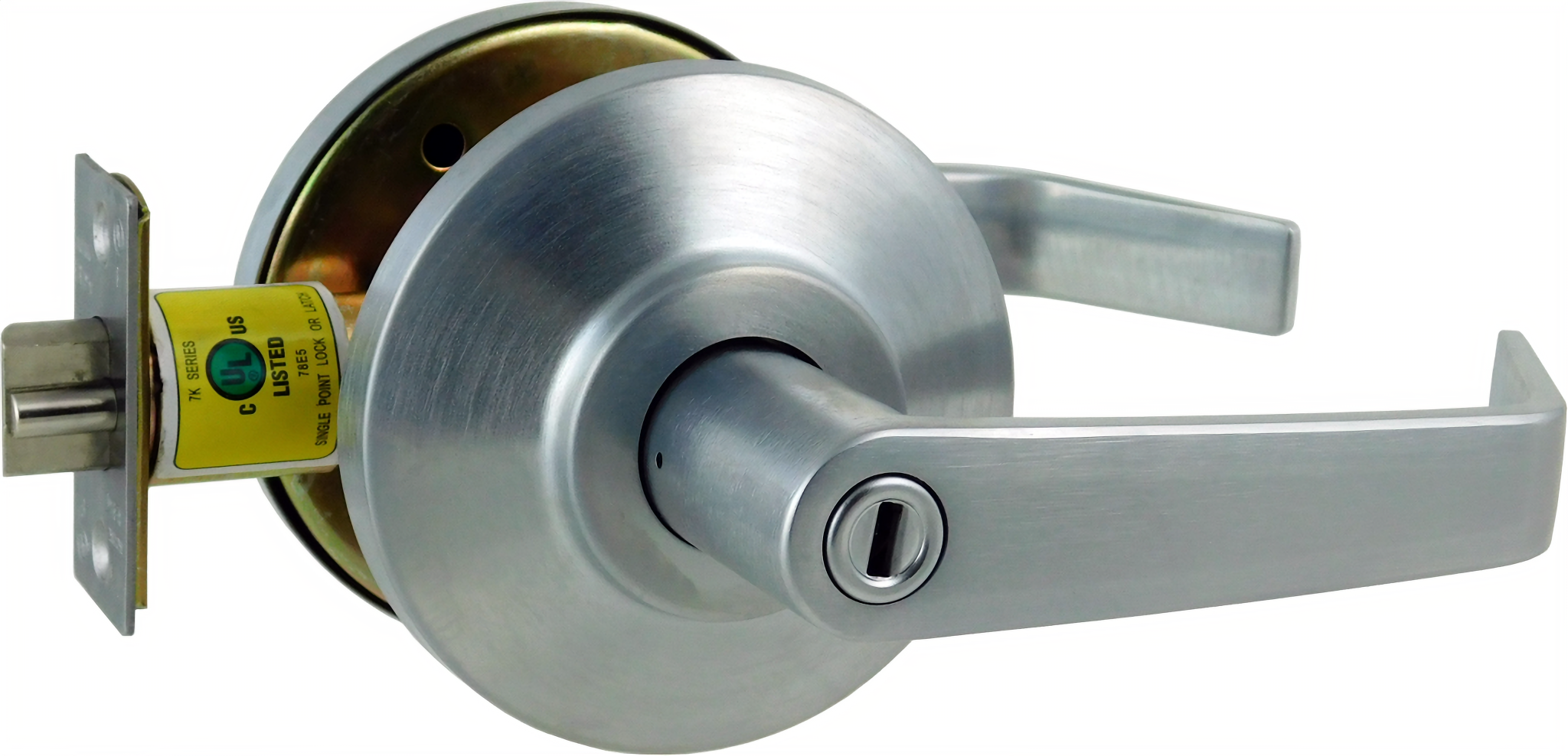

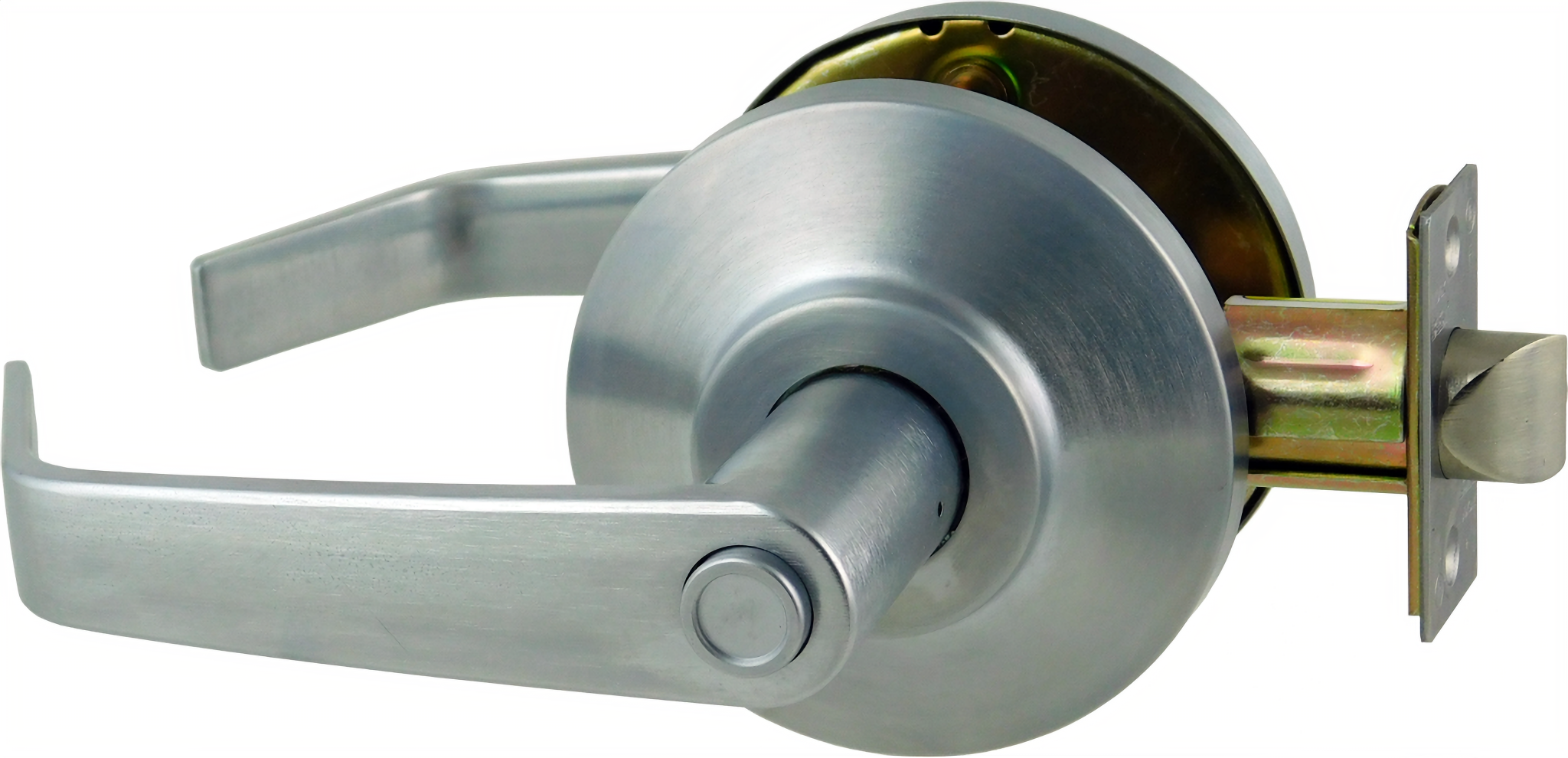

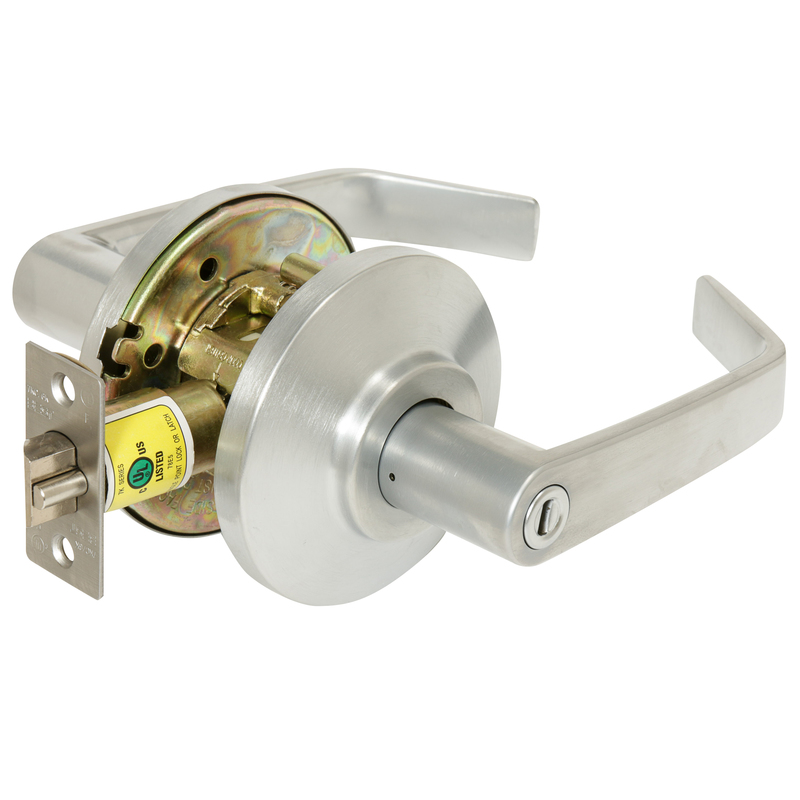

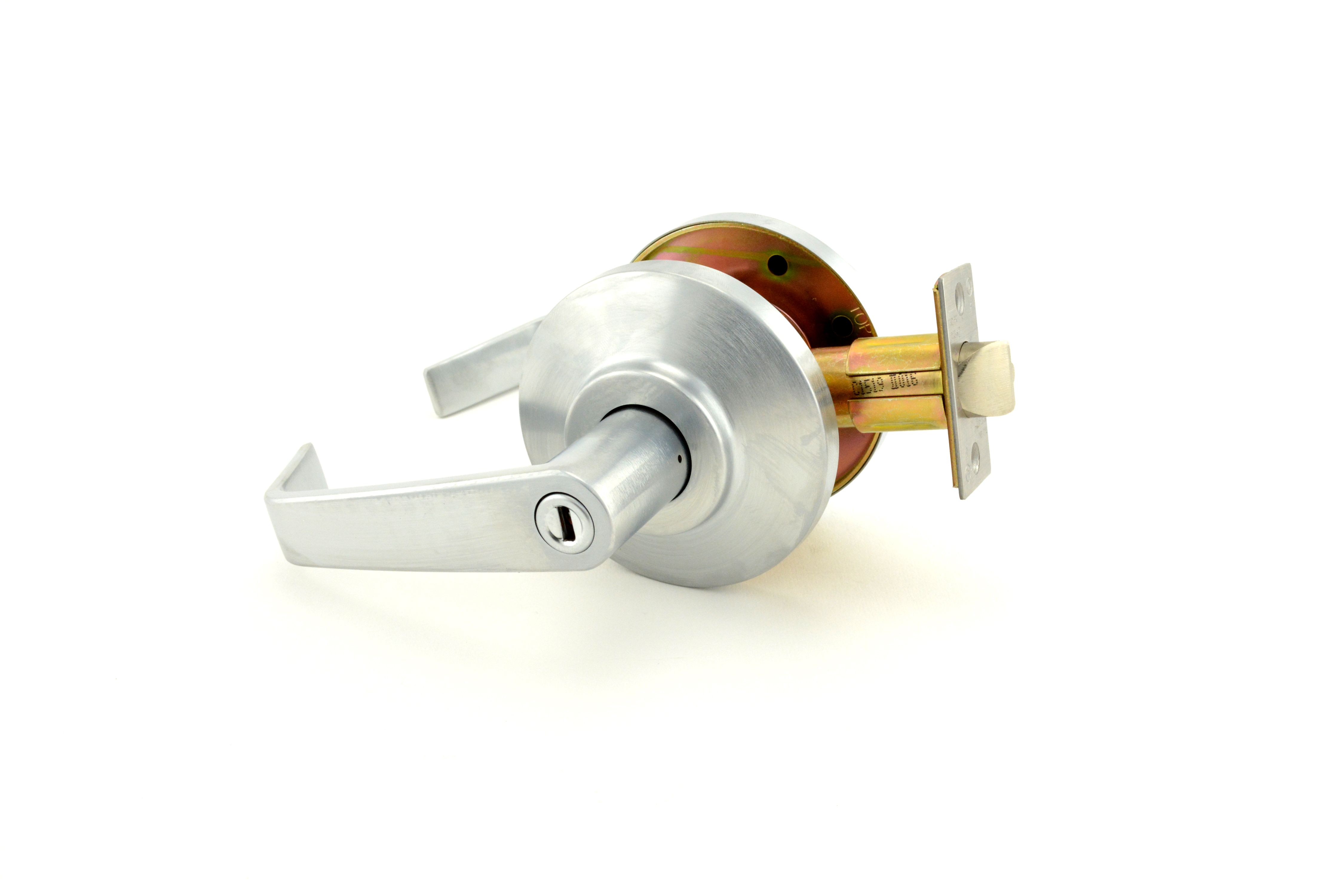

Best 7KC30L15DS3626 7K Series 2-3/4" Backset Privacy 15 Lever and D Rose ANSI Strike in Satin Chrome Finish is a testament to BEST®'s legacy of high-quality lock solutions. Crafted with precision, this lockset is designed to meet the demands of both commercial and residential applications, providing robust mechanical security with an ANSI A156.2 Grade 2 rating. Engineered to fit common door preparations, the cylindrical chassis features a 2-3/4" backset and a crossbore size of 2-1/8", accommodating door thicknesses from 1-3/8" to 2". The through-bolt mounting studs enhance torque resistance, ensuring a secure installation that stands the test of time. Quick rekeying is made effortless with BEST's interchangeable cores, allowing for easy adaptability as security needs change. The elegant satin chrome finish not only enhances the aesthetic appeal but also contributes to durability, backed by a limited 1-year mechanical and finish warranty. With a reversible handing design, this lockset is versatile for various door configurations. The 5-1/4" lever and 3-1/2" D Rose escutcheon design combine functionality and style, making the Best 7KC30L15DS3626 an ideal choice for enhancing both security and design.
As one of America's favorite hardware brands, BEST® has represented tough, versatile, high-quality locks for more than 90 years. BEST high-quality access solutions feature interchangeable cores and masterkey systems. Known for its American craftsmanship and proven performance, BEST solutions and components form the pinnacle of today's toughest mechanical security solutions. Our unparalleled quality and engineering make us a top choice of distributors and customers worldwide.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: 7KC30L15D-S3-626, 7KC30L15DS3626
Ansi: F76
Ansi Function: F76 - Privacy
Ansi Function Description: Privacy
Application: CM
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Clazz: SB
Color: Satin Chrome
Commercial Residential: Commercial
Core Housing: Less Core
Country of Origin: China
Country of origin: Taiwan
Crossbore Size: 2-1/8" Bore
Cylinder Included: No
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: 15D
Dimension: 5-1/4" Lever and 3-1/2" Rose
Door Application: Cylindrical Levers
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 2"
Door Thickness: 1-3/8 In. - 2 In.
Door Thickness Max: 2"
Door Thickness Min: 1-3/8"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chromium Plated
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: L-Privacy
Function Family: Privacy
Grade: Grade 2
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Item Class Description: 7K Series 2-3/4" Backset Privacy 15 Lever and D Rose ANSI Strike
Item Type Keyword: Privacy
Knob/ Lever Design: 15
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Springlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 7KC3
Latch Type: Guarded Latch
Lever Design: Contour / Angle Return
Lever Knob: Lever
Lever Knob Design: 15 - Lever
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: 15
Leverknob Design: 15 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Year Warranty
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Privacy
Manufacturer Function Description: Operated by rotating inside lever, rotating outside lever - only when inside push button is out.
Manufacturer Warranty: Limited 1 Year Mechanical and Finish Warranty
Material: Brass with Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
Number Of Inners: 1
Order_ Qty: 1
Origin: Taiwan
PO date: 2024-10-04
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.25"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 218.63 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Product Height: 4"
Product Length: 8.25"
Product Width: 6.63"
Projection: 2-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Rose/ Escutcheon: D Rose
Rose/ Escutcheon Size: 3-1/2"
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 7KC Series
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 7KC3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: S3
Strike Size: 2-3/4" x 1-1/8"
Strike Type: ASA
Strike Width: 1-1/8 In.
Structure Function: L
Structure Latch Number: 7KC3
Structure Outside Finish: 626
Structure Outside Trim: 15
Structure Series: 7KC
Structure Strike Number: S3
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Best Access
Type: Mechanical Commercial Locksets
Ul Listing: BHMA A156.2, Series 4000, Grade 2, UL Listed
Ul Listing Type: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838147011
Upc Code: 887838147011
