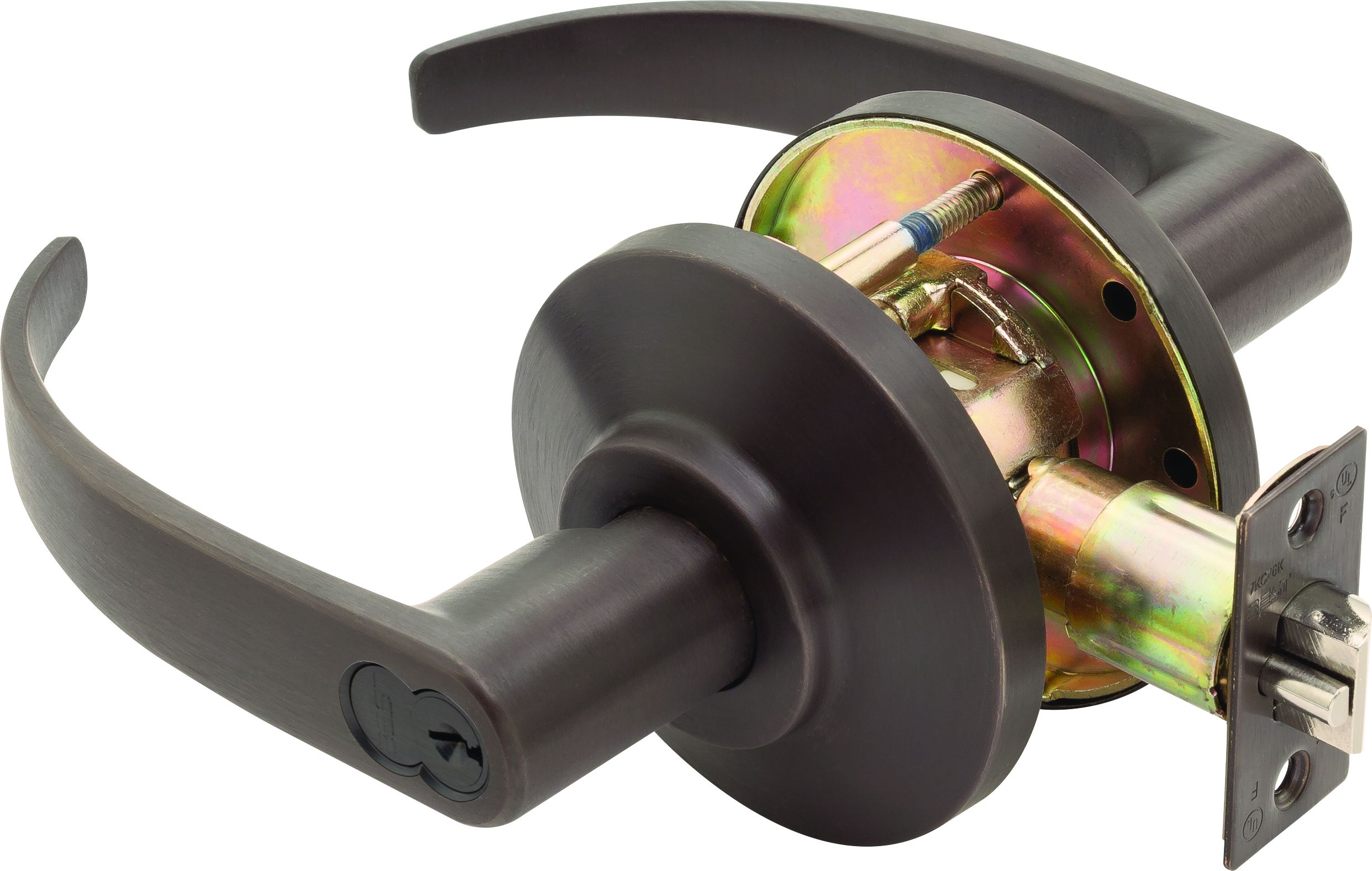

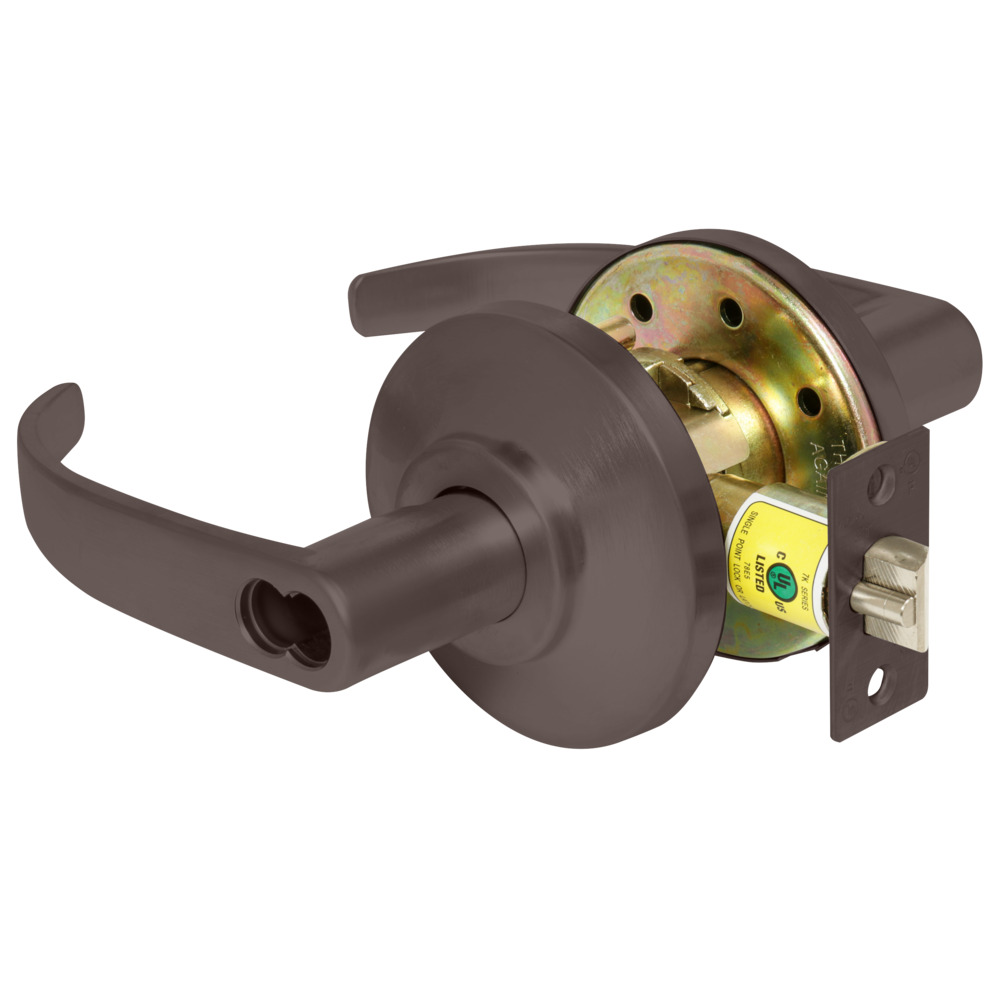

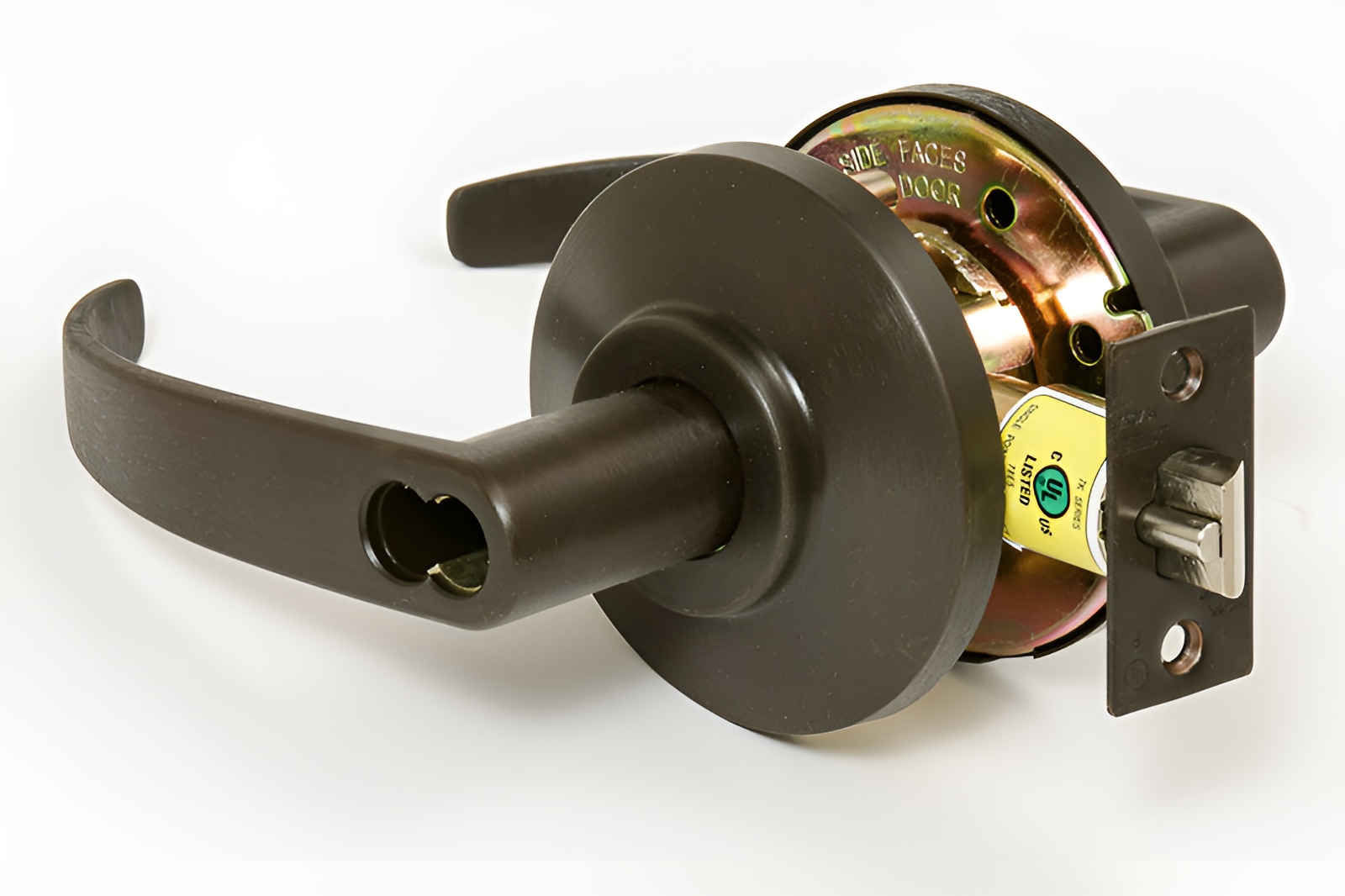

Stanley Best 7KC37AB14DS3613 7K Series 2-3/4" Backset 7 Pin Entry 14 Lever and D Rose ANSI Strike Less Core Oil Rubbed Bronze Finish
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi: F109
Ansi Function: F109 - Entry/Office
Ansi Function Description: Entry/Office
Backset: 2-3/4" Backset
Base Material: Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of Origin: Taiwan
Country of origin: Taiwan
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Design: 14D
Door Thickness: 1-3/8 In. - 2 In.
Dust Box: Plastic
Finish: Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: AB-Entry
Function Family: Office
Grade: Grade 2
Hand: Field Reversible
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1"
Latch Number: 7KC3
Latch Type: Guarded Latch
Lever Knob: Lever
Lever Knob Design: 14 - Lever
Lever Knob Design Family: Curved Return Lever
Lever Knob Design Name: 14
Leverknob Design: 14 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 3 Year Warranty
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Entry
Manufacturer Function Description: Operated by rotating inside lever, rotating the outside lever - only when the inside push button is out, turning key in outside lever.
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/8"
Num Pins: 6/7
Origin: Taiwan
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.25"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 218.63 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 6 to 7
Product Height: 4"
Product Length: 8.25"
Product Width: 6.63"
Projection: 2-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 7KC Series
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 7KC3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: S3
Strike Type: ASA
Strike Width: 1-1/8 In.
Structure Cylinder: 7
Structure Function: AB
Structure Latch Number: 7KC3
Structure Outside Finish: 613
Structure Outside Trim: 14
Structure Series: 7KC
Structure Strike Number: S3
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: BHMA A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838185150
