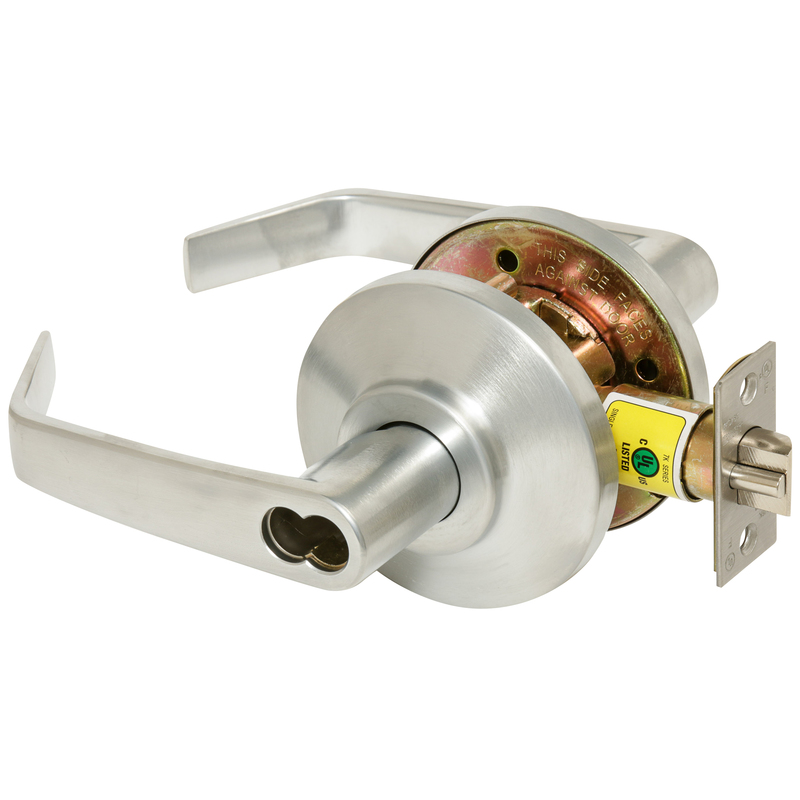

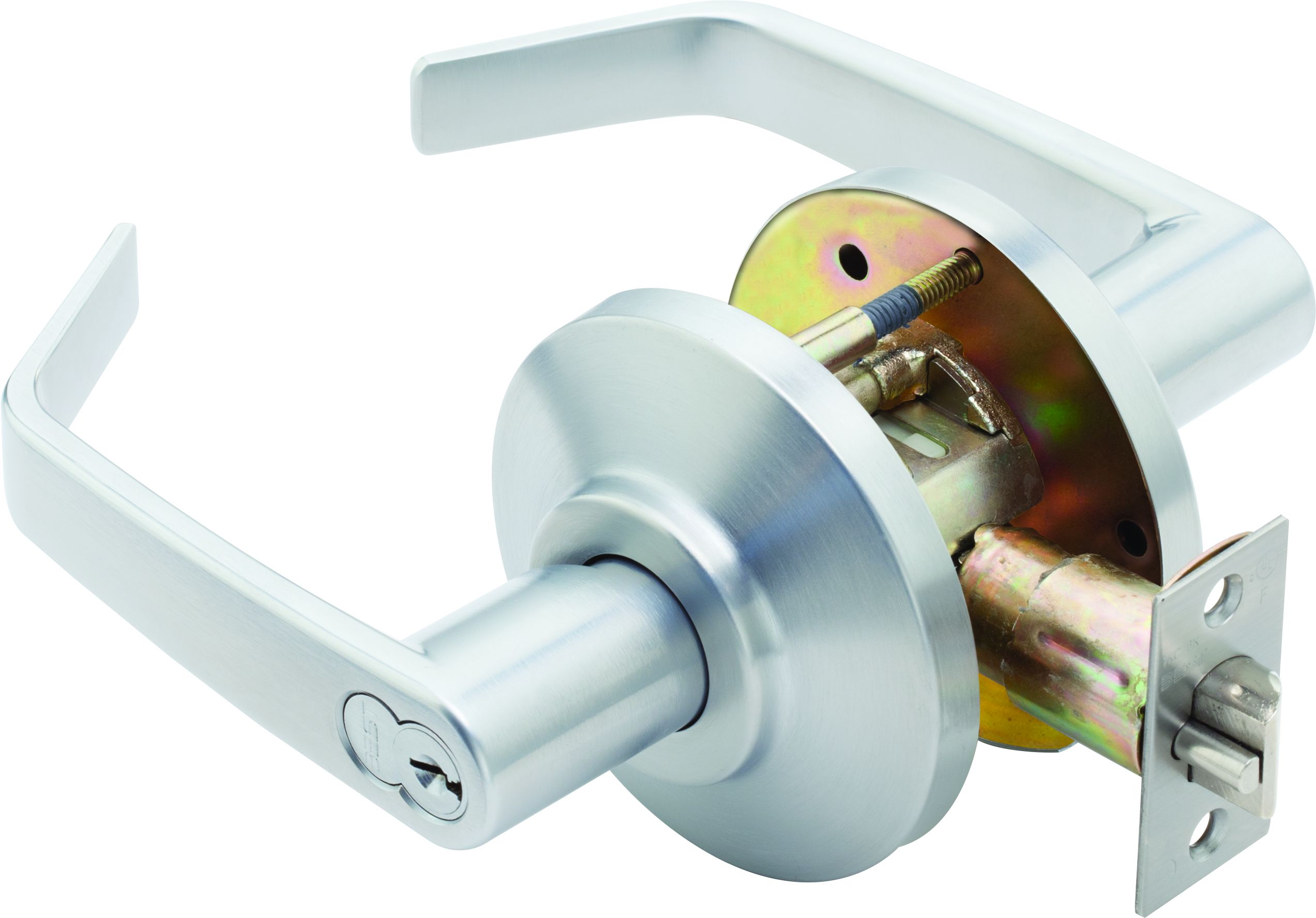

Best 7KC37AB15DS3626 7K Series Mechanical Lockset offers unparalleled security and convenience in a sleek satin chrome finish. Designed for commercial applications, this entry lock features a 2-3/4" backset and a robust 7-pin configuration, ensuring high-level mechanical security while enhancing the overall integrity of your doors. Constructed with a cylindrical chassis that fits common door preparations, it guarantees compatibility across various settings. This lockset includes through-bolt mounting studs, providing increased torque resistance for added durability. The quick and easy rekeying feature with Best interchangeable cores allows for flexible access control, making it a preferred choice for facilities requiring frequent key changes. With an ANSI A156.2 Grade 2 certification, you can trust this lockset to meet demanding standards. The 15D lever design and D Rose escutcheon complement modern architectural styles, while its reversible handing offers versatility for different door configurations. Suitable for doors ranging from 1-3/8" to 2" in thickness, the 7KC37AB15DS3626 is a reliable solution for any commercial environment. Backed by a limited one-year warranty on mechanical and finish, this lockset represents Best's commitment to quality and performance.
As one of America's favorite hardware brands, BEST® has represented tough, versatile, high-quality locks for more than 90 years. BEST high-quality access solutions feature interchangeable cores and masterkey systems. Known for its American craftsmanship and proven performance, BEST solutions and components form the pinnacle of today's toughest mechanical security solutions. Our unparalleled quality and engineering make us a top choice of distributors and customers worldwide.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: 7KC37AB15D-S3-626, 7KC37AB15DS3626
Ansi: F109
Ansi Function: F109 - Entry/Office
Ansi Function Description: Entry/Office
Application: CM
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Clazz: SB
Color: Satin Chrome
Commercial Residential: Commercial
Core Housing: 7-Pin
Country of Origin: China
Country of origin: Taiwan
Crossbore Size: 2-1/8" Bore
Cylinder Included: No
Cylinder Type: 7 Pin Cylinder, SFIC Cylinder
Cylinders Present: Single Cylinder
Design: 15D
Dimension: 5-1/4" Lever and 3-1/2" Rose
Door Application: Cylindrical Levers
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 2"
Door Thickness: 1-3/8 In. - 2 In.
Door Thickness Max: 2"
Door Thickness Min: 1-3/8"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chromium Plated
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: AB-Entry
Function Family: Office
Grade: Grade 2
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Item Class Description: 7K Series 2-3/4" Backset 7 Pin Entry 15 Lever and D Rose ANSI Strike Less Core
Item Type Keyword: Entry
Knob/ Lever Design: 15
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 7KC3
Latch Type: Guarded Latch
Lever Design: Contour / Angle Return
Lever Knob: Lever
Lever Knob Design: 15 - Lever
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: 15
Leverknob Design: 15 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Year Warranty
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Entry
Manufacturer Function Description: Operated by rotating inside lever, rotating the outside lever - only when the inside push button is out, turning key in outside lever.
Manufacturer Warranty: Limited 1 Year Mechanical and Finish Warranty
Material: Brass with Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
No Of Pins: 7 Pin
Num Pins: 6/7
Number Of Inners: 1
Number Of Pins: 7 Pin Housing
Order_ Qty: 1
Origin: Taiwan
PO date: 2024-09-19
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.25"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 218.63 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 6 to 7
Product Height: 4"
Product Length: 8.25"
Product Width: 6.63"
Projection: 2-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Rose/ Escutcheon: D Rose
Rose/ Escutcheon Size: 3-1/2"
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 7KC Series
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 7KC3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: S3
Strike Size: 2-3/4" x 1-1/8"
Strike Type: ASA
Strike Width: 1-1/8 In.
Structure Cylinder: 7
Structure Function: AB
Structure Latch Number: 7KC3
Structure Outside Finish: 626
Structure Outside Trim: 15
Structure Series: 7KC
Structure Strike Number: S3
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Best Access
Type: Mechanical Commercial Locksets
Ul Listing: BHMA A156.2, Series 4000, Grade 2, UL Listed
Ul Listing Type: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838147042
Upc Code: 887838147042
