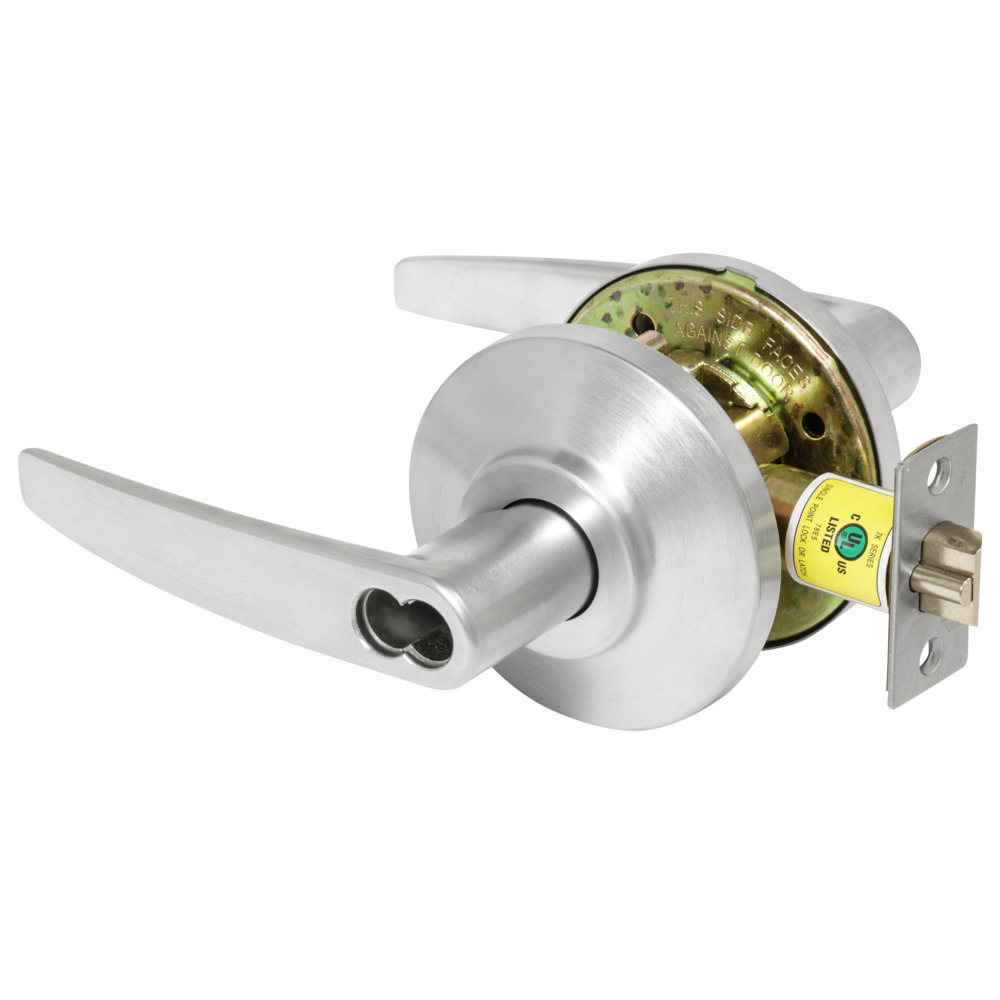

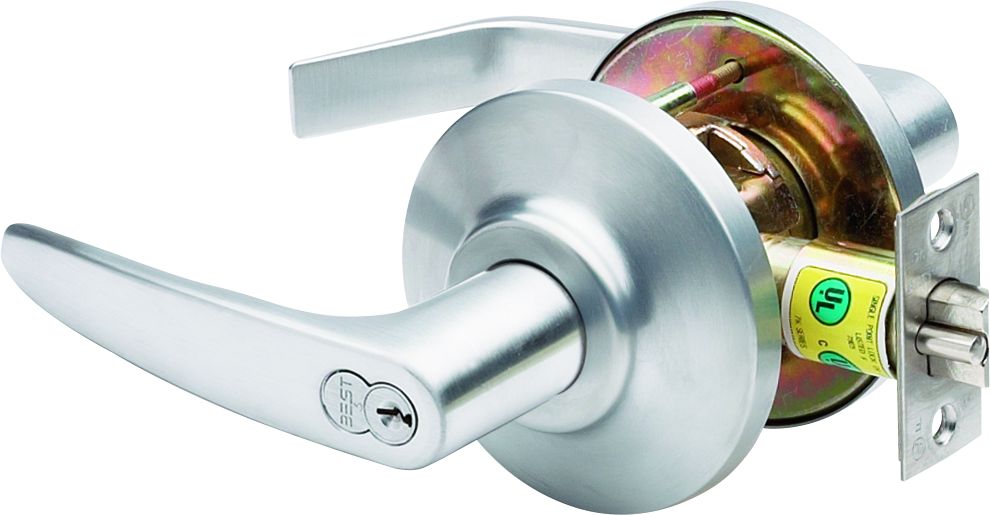

Best 7KC37AB16DS3626 7K Series 2-3/4" Backset 7 Pin Entry features a robust design that exemplifies over 90 years of craftsmanship and innovation from BEST®. This mechanical lockset is engineered to deliver superior security with its tight tolerances and a 7-pin configuration, enhancing the integrity of your access points. The 7KC37AB16DS3626 model includes a cylindrical chassis, compatible with common door preparations, making installation straightforward. Through-bolt mounting studs provide increased torque resistance, ensuring durability and reliability. Quick rekeying is made easy with BEST’s interchangeable cores, facilitating efficient maintenance without compromising security. Designed for doors ranging from 1-3/8" to 2" thick, this entry lockset features a stylish satin chrome finish that not only adds an elegant touch but also withstands the test of time. The 16D lever and D rose design contribute to its aesthetic appeal while maintaining functionality. With ANSI A156.2 Grade 2 certification, this lockset meets high industry standards for performance. The Best 7KC37AB16DS3626 is UL Listed and backed by a limited 1-year warranty on mechanical and finish, ensuring that you invest in a reliable solution for your security needs.
As one of America's favorite hardware brands, BEST® has represented tough, versatile, high-quality locks for more than 90 years. BEST high-quality access solutions feature interchangeable cores and masterkey systems. Known for its American craftsmanship and proven performance, BEST solutions and components form the pinnacle of today's toughest mechanical security solutions. Our unparalleled quality and engineering make us a top choice of distributors and customers worldwide.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi: F109
Ansi Function: F109 - Entry/Office
Ansi Function Description: Entry/Office
Application: CM
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Clazz: SB
Color: Satin Chrome
Commercial Residential: Commercial
Country of Origin: China
Country of origin: Taiwan
Crossbore Size: 2-1/8" Bore
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Design: 16D
Dimension: 5-1/4" Lever and 3-1/2" Rose
Door Range: 1-3/8" to 2"
Door Thickness: 1-3/8 In. - 2 In.
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chromium Plated
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: AB-Entry
Function Family: Office
Grade: Grade 2
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Item Class Description: 7K Series 2-3/4" Backset 7 Pin Entry 16 Lever and D Rose ANSI Strike Less Core
Item Type Keyword: Entry
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 7KC3
Latch Type: Guarded Latch
Lever Knob: Lever
Lever Knob Design: 16 - Lever
Lever Knob Design Family: Curved Lever
Lever Knob Design Name: 16
Leverknob Design: 16 Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 3 Year Warranty
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Entry
Manufacturer Function Description: Operated by rotating inside lever, rotating the outside lever - only when the inside push button is out, turning key in outside lever.
Manufacturer Warranty: Limited 1 Year Mechanical and Finish Warranty
Material: Brass with Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
No Of Pins: 7 Pin
Num Pins: 6/7
Number Of Inners: 1
Number Of Pins: 7 Pin Housing
Order_ Qty: 1
Origin: Taiwan
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.25"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 218.63 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 6 to 7
Product Height: 4"
Product Length: 8.25"
Product Width: 6.63"
Projection: 2-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 7KC Series
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 7KC3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: S3
Strike Type: ASA
Strike Width: 1-1/8 In.
Structure Cylinder: 7
Structure Function: AB
Structure Latch Number: 7KC3
Structure Outside Finish: 626
Structure Outside Trim: 16
Structure Series: 7KC
Structure Strike Number: S3
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: BHMA A156.2, Series 4000, Grade 2, UL Listed
Ul Listing Type: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838146717
Upc Code: 887838146717
