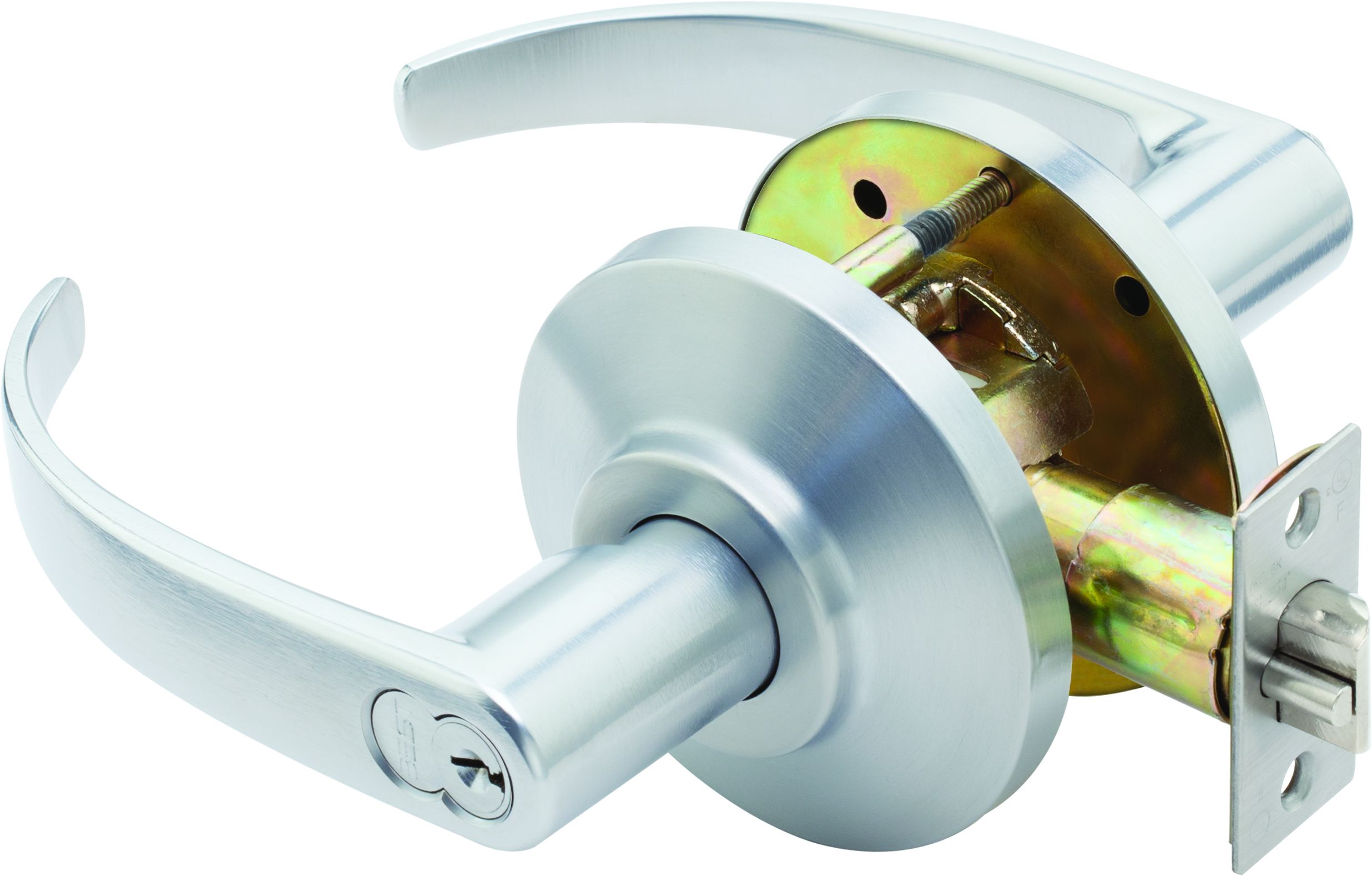

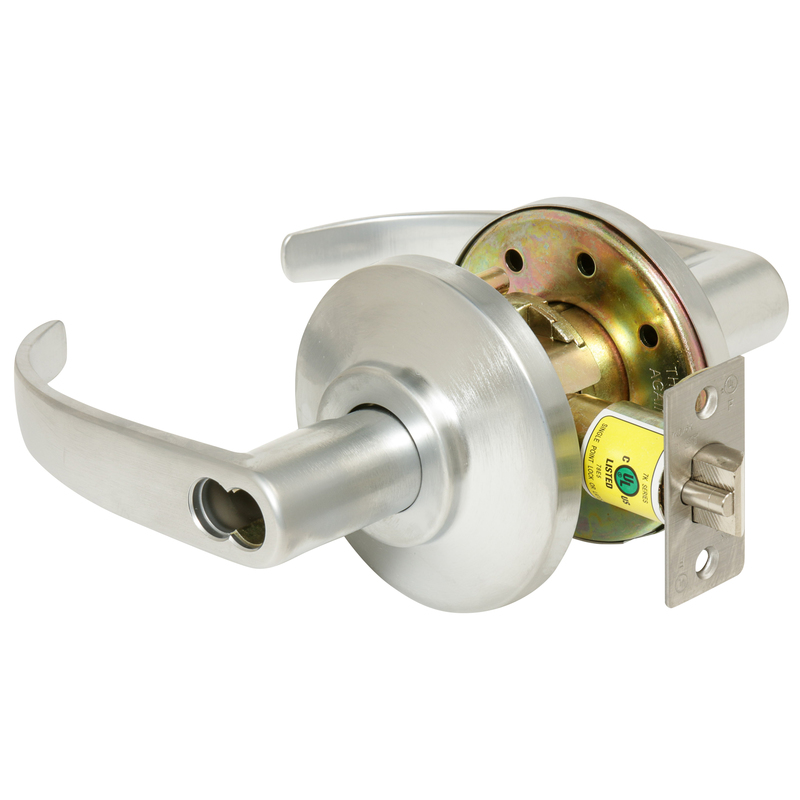

Best 7KC37D14DS3626 7K Series is a robust mechanical lockset engineered for exceptional security and durability. Designed with a 2-3/4" backset and featuring a storeroom function, this lockset is an ideal choice for commercial environments where controlled access is essential. The 14D lever design and D rose escutcheon provide a sleek aesthetic, available in a satin chrome finish that combines style with resilience. Constructed to tight tolerances, the 7KC37D14DS3626 enhances the integrity of the lock, ensuring high-level mechanical security. Its cylindrical chassis fits common door preparations, and the through-bolt mounting studs increase torque resistance, providing added strength. With a quick and easy rekeying process enabled by Best's interchangeable cores, maintaining security is hassle-free. This lockset accommodates door thicknesses ranging from 1-3/8" to 2" and is ANSI A156.2 Grade 2 certified, assuring reliable performance. The 7-pin configuration ensures a higher level of key control, while the UL listing signifies its compliance with rigorous safety standards. Backed by a limited 1-year mechanical and finish warranty, the Best 7KC37D14DS3626 7K Series lockset is the definitive choice for those seeking quality and reliability in architectural door hardware.
As one of America's favorite hardware brands, BEST® has represented tough, versatile, high-quality locks for more than 90 years. BEST high-quality access solutions feature interchangeable cores and masterkey systems. Known for its American craftsmanship and proven performance, BEST solutions and components form the pinnacle of today's toughest mechanical security solutions. Our unparalleled quality and engineering make us a top choice of distributors and customers worldwide.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi: F86
Ansi Function: F86 - Storeroom
Ansi Function Description: Storeroom
Application: CM
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Clazz: SB
Color: Satin Chrome
Commercial Residential: Commercial
Country of Origin: China
Country of origin: Taiwan
Crossbore Size: 2-1/8" Bore
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Design: 14D
Dimension: 5-1/4" Lever and 3-1/2" Rose
Door Range: 1-3/8" to 2"
Door Thickness: 1-3/8 In. - 2 In.
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chromium Plated
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: D-Storeroom
Function Family: Storeroom
Grade: Grade 2
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Item Class Description: 7K Series 2-3/4" Backset 7 Pin Storeroom 14 Lever and D Rose ANSI Strike Less Core
Item Type Keyword: Storeroom
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 7KC3
Latch Type: Guarded Latch
Lever Knob: Lever
Lever Knob Design: 14 - Lever
Lever Knob Design Family: Curved Return Lever
Lever Knob Design Name: 14
Leverknob Design: 14 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 3 Year Warranty
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Storeroom
Manufacturer Function Description: Operated by turning key in the outside lever, rotating inside lever.
Manufacturer Warranty: Limited 1 Year Mechanical and Finish Warranty
Material: Brass with Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
No Of Pins: 7 Pin
Num Pins: 6/7
Number Of Inners: 1
Number Of Pins: 7 Pin Housing
Order_ Qty: 1
Origin: Taiwan
PO date: 2024-10-26
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.25"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 218.63 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 6 to 7
Product Height: 4"
Product Length: 8.25"
Product Width: 6.63"
Projection: 2-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 7KC Series
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 7KC3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: S3
Strike Type: ASA
Strike Width: 1-1/8 In.
Structure Cylinder: 7
Structure Function: D
Structure Latch Number: 7KC3
Structure Outside Finish: 626
Structure Outside Trim: 14
Structure Series: 7KC
Structure Strike Number: S3
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: BHMA A156.2, Series 4000, Grade 2, UL Listed
Ul Listing Type: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838146724
Upc Code: 887838146724
