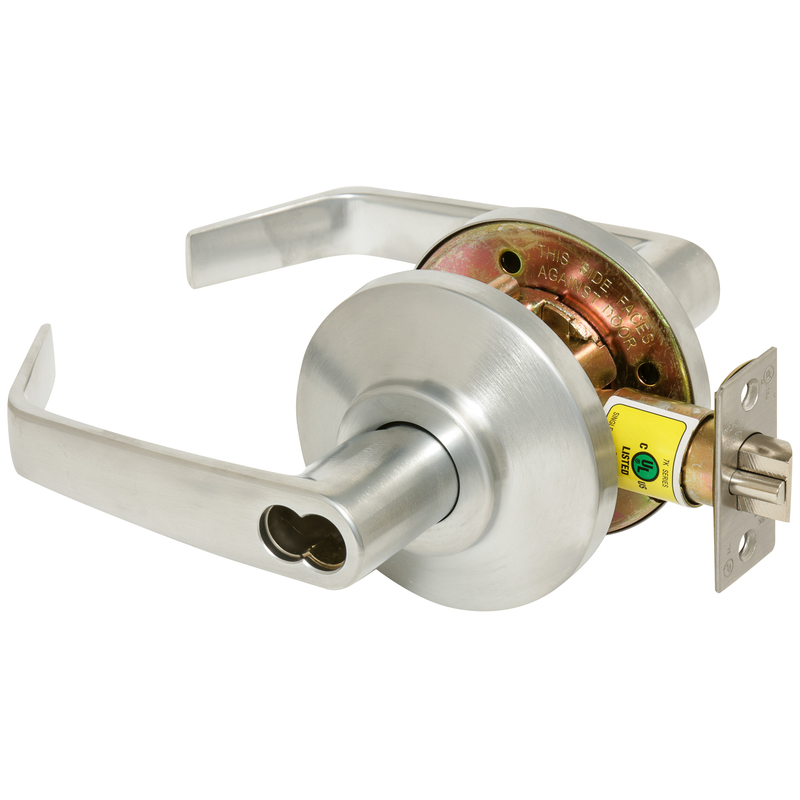

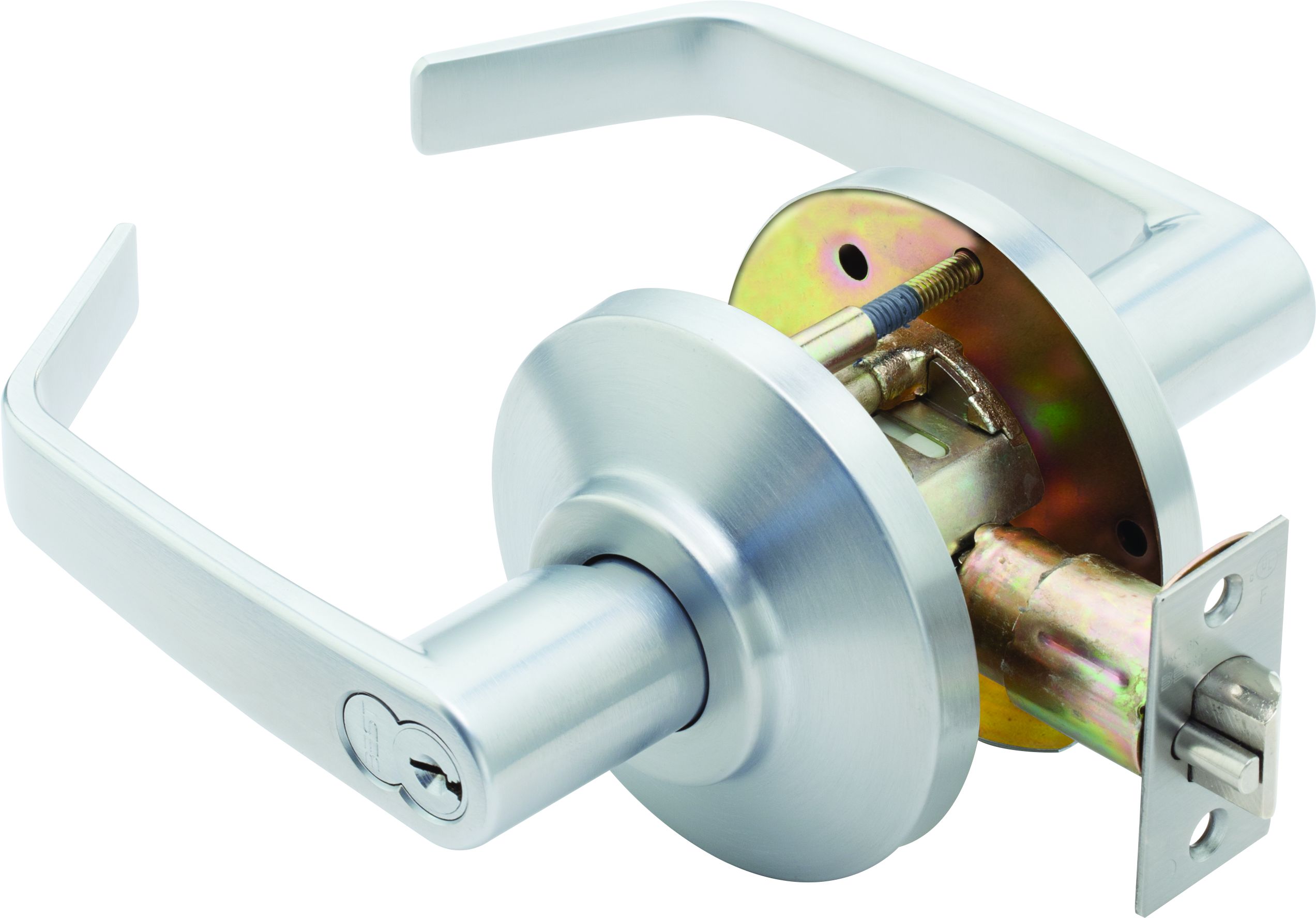

Best 7KC37D15DS3626 7K Series 2-3/4" Backset 7 Pin Storeroom 15 Lever and D Rose ANSI Strike is a premier choice for those seeking robust mechanical security in commercial settings. Designed to meet ANSI A156.2 Grade 2 standards, this lockset is built with tight tolerances to ensure the highest level of mechanical security, enhancing the integrity of your door system. Featuring a cylindrical chassis that fits common door preparations, this storeroom lock is ideal for doors ranging from 1-3/8" to 2" in thickness. The satin chrome finish not only adds a sophisticated touch but also ensures durability against wear and tear. With a 5-1/4" lever and a 3-1/2" D rose, its design is both functional and aesthetically pleasing. The Best 7KC37D15DS3626 also offers through-bolt mounting studs that increase torque resistance, making it even more secure. Quick and easy rekeying is possible with Best interchangeable cores, providing flexibility for changing access needs. This lockset is UL Listed, ensuring it meets stringent safety and quality standards. With a limited 1-year mechanical and finish warranty, you can trust in the reliability and craftsmanship of Best products for your security solutions.
As one of America's favorite hardware brands, BEST® has represented tough, versatile, high-quality locks for more than 90 years. BEST high-quality access solutions feature interchangeable cores and masterkey systems. Known for its American craftsmanship and proven performance, BEST solutions and components form the pinnacle of today's toughest mechanical security solutions. Our unparalleled quality and engineering make us a top choice of distributors and customers worldwide.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: 7KC37D15D-S3-626, 7KC37D15DS3626
Ansi: F86
Ansi Function: F86 - Storeroom
Ansi Function Description: Storeroom
Application: CM
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Clazz: SB
Color: Satin Chrome
Commercial Residential: Commercial
Core Housing: 7-Pin
Country of Origin: China
Country of origin: Taiwan
Crossbore Size: 2-1/8" Bore
Cylinder Included: No
Cylinder Type: 7 Pin Cylinder, SFIC Cylinder
Cylinders Present: Single Cylinder
Design: 15D
Dimension: 5-1/4" Lever and 3-1/2" Rose
Door Application: Cylindrical Levers
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 2"
Door Thickness: 1-3/8 In. - 2 In.
Door Thickness Max: 2"
Door Thickness Min: 1-3/8"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chromium Plated
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: D-Storeroom
Function Family: Storeroom
Grade: Grade 2
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Item Class Description: 7K Series 2-3/4" Backset 7 Pin Storeroom 15 Lever and D Rose ANSI Strike Less Core
Item Type Keyword: Storeroom
Knob/ Lever Design: 15
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 7KC3
Latch Type: Guarded Latch
Lever Design: Contour / Angle Return
Lever Knob: Lever
Lever Knob Design: 15 - Lever
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: 15
Leverknob Design: 15 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 3 Year Warranty
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Storeroom
Manufacturer Function Description: Operated by turning key in the outside lever, rotating inside lever.
Manufacturer Warranty: Limited 1 Year Mechanical and Finish Warranty
Material: Brass with Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
No Of Pins: 7 Pin
Num Pins: 6/7
Number Of Inners: 1
Number Of Pins: 7 Pin Housing
Order_ Qty: 1
Origin: Taiwan
PO date: 2024-09-19
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.25"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 218.63 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 6 to 7
Product Height: 4"
Product Length: 8.25"
Product Width: 6.63"
Projection: 2-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Rose/ Escutcheon: D Rose
Rose/ Escutcheon Size: 3-1/2"
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 7KC Series
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 7KC3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: S3
Strike Size: 2-3/4" x 1-1/8"
Strike Type: ASA
Strike Width: 1-1/8 In.
Structure Cylinder: 7
Structure Function: D
Structure Latch Number: 7KC3
Structure Outside Finish: 626
Structure Outside Trim: 15
Structure Series: 7KC
Structure Strike Number: S3
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Best Access
Type: Mechanical Commercial Locksets
Ul Listing: BHMA A156.2, Series 4000, Grade 2, UL Listed
Ul Listing Type: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838147028
Upc Code: 887838147028
