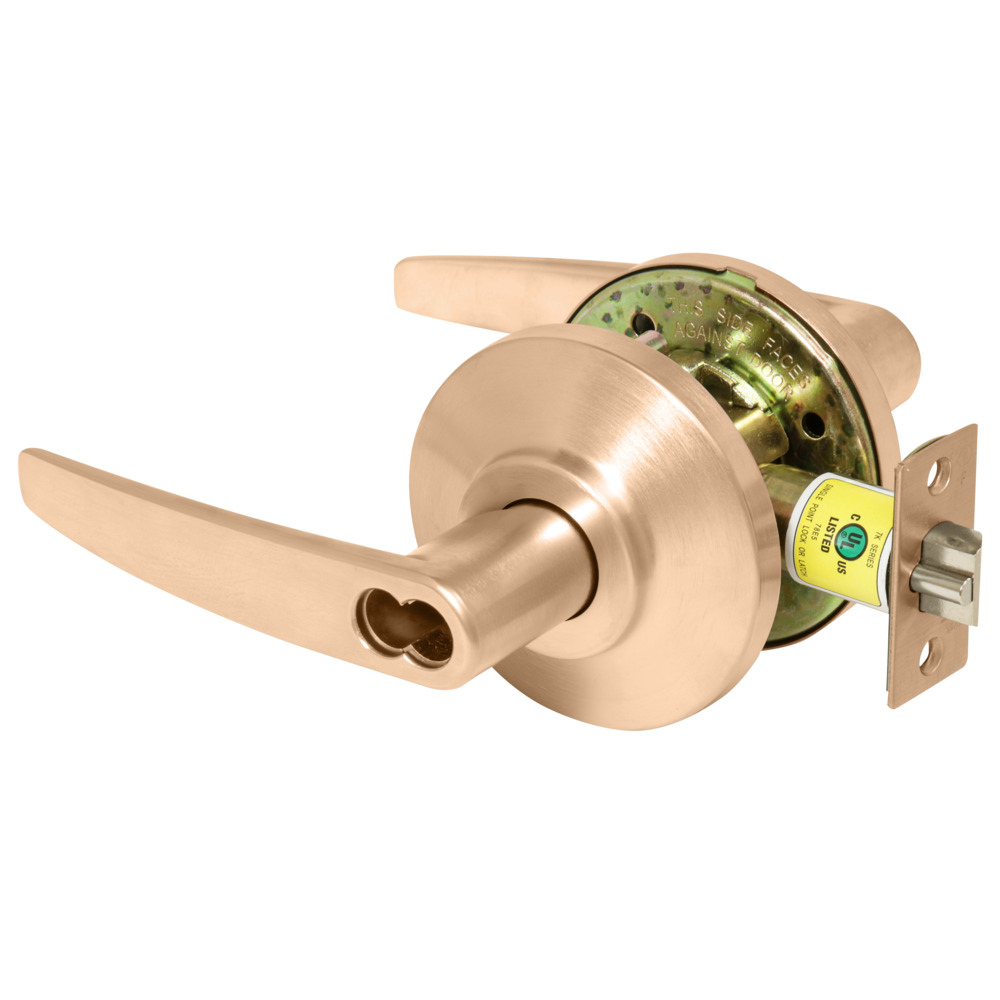

Best 7KC37D16DS3612 Grade 2 Storeroom Lock

BEST 7KC37D16DS3612 Grade 2 Storeroom Lock is a reliable choice for commercial applications, providing security and convenience in a sleek satin bronze finish. This Grade 2 cylindrical lock features a 16 lever design and is less core SFIC prepared, allowing for easy rekeying with BEST interchangeable cores. Its non-handed configuration ensures compatibility with various door setups, making installation straightforward. Certified by Underwriters Laboratories for use on 3-hour fire-rated single swinging doors, this lock meets ANSI A156.3 standards and complies with the California Administrative Code Title 19 and 24, as well as Illinois Accessibility Standards. The robust construction includes a ½" throw deadlocking latch and a 5 ¼" long curved lever, designed for comfort and durability. With a door thickness range of 1 3/8" to 2", the 7KC series is versatile enough for many applications. It features a 2 1/8" bore for lock housing and a variety of available finishes, ensuring that it will fit seamlessly into any décor. Additionally, the lock comes with a limited 3-year warranty, underscoring its quality and reliability. Choose the BEST 7KC37D16DS3612 for a secure, stylish, and practical locking solution in your establishment.

Grade 2 Storeroom Lock

Grade 2 Storeroom Cylindrical Lock, 16 Lever, SFIC Less Core, Satin Bronze Finish, Non-handed

7KC Listed by Underwriters Laboratories for use on 3 hour, A label single swinging doors (4' x 8' ). Certification- This product is listed in BHMA Directory of Certified Locks and Latches as conforming to ANSI A156.3, Grade 2. California Administrative Code Title 19 and 24. Illinois Accessibility Standard.

The 7KC Series has very versatile trims and has several finishes available too it your needs.

The 7KC series is known for its quick rekeying with BEST interchangeable cores and has has a cylindrical chassis to fit common door preparation. This series is also ADA compliant, title III.

• Backset– 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
• Finishes– 605– bright brass, 606– satin brass, 612– satin bronze, 613– oxidized satin bronze, oil rubbed, 625– bright chromium plated, 626– satin chromium plated
• Interchangeable core– Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
• Latch– 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
• Lever– 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
• Material– Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
• Mounting– 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
• Rose– D– 3 1/2" diameter mounting screws concealed.
• Strike– STK (standard)– 2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3– 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
• Door thickness– 1 3/8" to 2" .

NOTE: When a heavy duty cylindrical lockset is required, our heavy duty 9K series is recommended.
