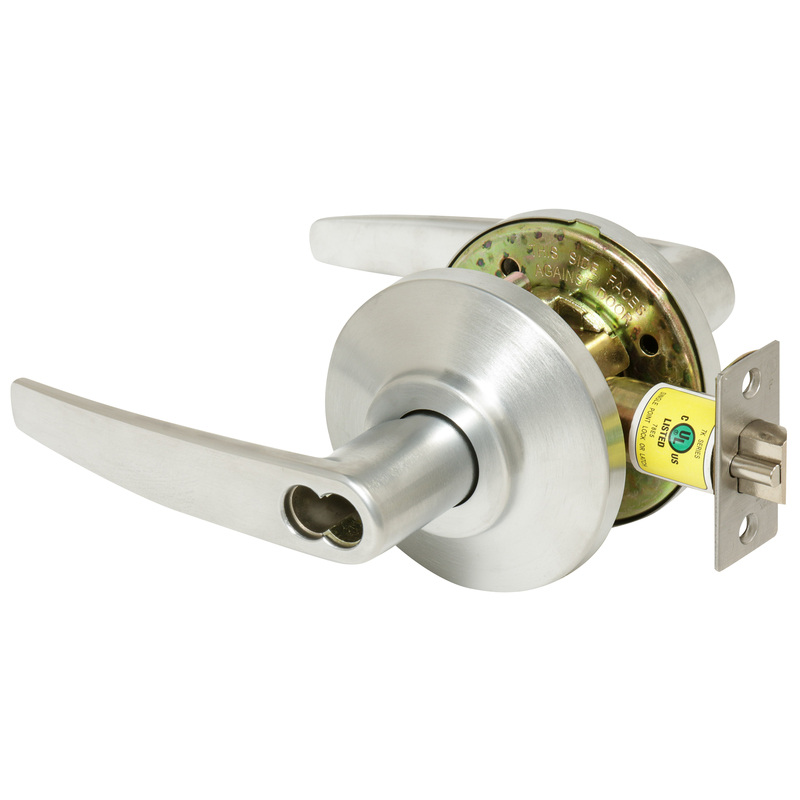

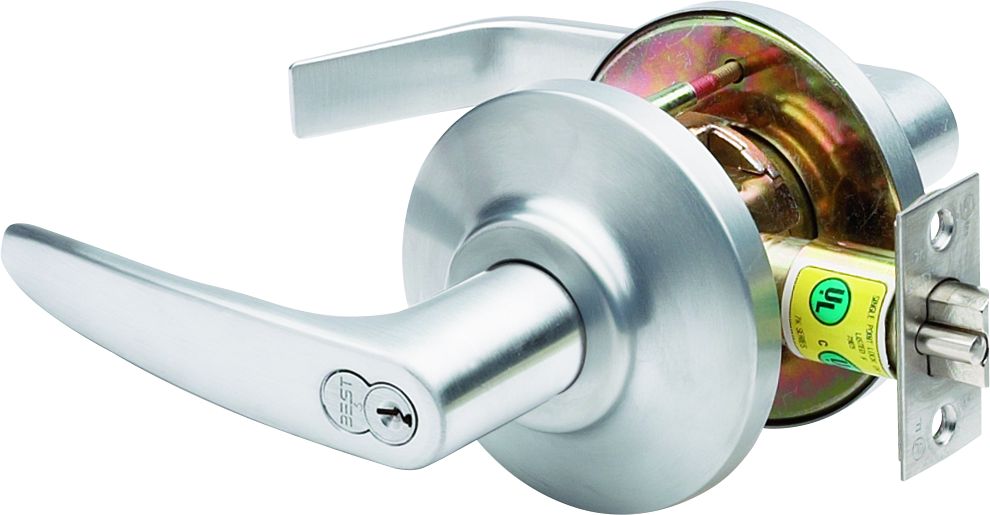

Best 7KC37D16DS3626 7K Series 2-3/4" Backset 7 Pin Storeroom 16 Lever and D Rose ANSI Strike Less Core Satin Chrome Finish delivers robust security and durability, making it an ideal choice for commercial applications. Designed with precision, this mechanical lockset meets ANSI A156.2 Grade 2 standards, ensuring reliable performance in high-traffic environments. The cylindrical chassis fits common door preparations, while its 2-3/4" backset accommodates a variety of door thicknesses from 1-3/8" to 2". Featuring a satin chrome finish, the lockset not only enhances aesthetic appeal but also resists wear, ensuring long-lasting use. The 5-1/4" lever design paired with a 3-1/2" D rose offers ease of operation while maintaining a modern look. Built to tight tolerances, the Best 7KC37D provides the highest level of mechanical security, enhancing the integrity of the lock. The through-bolt mounting studs increase torque resistance, further contributing to its durability. Quick and easy rekeying is made possible with Best interchangeable cores, allowing for flexible access control. With a limited 1-year warranty on mechanical and finish aspects, this product stands out as a top-tier choice for those seeking reliable, high-quality door hardware solutions.
As one of America's favorite hardware brands, BEST® has represented tough, versatile, high-quality locks for more than 90 years. BEST high-quality access solutions feature interchangeable cores and masterkey systems. Known for its American craftsmanship and proven performance, BEST solutions and components form the pinnacle of today's toughest mechanical security solutions. Our unparalleled quality and engineering make us a top choice of distributors and customers worldwide.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi: F86
Ansi Function: F86 - Storeroom
Ansi Function Description: Storeroom
Application: CM
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Clazz: SB
Color: Satin Chrome
Commercial Residential: Commercial
Country of Origin: China
Country of origin: Taiwan
Crossbore Size: 2-1/8" Bore
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Design: 16D
Dimension: 5-1/4" Lever and 3-1/2" Rose
Door Range: 1-3/8" to 2"
Door Thickness: 1-3/8 In. - 2 In.
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chromium Plated
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: D-Storeroom
Function Family: Storeroom
Grade: Grade 2
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Item Class Description: 7K Series 2-3/4" Backset 7 Pin Storeroom 16 Lever and D Rose ANSI Strike Less Core
Item Type Keyword: Storeroom
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 7KC3
Latch Type: Guarded Latch
Lever Knob: Lever
Lever Knob Design: 16 - Lever
Lever Knob Design Family: Curved Lever
Lever Knob Design Name: 16
Leverknob Design: 16 Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 3 Year Warranty
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Storeroom
Manufacturer Function Description: Operated by turning key in the outside lever, rotating inside lever.
Manufacturer Warranty: Limited 1 Year Mechanical and Finish Warranty
Material: Brass with Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
No Of Pins: 7 Pin
Num Pins: 6/7
Number Of Inners: 1
Number Of Pins: 7 Pin Housing
Order_ Qty: 1
Origin: Taiwan
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.25"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 218.63 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 6 to 7
Product Height: 4"
Product Length: 8.25"
Product Width: 6.63"
Projection: 2-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Roseescutcheon Design: 3-1/2" Rose Diameter
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 7KC Series
Ship Weight: 3.6 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 7KC3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: S3
Strike Type: ASA
Strike Width: 1-1/8 In.
Structure Cylinder: 7
Structure Function: D
Structure Latch Number: 7KC3
Structure Outside Finish: 626
Structure Outside Trim: 16
Structure Series: 7KC
Structure Strike Number: S3
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: BHMA A156.2, Series 4000, Grade 2, UL Listed
Ul Listing Type: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838158703
Upc Code: 887838158703
