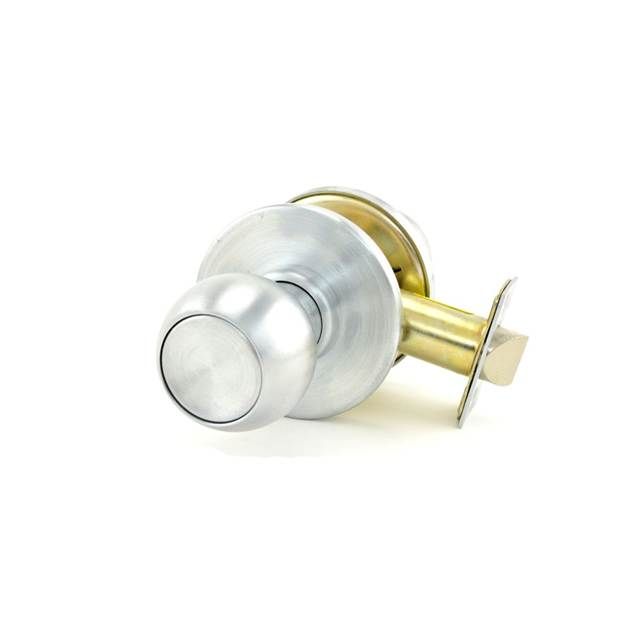

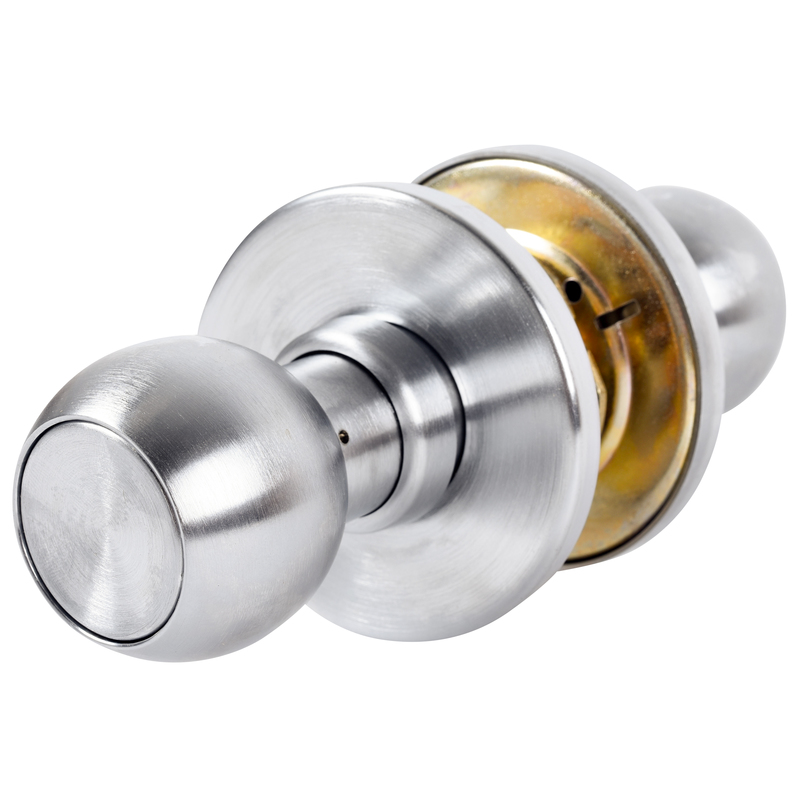

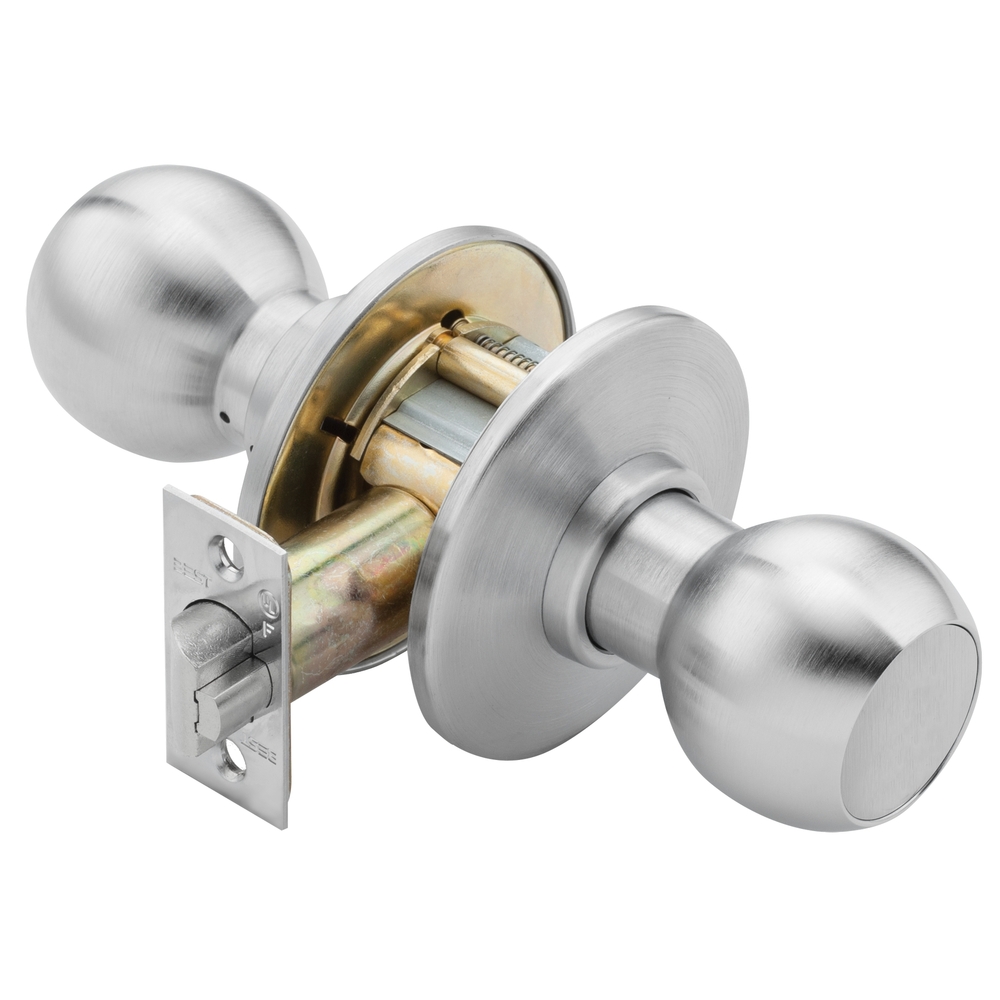

Stanley Best 8K30N4AS3626 8K Series 2-3/4" Backset Passage 4 Knob and A Rose ANSI Strike Satin Chrome Finish
Attributes
Ansi: F75
Ansi Function: F75 - Passage
Ansi Function Description: Passage
Application: CM
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 9/16"
Bolt Protection: 3/4 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 9-5/8"
Box Height Fraction: 3-1/2"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Clazz: SB
Color: Satin Chrome
Commercial Residential: Commercial
Country of Origin: China
Country of origin: USA
Crossbore Size: 2-1/8" Bore
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: 04A
Door Thickness: 1-3/8 In. - 2 In.
Dust Box: Plastic
Finish: Satin Chrome
Finish Description: Satin Chromium Plated
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: N-Passage
Function Family: Passage
Grade: Grade 1
Hand: Field Reversible
Handing: Non-handed
Installation: Commercial
Item Class Description: 8K Series 2-3/4" Backset Passage 4 Knob and A Rose ANSI Strike
Item Type Keyword: Passage
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1"
Latch Number: 8KL3
Latch Type: Guarded Latch
Lever Knob: Knob
Lever Knob Design: 4 - Knob
Lever Knob Design Family: Flat Knob
Lever Knob Design Name: 4
Leverknob Design: 4 Knob
Leverknob Design Family: Flat Knob
Limited Warranty: 3 Year Warranty
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Passage
Manufacturer Function Description: Operated by rotating the inside knob, rotating the outside knob.
Material: Brass with Zinc
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
Number Of Inners: 1
Origin: USA
Pack Height: 3.5"
Pack Height 2: 10.5"
Pack Length: 9.63"
Pack Length 2: 15"
Pack Qty: 1
Pack Volume: 227.39 in³
Pack Volume 2: 1811.25 in³
Pack Width: 6.75"
Pack Width 2: 11.5"
Product Height: 3.5"
Product Length: 9.63"
Product Width: 6.75"
Projection: 2-7/8"
Rose Escutcheon: Rose
Rose Escutcheon Design: A Rose
Rose Escutcheon Dimensions: 3-3/8"
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 3-3/8"
Screws: Combination
Series: 8K Series
Ship Weight: 3.5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 8K3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: 8KS3
Strike Type: ASA
Strike Width: 1-1/8 In.
Structure Function: N
Structure Latch Number: 8K3
Structure Outside Finish: 626
Structure Outside Rose: A
Structure Outside Trim: 4
Structure Series: 8K
Structure Strike Number: S3
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 12
Upc: 887838176646
Upc Code: 887838265098
