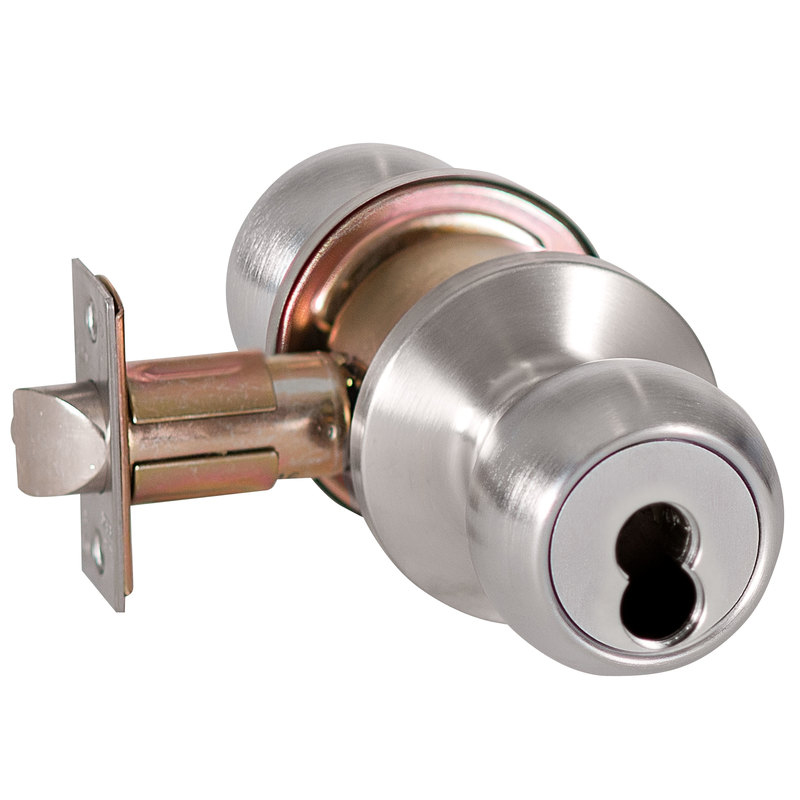

Stanley Best 8K37D4CS3626 8K Series 2-3/4" Backset 7 Pin Storeroom 4 Knob and C Rose ANSI Strike Less Core Satin Chrome Finish
Attributes
Ansi: F86
Ansi Function: F86 - Storeroom
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 9/16"
Bolt Protection: 3/4 In.
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 9-5/8"
Box Height Fraction: 3-1/2"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Design: 04C
Door Thickness: 1-3/8 In. - 2 In.
Dust Box: Plastic
Finish: Satin Chrome
Finish Description: Satin Chromium Plated
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: D-Storeroom
Function Family: Storeroom
Grade: Grade 1
Hand: Field Reversible
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1"
Latch Number: 8KL3
Latch Type: Guarded Latch
Lever Knob: Knob
Lever Knob Design: 4 - Knob
Lever Knob Design Name: 4
Leverknob Design: 4 Knob
Leverknob Design Family: Flat Knob
Limited Warranty: 3 Year Warranty
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Storeroom
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 3.5"
Pack Height 2: 10.5"
Pack Length: 9.63"
Pack Length 2: 15"
Pack Qty: 1
Pack Volume: 227.39 in³
Pack Volume 2: 1811.25 in³
Pack Width: 6.75"
Pack Width 2: 11.5"
Pins: 6 to 7
Product Height: 3.5"
Product Length: 9.63"
Product Width: 6.75"
Projection: 2-7/8"
Rose Escutcheon: Rose
Rose Escutcheon Design: C Rose
Roseescutcheon Design: C Rose
Roseescutcheon Dimensions: 2-9/16"
Screws: Combination
Series: 8K Series
Ship Weight: 3.5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 8K3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: 8KS3
Strike Type: ASA
Strike Width: 1-1/8 In.
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 12
Upc: 887838317339
