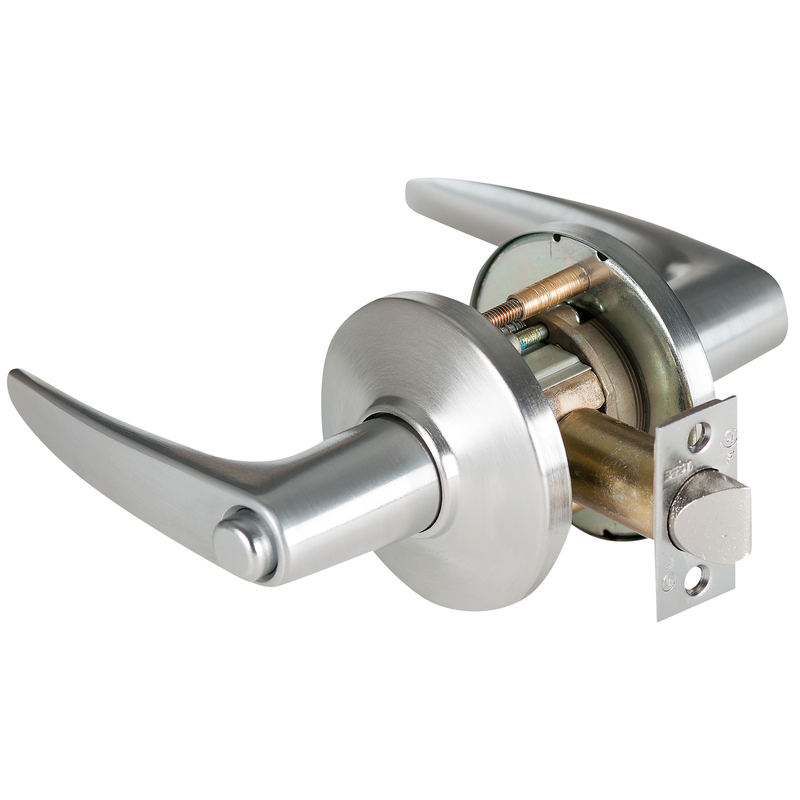

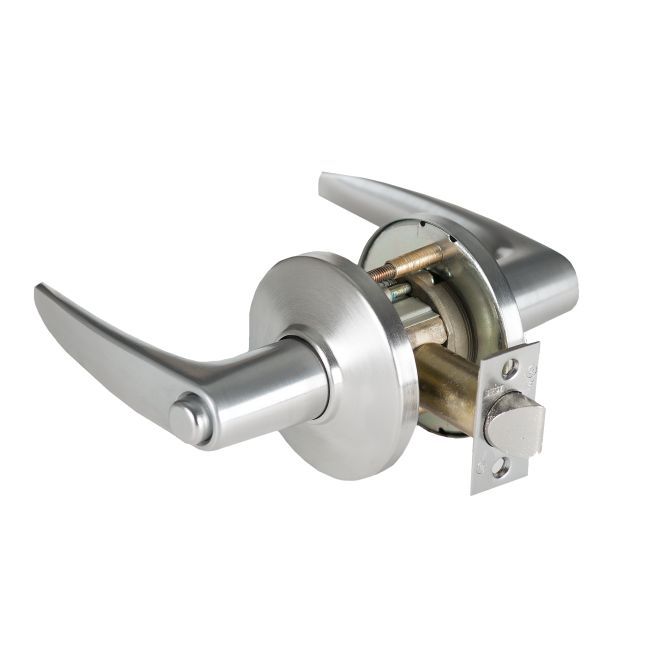

Best 9K30L16DS3626 Best Cylindrical Lock

Attributes

Manufacturer surcharge: $ 0.0

Ansi: F76

Ansi Function: F76 - Privacy

Ansi Function Description: Privacy

Application: CM

Baa Qualified: Yes

Backset: 2-3/4" Backset

Base Material: Brass, Bronze

Bolt Projection: 9/16"

Bolt Protection: 9/16"

Bore Hole Diameter: 2-1/8"

Box Depth Fraction: 8-1/8"

Box Height Fraction: 4"

Box Width Fraction: 6-5/8"

Burglar Rated: No

Category: Mechanical Commercial Locksets

Clazz: SB

Color: Satin Chrome

Commercial Residential: Commercial

Country of Origin: China

Country of origin: USA

Crossbore Size: 2-1/8" Bore and Two 5/8" Through Bolt Holes

Cylinder Type: Non-Keyed

Cylinders Present: Non-Keyed

Design: 16D

Dimension: 3-1/2" Rose

Door Range: 1-3/4" to 2-1/4"

Door Thickness: 1-3/4" - 2-1/4"

Finish: Satin Chrome

Finish Code: 626

Finish Description: Satin Chrome

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: L-Privacy

Function Family: Privacy

Grade: Grade 1

Hand: Not Handed

Handing: Non-handed

Hazardous Material: NO

Installation: Commercial

Item Class Description: 9K Series 2-3/4" Backset Privacy 16 Lever and D Rose with ANSI Strike

Item Type Keyword: Privacy

Latch Backset Dim: 2-3/4"

Latch Bore Diameter: 1"

Latch Faceplate Dimension: 1-1/8" x 2-1/4"

Latch Number: 8KL3SL

Latch Type: Spring Latch (Unguarded)

Lever Knob: Lever

Lever Knob Design: 16 - Lever

Lever Knob Design Family: Curved Lever

Lever Knob Design Name: 16

Leverknob Design: 16 Lever

Leverknob Design Family: Curved Lever

Limited Warranty: 10 Year Warranty

Lock Face Size: 2-1/4" x 1-1/8"

Manufacturer Function: Privacy

Manufacturer Function Description: Operated by rotating the inside knob, rotating the outside knob only when the inside push button is out.

Manufacturer Warranty: Limited 7 Year Mechanical and Finish Warranty

Material: Zinc Alloy with Brass Trim

Maximum Door Thickness: 2-1/4"

Minimum Door Thickness: 1-3/4"

No Of Inners: 1

Number Of Inners: 1

Order_ Qty: 1

Origin: USA

Pack Height: 4"

Pack Height 2: 8.75"

Pack Length: 8.13"

Pack Length 2: 20.5"

Pack Qty: 1

Pack Volume: 215.31 in³

Pack Volume 2: 2242.19 in³

Pack Width: 6.63"

Pack Width 2: 12.5"

Product Height: 4"

Product Length: 8.13"

Product Width: 6.63"

Projection: 2-3/4"

Rose Escutcheon: Rose

Rose Escutcheon Design: D - Rose

Rose Escutcheon Dimensions: 3-1/2"

Roseescutcheon Design: D Rose

Roseescutcheon Dimensions: 3-1/2"

Screws: Combination

Series: 9K Series

Ship Weight: 4.3 lbs.

Std Latch Backset Dim: 2-3/4"

Std Latch Number: 9K3

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8"

Std Strike Number: S3

Std Strike Type: ANSI Curved Lip Strike

Std Strike Width: 1-1/4"

Strike: S3 ANSI Strike

Strike Dimension: 1-1/4" x 4-7/8"

Strike Dimensions: 1-1/4" x 4-7/8"

Strike Height: 4-7/8"

Strike Number: 8KS3

Strike Type: ASA

Strike Width: 1-1/4"

Structure Function: L

Structure Latch Number: 9K3

Structure Outside Finish: 626

Structure Outside Rose: D

Structure Outside Trim: 16

Structure Series: 9K

Structure Strike Number: S3

Subcategory: Cylindrical Locksets

Subtype: Cylindrical

Type: Mechanical Commercial Locksets

Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 9

Upc: 887838148773

Upc Code: 887838148773
