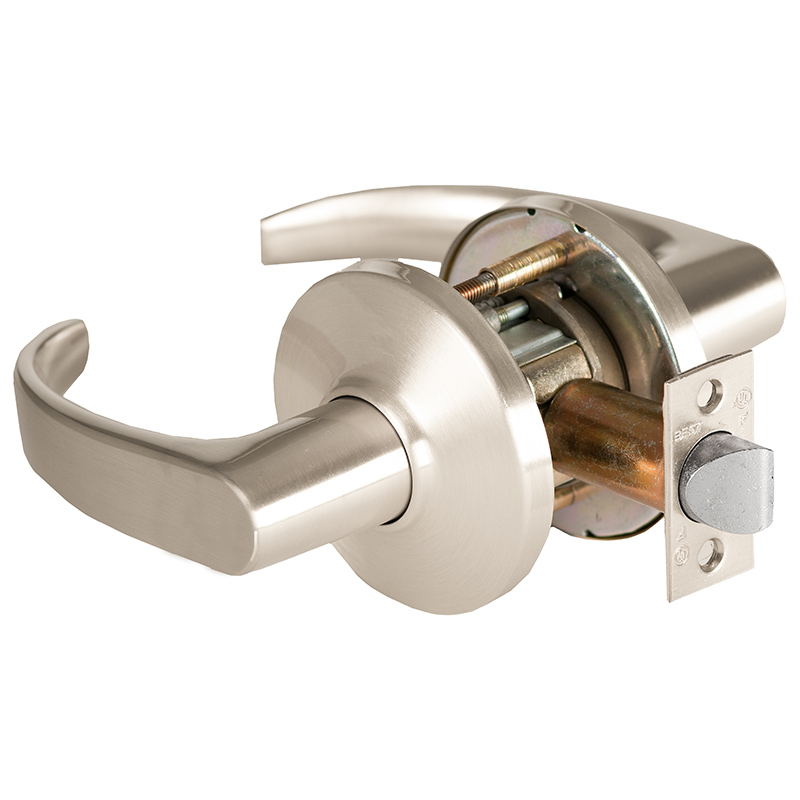

BEST 9K30N14DS3619 Grade 1 Passage Cylindrical Lock offers a robust solution for both commercial and residential needs. This non-keyed lock features a sleek satin nickel finish and a stylish 14 Lever design, making it an ideal choice for those seeking security without compromising aesthetics. Engineered to meet Grade 1 standards, the 9K lock provides superior durability and reliability in high-traffic areas. Designed for easy installation, this cylindrical lock is non-handed and fits doors with a thickness ranging from 1-3/4" to 2-1/4". Its 4-7/8" ANSI strike ensures compatibility with standard door frames, while the deadlatch mechanism guarantees smooth operation. The lock’s low-maintenance design protects critical components from daily wear and tear, translating to decreased overall ownership costs. With a fire rating of 3 hours and UL Listing under BHMA A156.2, the BEST 9K series is built to withstand the demands of any environment. The lock’s curved return lever and D Rose escutcheon complement its functional design, providing both comfort and elegance. Choose the BEST 9K30N14DS3619 for peace of mind and long-lasting performance in your access control solutions.
Grade 1 Passage Cylindrical Lock, 14 Lever, D Rose, Non-Keyed, Satin Nickel Finish, 4-7/8" ANSI Strike, Non-handed
The BEST 9K is the toughest cylindrical lock, built to deliver dependable use and superior security in a wide range of applications. What sets the 9K apart is a low-maintenance design that protects critical components from the damage that comes with every day use and abuse. That translates to a lower cost of ownership over time since the BEST 9K lock requires significantly less maintenance and lasts longer overall. With proven Grade 1 security, easy core interchangeability and a broad array of styles and finishes, the BEST 9K fits exactly where you need it.
Attributes
Ansi: F75
Ansi Function: F75 - Passage
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 9/16"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/8"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4" to 2-1/4"
Finish: 619/US15
Finish Description: 619/US15
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: N-Passage
Function Family: Passage
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: 14
Leverknob Design: 14 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Passage
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.125"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 215.3125 in³
Pack Volume 2: 2242.1875 in³
Pack Width: 6.625"
Pack Width 2: 12.5"
Product Height: 4"
Product Length: 8.125"
Product Width: 6.625"
Projection: 2-3/4"
Rose Escutcheon: Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 9K Series Grade 1 Cylindrical Lever Locks
Ship Weight: 4.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 9K3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
