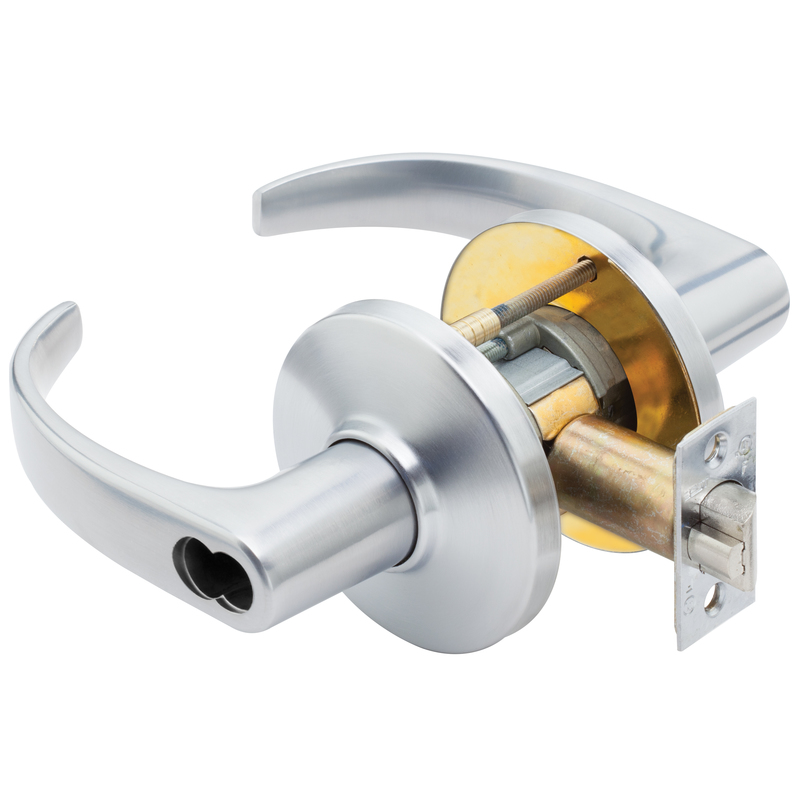

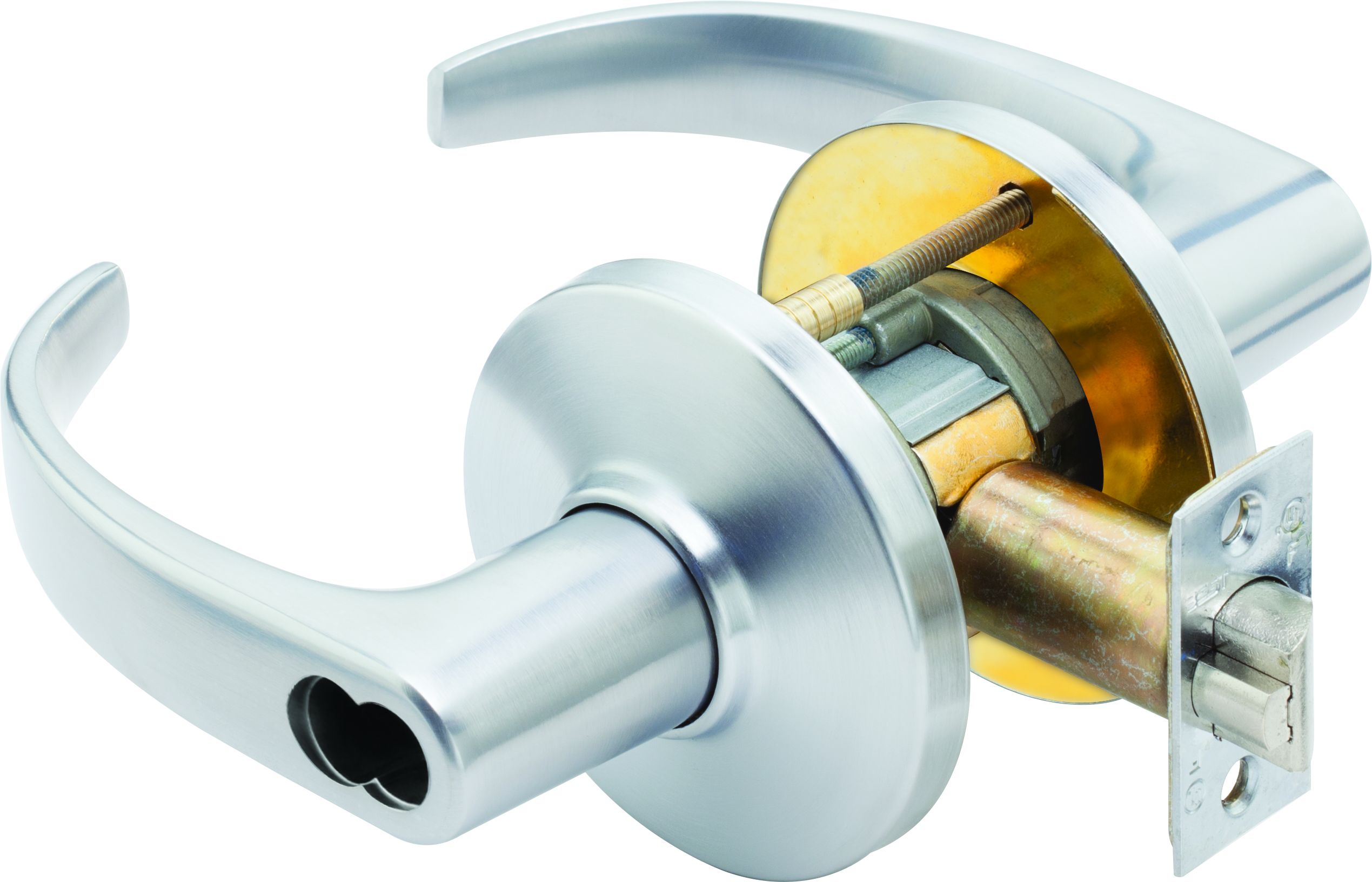

Best 9K37AB14DS3626 9K Series 2-3/4" Backset is a robust entry lockset designed for commercial applications, featuring a 7-pin mechanism for enhanced security. Crafted with precision, this lockset is built to tight tolerances, ensuring the highest level of mechanical security while enhancing the overall integrity of the lock. The satin chrome finish not only adds aesthetic appeal but also provides durability and resistance to wear. This entry lockset accommodates door thicknesses ranging from 1-3/4" to 2-1/4" and is equipped with a strong retractor spring that effectively resists lever sag. The through-bolt mounting studs enhance torque resistance, making it an ideal choice for high-traffic areas. Quick and easy rekeying is facilitated by Best's interchangeable cores, allowing for greater flexibility in access management. The lockset features a 14D design lever and C rose, complemented by a standard ANSI S3 strike. With a crossbore size of 2-1/8" and two 5/8" through bolt holes, installation is straightforward. Additionally, the product is UL Listed, ensuring it meets rigorous safety standards. Backed by a limited one-year mechanical and finish warranty, the Best 9K37AB14DS3626 is a reliable choice for those seeking security without compromising style.
As one of America's favorite hardware brands, BEST® has represented tough, versatile, high-quality locks for more than 90 years. BEST high-quality access solutions feature interchangeable cores and masterkey systems. Known for its American craftsmanship and proven performance, BEST solutions and components form the pinnacle of today's toughest mechanical security solutions. Our unparalleled quality and engineering make us a top choice of distributors and customers worldwide.
Attributes
Manufacturer surcharge: $ 0.0
Alternate Codes: 9K37AB14D-S3-626, 9K37AB14DS3626
Ansi: F109
Ansi Function: F109 - Entry/Office
Ansi Function Description: Entry/Office
Application: CM
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 9/16"
Bolt Protection: 9/16"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/8"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Clazz: SB
Color: Satin Chrome
Commercial Residential: Commercial
Core Housing: 7-Pin
Country of Origin: China
Country of origin: USA
Crossbore Size: 2-1/8" Bore and Two 5/8" Through Bolt Holes
Cylinder Included: No
Cylinder Type: 7 Pin Cylinder, SFIC Cylinder
Cylinders Present: Single Cylinder
Design: 14D
Dimension: 4-3/4" Lever and 3-1/2" Rose
Door Application: Cylindrical Levers
Door Bore Size: 2-1/8"
Door Range: 1-3/4" to 2-1/4"
Door Thickness: 1-3/4" - 2-1/4"
Door Thickness Max: 2-1/4"
Door Thickness Min: 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: AB-Entrance
Function Family: Entrance
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Item Class Description: 9K Series 2-3/4" Backset 7 Pin Entry 14 Lever and D Rose with ANSI Strike Less Core
Item Type Keyword: Entry
Knob/ Lever Design: 14
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4"
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/4
Latch Bolt Throw: 9/16"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 8KL3DL
Latch Type: Dead Latch (Guarded)
Lever Design: Curved Return
Lever Knob: Lever
Lever Knob Design: 14 - Lever
Lever Knob Design Family: Curved Return Lever
Lever Knob Design Name: 14
Leverknob Design: 14 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Year Warranty
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer: Best Access Solutions
Manufacturer Function: Entrance
Manufacturer Function Description: Operated by rotating the inside knob, rotating the outside knob only when the inside push button is out, turning the outside key.
Manufacturer Warranty: Limited 1 Year Mechanical and Finish Warranty
Material: Zinc Alloy with Brass Trim
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 7 Pin
Num Pins: 7-Jun
Number Of Inners: 1
Number Of Pins: 7 Pin Housing
Order_ Qty: 1
Origin: USA
PO date: 2024-09-20
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.13"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 215.31 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 6 to 7
Product Height: 4"
Product Length: 8.13"
Product Width: 6.63"
Projection: 2-3/4"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Rose/ Escutcheon: 3-1/2" Convex
Rose/ Escutcheon Size: 3-1/2"
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 9K Series
Ship Weight: 4.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 9K3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 8KS3
Strike Size: 2-3/4" x 1-1/8"
Strike Type: ASA
Strike Width: 1-1/4"
Structure Cylinder: 7
Structure Function: AB
Structure Latch Number: 9K3
Structure Outside Finish: 626
Structure Outside Rose: D
Structure Outside Trim: 14
Structure Series: 9K
Structure Strike Number: S3
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Best Access
Type: Mechanical Commercial Locksets
Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838148186
Upc Code: 887838148186
