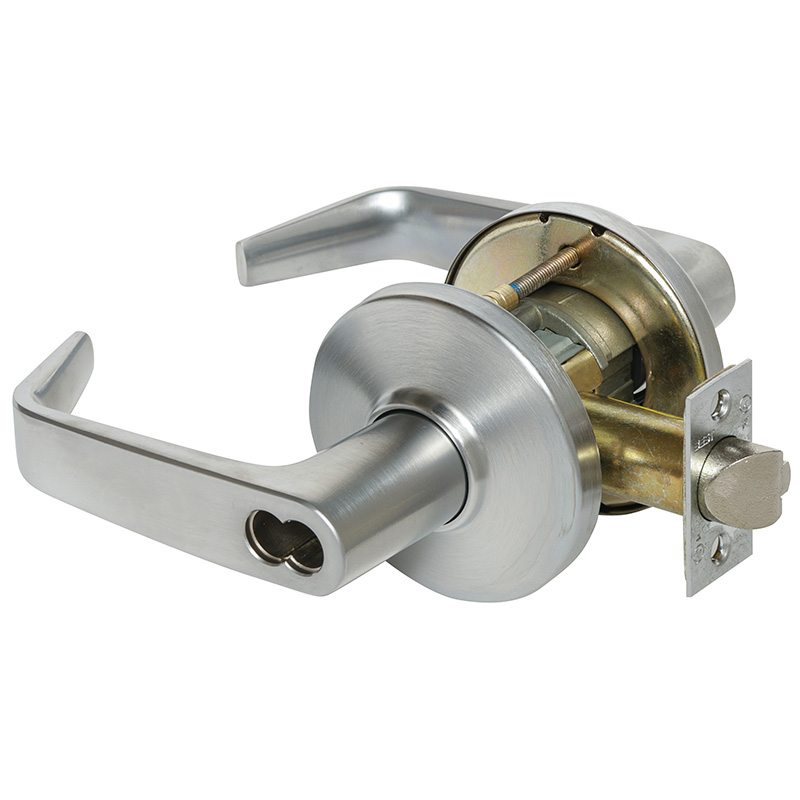

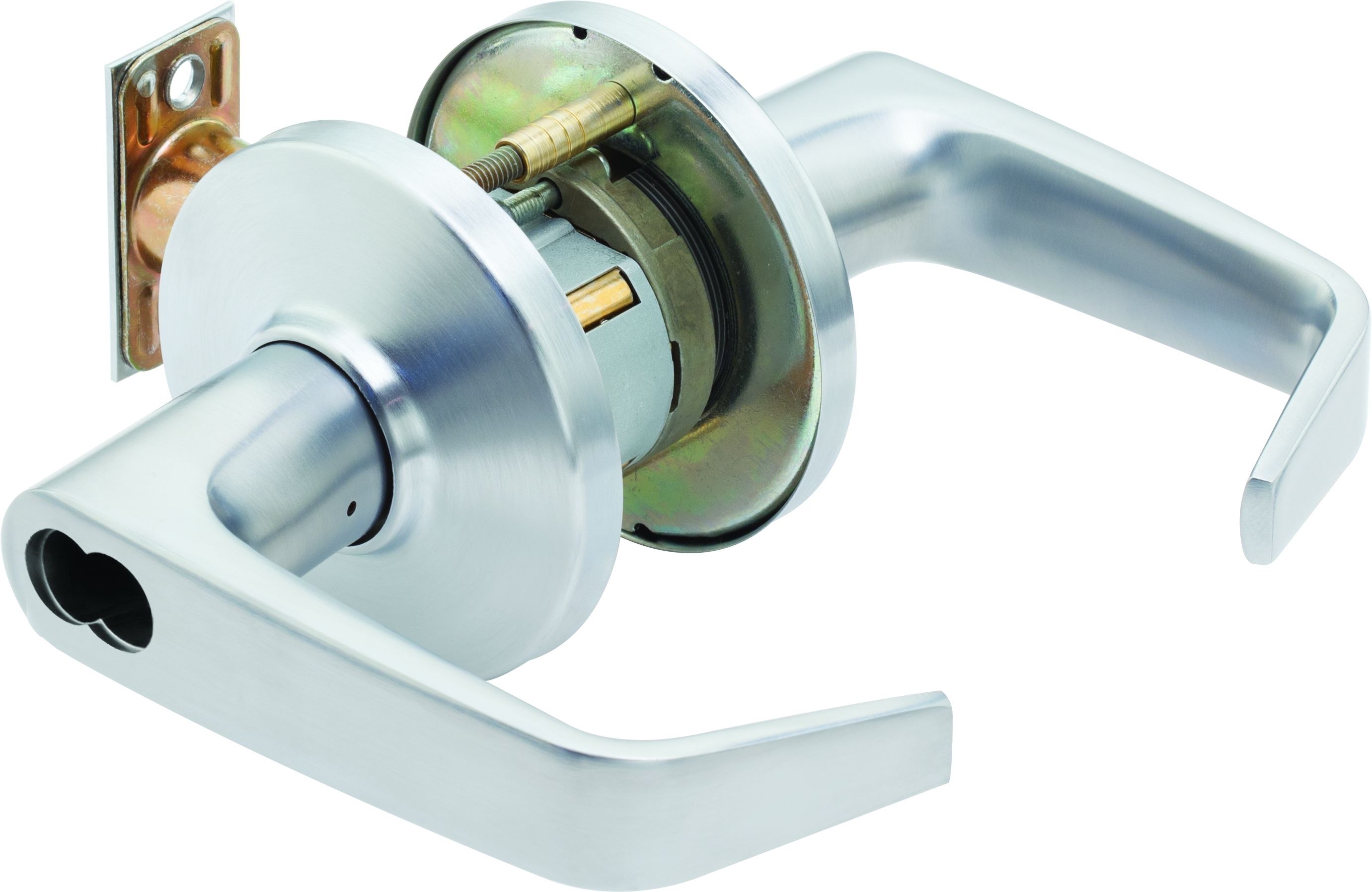

Best 9K37B15DS3626 9K Series 2-3/4" Backset 7 Pin Office 15 Lever and D Rose is a robust solution designed for commercial settings that demand reliability and security. This lockset features a satin chrome finish, enhancing its durability while providing a sleek appearance. Built to tight tolerances, it ensures the highest level of mechanical security, making it an excellent choice for offices and professional environments. With its ANSI A156.2 Grade 1 certification, this lockset stands up to rigorous use. The strong through-bolt mounting studs offer exceptional torque resistance, ensuring stability under pressure. Additionally, sturdy retractor springs prevent lever sag, maintaining the lock's functionality over time. The quick and easy rekeying process with Best interchangeable cores adds convenience, allowing for efficient security updates as needed. This lockset is designed to fit doors ranging from 1-3/4" to 2-1/4" in thickness and features a 2-3/4" backset. The crossbore size of 2-1/8" makes installation straightforward. With a limited 1-year mechanical and finish warranty, this product embodies BEST's commitment to quality and performance, making it a preferred choice for building professionals and discerning homeowners alike.
As one of America's favorite hardware brands, BEST® has represented tough, versatile, high-quality locks for more than 90 years. BEST high-quality access solutions feature interchangeable cores and masterkey systems. Known for its American craftsmanship and proven performance, BEST solutions and components form the pinnacle of today's toughest mechanical security solutions. Our unparalleled quality and engineering make us a top choice of distributors and customers worldwide.
Attributes
Manufacturer surcharge: $ 0.0
Alternate Codes: 9K37B15D-S3-626, 9K37B15DS3626
Ansi: F82
Ansi Function: F82 - Entry
Ansi Function Description: Entry
Application: CM
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 9/16"
Bolt Protection: 9/16"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/8"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Clazz: SB
Color: Satin Chrome
Commercial Residential: Commercial
Core Housing: 7-Pin
Country of Origin: China
Country of origin: USA
Crossbore Size: 2-1/8" Bore and Two 5/8" Through Bolt Holes
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Design: 15D
Dimension: 4-3/4" Lever and 3-1/2" Rose
Door Application: Cylindrical Levers
Door Range: 1-3/4" to 2-1/4"
Door Thickness: 1-3/4" - 2-1/4"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: B-Office
Function Family: Office
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Item Class Description: 9K Series 2-3/4" Backset 7 Pin Office 15 Lever and D Rose with ANSI Strike Less Core
Item Type Keyword: Office
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 8KL3DL
Latch Type: Dead Latch (Guarded)
Lever Design: Contour / Angle Return
Lever Knob: Lever
Lever Knob Design: 15 - Lever
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: 15
Leverknob Design: 15 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer: Best Access Solutions
Manufacturer Function: Office
Manufacturer Function Description: Operated by rotating the inside knob, rotating the outisde knob only when inside push button is out, turning the key in the outside knob.
Manufacturer Warranty: Limited 1 Year Mechanical and Finish Warranty
Material: Zinc Alloy with Brass Trim
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 7 Pin
Num Pins: 7-Jun
Number Of Inners: 1
Number Of Pins: 7 Pin Housing
Order_ Qty: 1
Origin: USA
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.13"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 215.31 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 6 to 7
Product Height: 4"
Product Length: 8.13"
Product Width: 6.63"
Projection: 2-3/4"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Rose/ Escutcheon: 3-1/2" Convex
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 9K Series
Ship Weight: 4.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 9K3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 8KS3
Strike Type: ASA
Strike Width: 1-1/4"
Structure Cylinder: 7
Structure Function: B
Structure Latch Number: 9K3
Structure Outside Finish: 626
Structure Outside Rose: D
Structure Outside Trim: 15
Structure Series: 9K
Structure Strike Number: S3
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838149275
Upc Code: 887838149275
