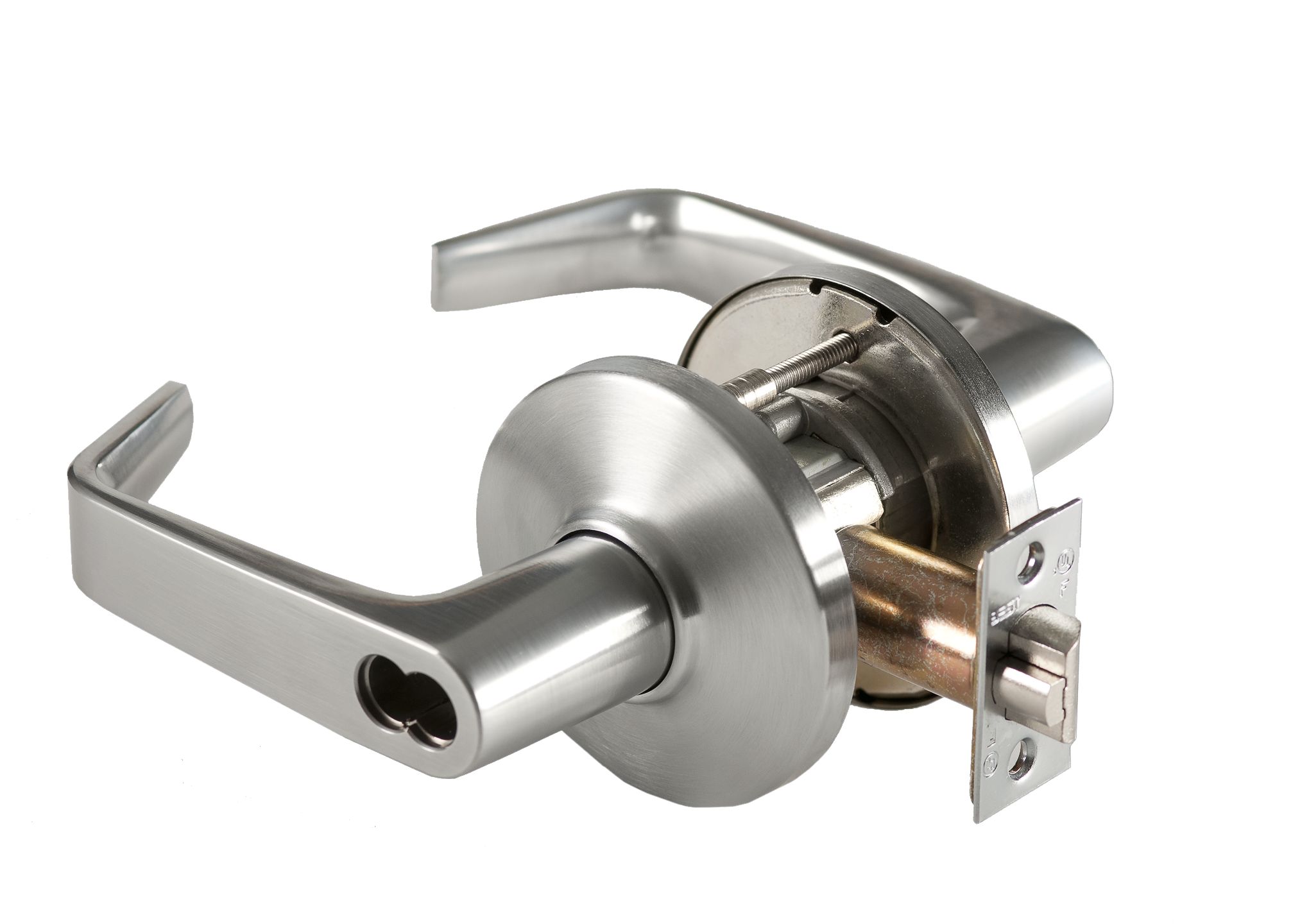

Best 9K37C15DS3626 9K Series 2-3/4" Backset 7 Pin Corridor 15 Lever and D Rose features a robust design tailored for commercial applications. This mechanical lockset is engineered for durability, offering a satin chrome finish that not only enhances aesthetics but also provides resistance to wear and tarnishing, ensuring long-lasting performance. With a backset measurement of 2-3/4" and a crossbore size of 2-1/8", this lockset is compatible with doors ranging from 1-3/4" to 2-1/4" thick. The reversible handing allows for flexible installation options, making it a versatile choice for various door configurations. Featuring a 7-pin housing for enhanced security, this lockset is ideal for corridor applications where controlled access is essential. The 3-1/2" rose design complements the 15D lever, providing a blend of functionality and elegance. Additionally, it includes an ANSI S3 strike for reliable engagement. Constructed from durable zinc alloy with brass trim, the Best 9K37C15DS3626 is backed by a limited 7-year mechanical and finish warranty, ensuring peace of mind for building professionals and homeowners alike. Choose this lockset for a blend of security, style, and reliability in your next project.
Attributes
Ansi: F88
Ansi Function: F88 - Entry/Restroom
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 9/16"
Bolt Protection: 9/16"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/8"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Crossbore Size: 2-1/8" Bore and Two 5/8" Through Bolt Holes
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Double Cylinder
Design: 15D
Dimension: 3-1/2" Rose
Door Range: 1-3/4" to 2-1/4"
Door Thickness: 1-3/4" - 2-1/4"
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: C-Corridor
Function Family: Dormitory
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 8KL3DL
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: 15 - Lever
Lever Knob Design Name: 15
Leverknob Design: 15 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Apartment
Manufacturer Warranty: Limited 7 Year Mechanical and Finish Warranty
Material: Zinc Alloy with Brass Trim
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 7 Pin Housing
Order_ Qty: 1
Origin: USA
PO date: 2024-09-18
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.13"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 215.31 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 6 to 7
Product Height: 4"
Product Length: 8.13"
Product Width: 6.63"
Projection: 2-3/4"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 9K Series
Ship Weight: 4.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 9K3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 8KS3
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838149268
