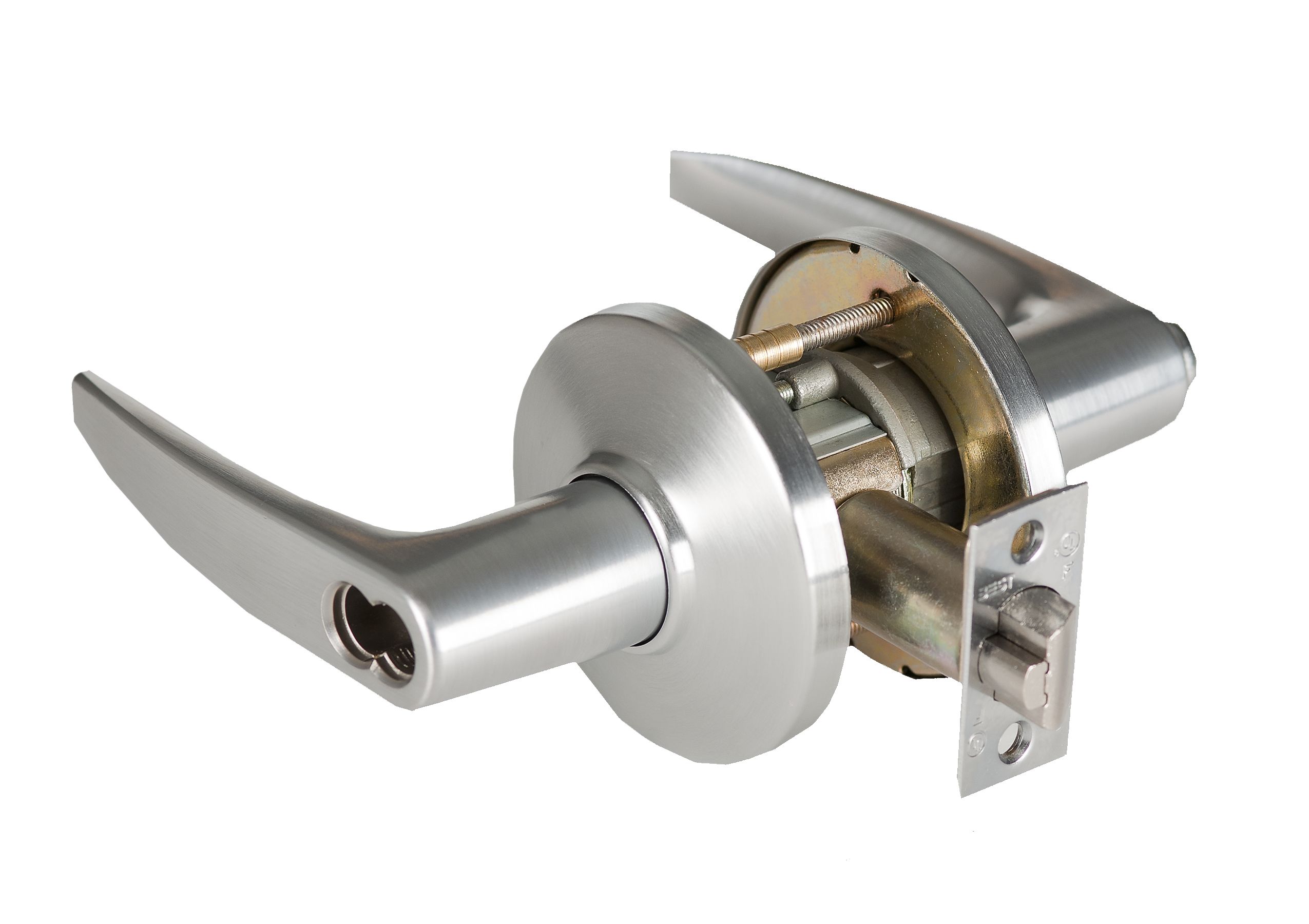

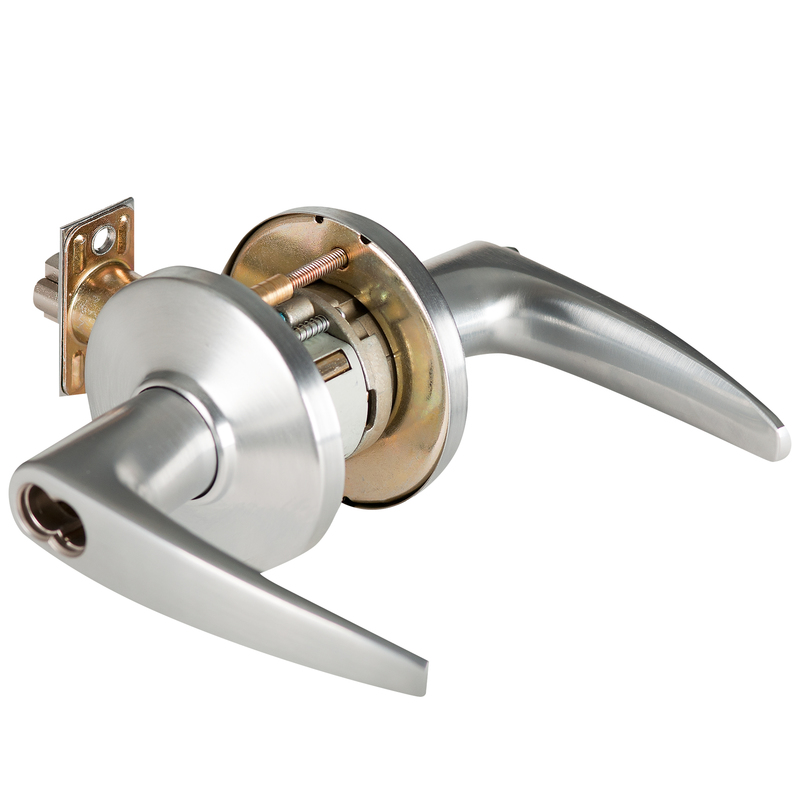

Best 9K37D16DS3626 9K Series 2-3/4" Backset 7 Pin Storeroom Lock combines robust security with elegant design, making it an ideal choice for commercial applications. This mechanical lockset features a storeroom function, ensuring controlled access while maintaining a sleek appearance with its satin chrome finish. The unit is crafted from durable zinc alloy with brass trim, providing both strength and style. Designed for a 2-3/4" backset, the lockset accommodates standard door ranges from 1-3/4" to 2-1/4" thick. The 4-3/4" lever and 3-1/2" rose dimensions are complemented by a 14 lever design, offering an ergonomic and attractive grip. With a crossbore size of 2-1/8" and two 5/8" through bolt holes, installation is straightforward, ensuring a secure fit. The 7-pin housing enhances security, while the reversible handing allows for versatile installation options. This lockset is also backed by a limited 7-year mechanical and finish warranty, underscoring Best's commitment to quality. The included S3 ANSI strike ensures compatibility with standard door frames. Elevate your building's security with the reliable and stylish Best 9K37D16DS3626 lockset.
Attributes
Manufacturer surcharge: $ 0.0
Ansi: F86
Ansi Function: F86 - Storeroom
Ansi Function Description: Storeroom
Application: CM
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 9/16"
Bolt Protection: 9/16"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/8"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Clazz: SB
Color: Satin Chrome
Commercial Residential: Commercial
Country of Origin: China
Country of origin: USA
Crossbore Size: 2-1/8" Bore and Two 5/8" Through Bolt Holes
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Design: 16D
Dimension: 4-3/4" Lever and 3-1/2" Rose
Door Range: 1-3/4" to 2-1/4"
Door Thickness: 1-3/4" - 2-1/4"
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: D-Storeroom
Function Family: Storeroom
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Item Class Description: 9K Series 2-3/4" Backset 7 Pin Storeroom 16 Lever and D Rose with ANSI Strike Less Core
Item Type Keyword: Storeroom
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 8KL3DL
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: 16 - Lever
Lever Knob Design Family: Curved Lever
Lever Knob Design Name: 16
Leverknob Design: 16 Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Storeroom
Manufacturer Function Description: Operated by turning the key in the outside knob, rotating the inside knob.
Manufacturer Warranty: Limited 7 Year Mechanical and Finish Warranty
Material: Zinc Alloy with Brass Trim
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 7 Pin Housing
Num Pins: 7-Jun
Number Of Inners: 1
Number Of Pins: 7 Pin Housing
Order_ Qty: 1
Origin: USA
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.13"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 215.31 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 6 to 7
Product Height: 4"
Product Length: 8.13"
Product Width: 6.63"
Projection: 2-3/4"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 9K Series
Ship Weight: 4.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 9K3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 8KS3
Strike Type: ASA
Strike Width: 1-1/4"
Structure Cylinder: 7
Structure Function: D
Structure Latch Number: 9K3
Structure Outside Finish: 626
Structure Outside Rose: D
Structure Outside Trim: 16
Structure Series: 9K
Structure Strike Number: S3
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838150219
Upc Code: 887838150219
