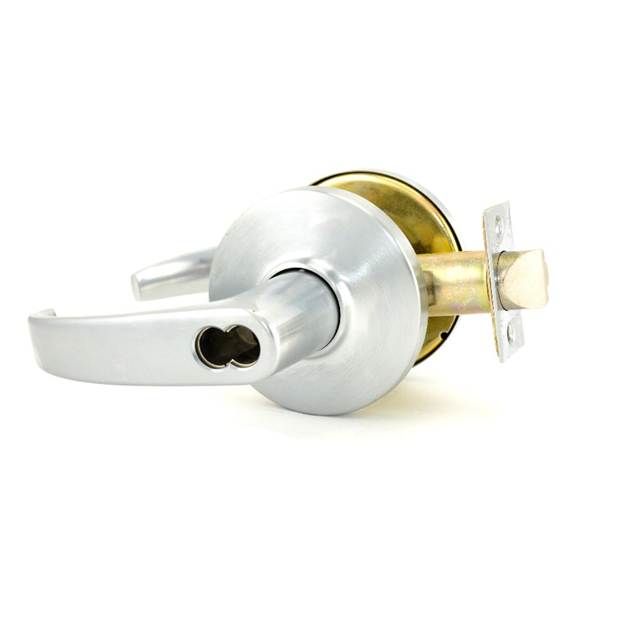

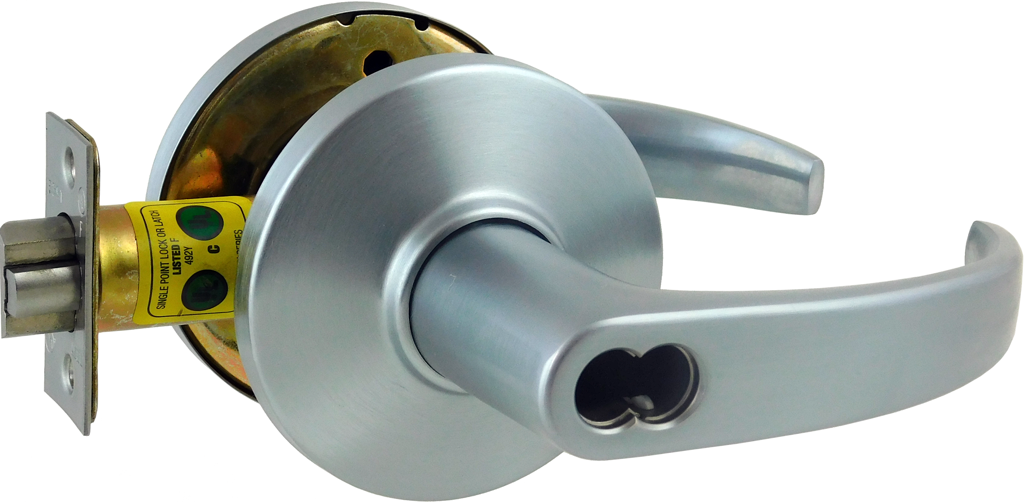

Best 9K37IN14DS3626 9K Series 2-3/4" Backset 7 Pin Intruder 14 Lever and D Rose with ANSI Strike features a robust design that ensures top-tier mechanical security for commercial applications. Crafted with precision, this lockset is built to tight tolerances, enhancing the overall integrity and durability of the locking mechanism. The satin chrome finish not only adds a sleek aesthetic but also provides long-lasting resilience against wear. This model includes strong through-bolt mounting studs that offer exceptional torque resistance, while the powerful retractor springs are designed to prevent lever sag, ensuring reliable functionality over time. Its 7-pin configuration allows for quick and easy rekeying with Best's interchangeable cores, making it a versatile choice for various security needs. Designed for doors ranging from 1-3/4" to 2-1/4" thick, the 9K Series lockset is ANSI A156.2 Grade 1 certified, guaranteeing superior performance in high-traffic environments. The 4-3/4" lever and 3-1/2" rose provide an ergonomic grip, and the reversible handing accommodates any installation requirement. With a limited 1-year warranty on both mechanical and finish aspects, the Best 9K37IN14DS3626 is a reliable choice for your security needs.
As one of America's favorite hardware brands, BEST® has represented tough, versatile, high-quality locks for more than 90 years. BEST high-quality access solutions feature interchangeable cores and masterkey systems. Known for its American craftsmanship and proven performance, BEST solutions and components form the pinnacle of today's toughest mechanical security solutions. Our unparalleled quality and engineering make us a top choice of distributors and customers worldwide.
Attributes
Alternate Codes: 9K37IN14D-S3-626, 9K37IN14DS3626
Ansi: F11
Ansi Function: F110 - Classroom Intruder
Ansi Function Description: Exit
Application: CM
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 9/16"
Bolt Protection: 9/16"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/8"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Clazz: SB
Color: Satin Chrome
Commercial Residential: Commercial
Core Housing: 7-Pin
Country of Origin: China
Country of origin: USA
Crossbore Size: 2-1/8" Bore and Two 5/8" Through Bolt Holes
Cylinder Included: No
Cylinder Type: 7 Pin Cylinder, SFIC Cylinder
Cylinders Present: Double Cylinder
Design: 14D
Dimension: 4-3/4" Lever and 3-1/2" Rose
Door Application: Cylindrical Levers
Door Bore Size: 2-1/8"
Door Range: 1-3/4" to 2-1/4"
Door Thickness: 1-3/4" - 2-1/4"
Door Thickness Max: 2-1/4"
Door Thickness Min: 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: IN-Intruder
Function Family: Special
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Item Class Description: 9K Series 2-3/4" Backset 7 Pin Intruder 14 Lever and D Rose with ANSI Strike Less Core
Item Type Keyword: Intruder
Knob/ Lever Design: 14
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4"
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/4
Latch Bolt Throw: 9/16"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 8KL3DL
Latch Type: Dead Latch (Guarded)
Lever Design: Curved Return
Lever Knob: Lever
Lever Knob Design: 14 - Lever
Lever Knob Design Family: Curved Return Lever
Lever Knob Design Name: 14
Leverknob Design: 14 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Year Warranty
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer: Best Access Solutions
Manufacturer Function: Intruder
Manufacturer Function Description: Operated by rotating the inside lever, rotating outside lever only when not locked by inside or outside key.
Manufacturer Warranty: Limited 1 Year Mechanical and Finish Warranty
Material: Zinc Alloy with Brass Trim
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 7 Pin
Num Pins: 7-Jun
Number Of Inners: 1
Number Of Pins: 7 Pin Housing
Order_ Qty: 1
Origin: USA
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.13"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 215.31 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 6 to 7
Product Height: 4"
Product Length: 8.13"
Product Width: 6.63"
Projection: 2-3/4"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Rose/ Escutcheon: 3-1/2" Convex
Rose/ Escutcheon Size: 3-1/2"
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 9K Series
Ship Weight: 4.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 9K3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 8KS3
Strike Size: 2-3/4" x 1-1/8"
Strike Type: ASA
Strike Width: 1-1/4"
Structure Cylinder: 7
Structure Function: IN
Structure Latch Number: 9K3
Structure Outside Finish: 626
Structure Outside Rose: D
Structure Outside Trim: 14
Structure Series: 9K
Structure Strike Number: S3
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Best Access
Type: Mechanical Commercial Locksets
Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838149459
