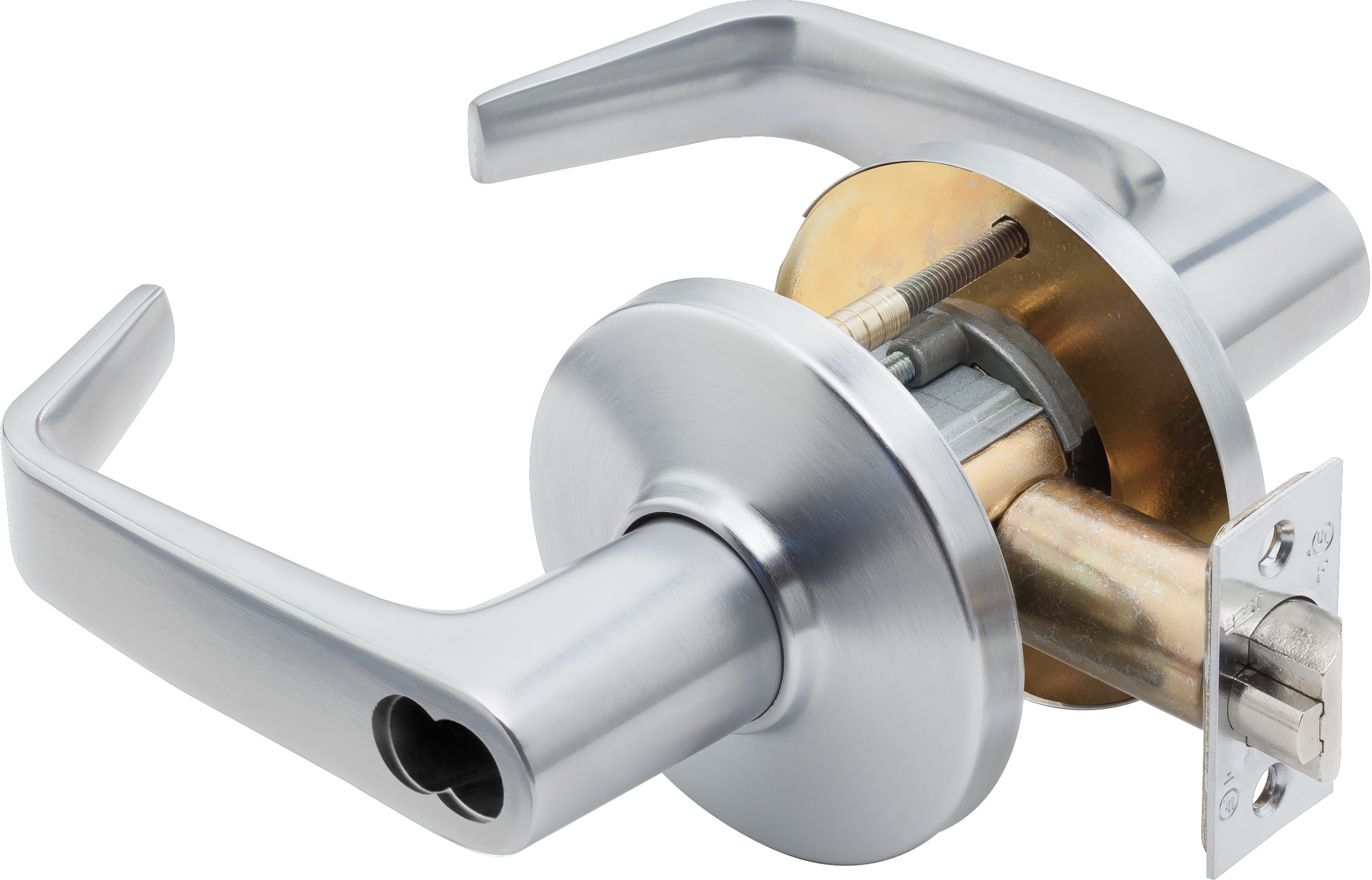

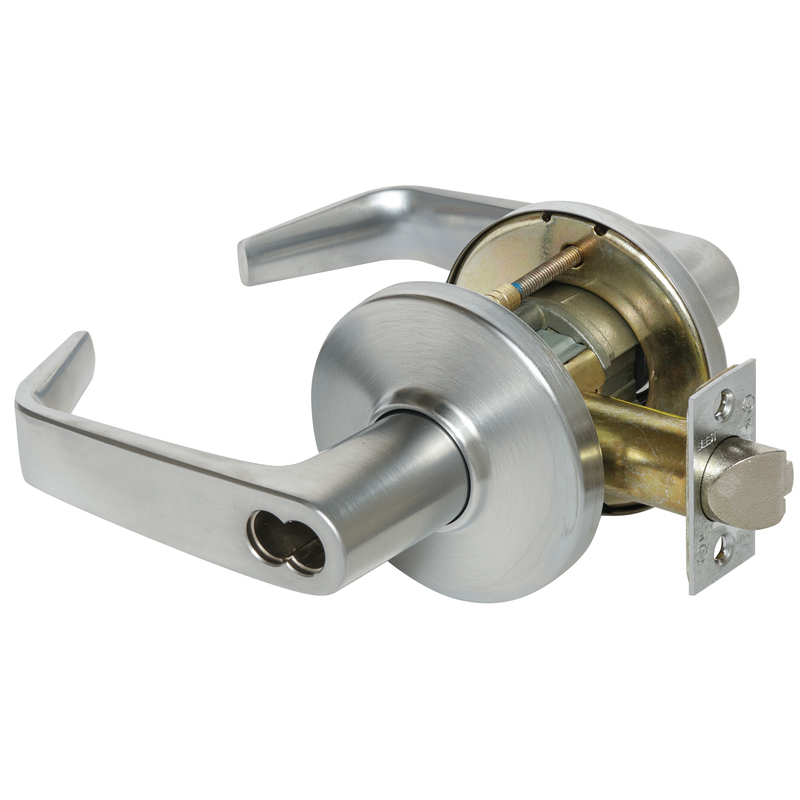

Best 9K37T15DS3626 9K Series 2-3/4" Backset 7 Pin Dormitory Lock combines durability and versatility, making it an ideal choice for high-traffic environments like dormitories. Crafted with precision, this lockset features a satin chrome finish that not only enhances its aesthetic appeal but also ensures long-lasting performance. Engineered to meet ANSI A156.2 Grade 1 standards, the 9K37T15DS3626 showcases built-to-tight tolerances that provide the highest level of mechanical security. The strong through-bolt mounting studs deliver exceptional torque resistance, while the robust retractor springs effectively combat lever sag, ensuring reliable operation over time. Quick and easy rekeying is facilitated by Best’s interchangeable cores, offering convenience for property managers and maintenance teams. With a 2-3/4" backset and designed to fit doors ranging from 1-3/4" to 2-1/4" in thickness, this lockset is adaptable to various applications. The 4-3/4" lever and 3-1/2" rose are designed for enhanced usability, while the reversible handing accommodates different door configurations. The lockset's 7-pin design provides added security, making it a trusted option for any building professional seeking a reliable locking solution.
As one of America's favorite hardware brands, BEST® has represented tough, versatile, high-quality locks for more than 90 years. BEST high-quality access solutions feature interchangeable cores and masterkey systems. Known for its American craftsmanship and proven performance, BEST solutions and components form the pinnacle of today's toughest mechanical security solutions. Our unparalleled quality and engineering make us a top choice of distributors and customers worldwide.
Attributes
Manufacturer surcharge: $ 0.0
Alternate Codes: 9K37T15D-S3-626, 9K37T15DS3626
Ansi: F90
Ansi Function: F90 - Dormitory
Ansi Function Description: Dormitory
Application: CM
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 9/16"
Bolt Protection: 9/16"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/8"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Category: Mechanical Commercial Locksets
Clazz: SB
Color: Satin Chrome
Commercial Residential: Commercial
Core Housing: 7-Pin
Country of Origin: China
Country of origin: USA
Crossbore Size: 2-1/8" Bore and Two 5/8" Through Bolt Holes
Cylinder Included: No
Cylinder Type: 7 Pin Cylinder, SFIC Cylinder
Cylinders Present: Single Cylinder
Design: 15D
Dimension: 4-3/4" Lever and 3-1/2" Rose
Door Application: Cylindrical Levers
Door Bore Size: 2-1/8"
Door Range: 1-3/4" to 2-1/4"
Door Thickness: 1-3/4" - 2-1/4"
Door Thickness Max: 2-1/4"
Door Thickness Min: 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: T-Dormitory
Function Family: Dormitory
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Item Class Description: 9K Series 2-3/4" Backset 7 Pin Dormitory 15 Lever and D Rose with ANSI Strike Less Core
Item Type Keyword: Dormitory
Knob/ Lever Design: 15
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4"
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/4
Latch Bolt Throw: 9/16"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 8KL3DL
Latch Type: Dead Latch (Guarded)
Lever Design: Contour / Angle Return
Lever Knob: Lever
Lever Knob Design: 15 - Lever
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: 15
Leverknob Design: 15 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer: Best Access Solutions
Manufacturer Function: Dormitory
Manufacturer Function Description: Operated by rotating the inside knob, rotating the outside knob when locked by key or push button.
Manufacturer Warranty: Limited 1 Year Mechanical and Finish Warranty
Material: Zinc Alloy with Brass Trim
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 7 Pin
Num Pins: 7-Jun
Number Of Inners: 1
Number Of Pins: 7 Pin Housing
Order_ Qty: 1
Origin: USA
PO date: 2024-11-23
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.13"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 215.31 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 6 to 7
Product Height: 4"
Product Length: 8.13"
Product Width: 6.63"
Projection: 2-3/4"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Rose/ Escutcheon: 3-1/2" Convex
Rose/ Escutcheon Size: 3-1/2"
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 9K Series
Ship Weight: 4.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 9K3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 8KS3
Strike Size: 2-3/4" x 1-1/8"
Strike Type: ASA
Strike Width: 1-1/4"
Structure Cylinder: 7
Structure Function: T
Structure Latch Number: 9K3
Structure Outside Finish: 626
Structure Outside Rose: D
Structure Outside Trim: 15
Structure Series: 9K
Structure Strike Number: S3
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Supplier: Best Access
Type: Mechanical Commercial Locksets
Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838194930
Upc Code: 887838194930
