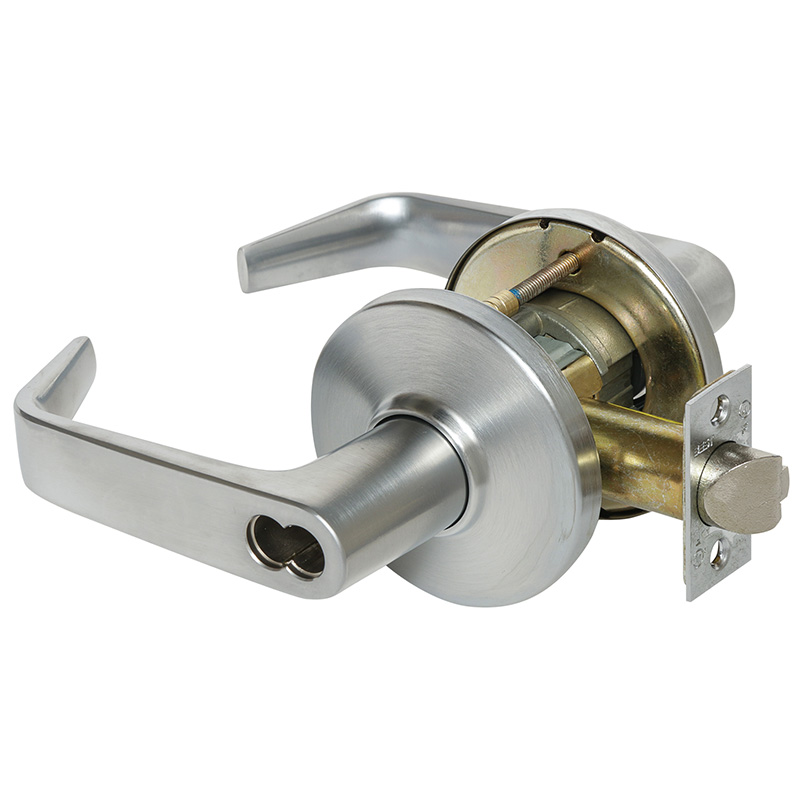

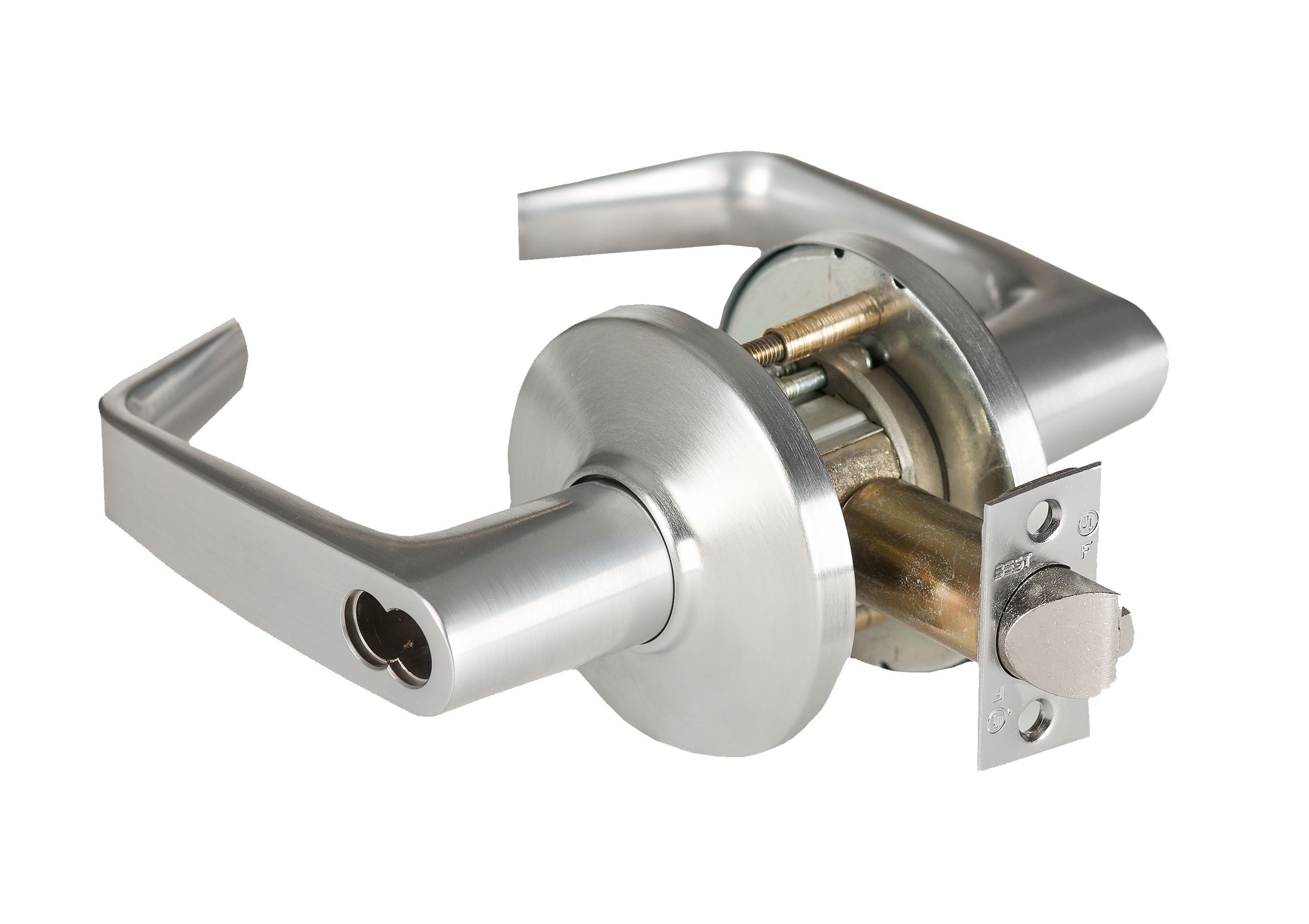

The BEST 9K is the toughest cylindrical lock, built to deliver dependable use and superior security in a wide range of applications. What sets the 9K apart is a low-maintenance design that protects critical components from the damage that comes with every day use and abuse. That translates to a lower cost of ownership over time since the BEST 9K lock requires significantly less maintenance and lasts longer overall. With proven Grade 1 security, easy core interchangeability and a broad array of styles and finishes, the BEST 9K fits exactly where you need it.
Attributes
Ansi: F86
Ansi Function: F86 - Storeroom
Ansi Function Description: Storeroom
Baa Qualified: Yes
Backset: 3-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 9/16"
Bolt Protection: 9/16"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/8"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Design: 15D
Door Thickness: 1-3/4" - 2-1/4"
Finish: 626/US26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: D-Storeroom
Function Family: Storeroom
Grade: Grade 1
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Latch Backset Dim: 3-3/4"
Latch Bore Diameter: 1"
Latch Number: 8KL4DL
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: 15 - Lever
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: 15
Leverknob Design: 15 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Storeroom
Manufacturer Function Description: Operated by turning the key in the outside knob, rotating the inside knob.
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
Num Pins: 7-Jun
Origin: USA
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.13"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 215.31 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 6 to 7
Product Height: 4"
Product Length: 8.13"
Product Width: 6.63"
Projection: 2-3/4"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Escutcheon Dimensions: 3-1/2"
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 9K Series Grade 1 Cylindrical Lever Locks
Ship Weight: 4.3 lbs.
Std Latch Backset Dim: 3-3/4"
Std Latch Number: 9K4
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 8KS3
Strike Type: ASA
Strike Width: 1-1/4"
Structure Cylinder: 7
Structure Function: D
Structure Latch Number: 9K4
Structure Outside Finish: 626
Structure Outside Rose: D
Structure Outside Trim: 15
Structure Series: 9K
Structure Strike Number: S3
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838196415
Upc Code: 887838196415
