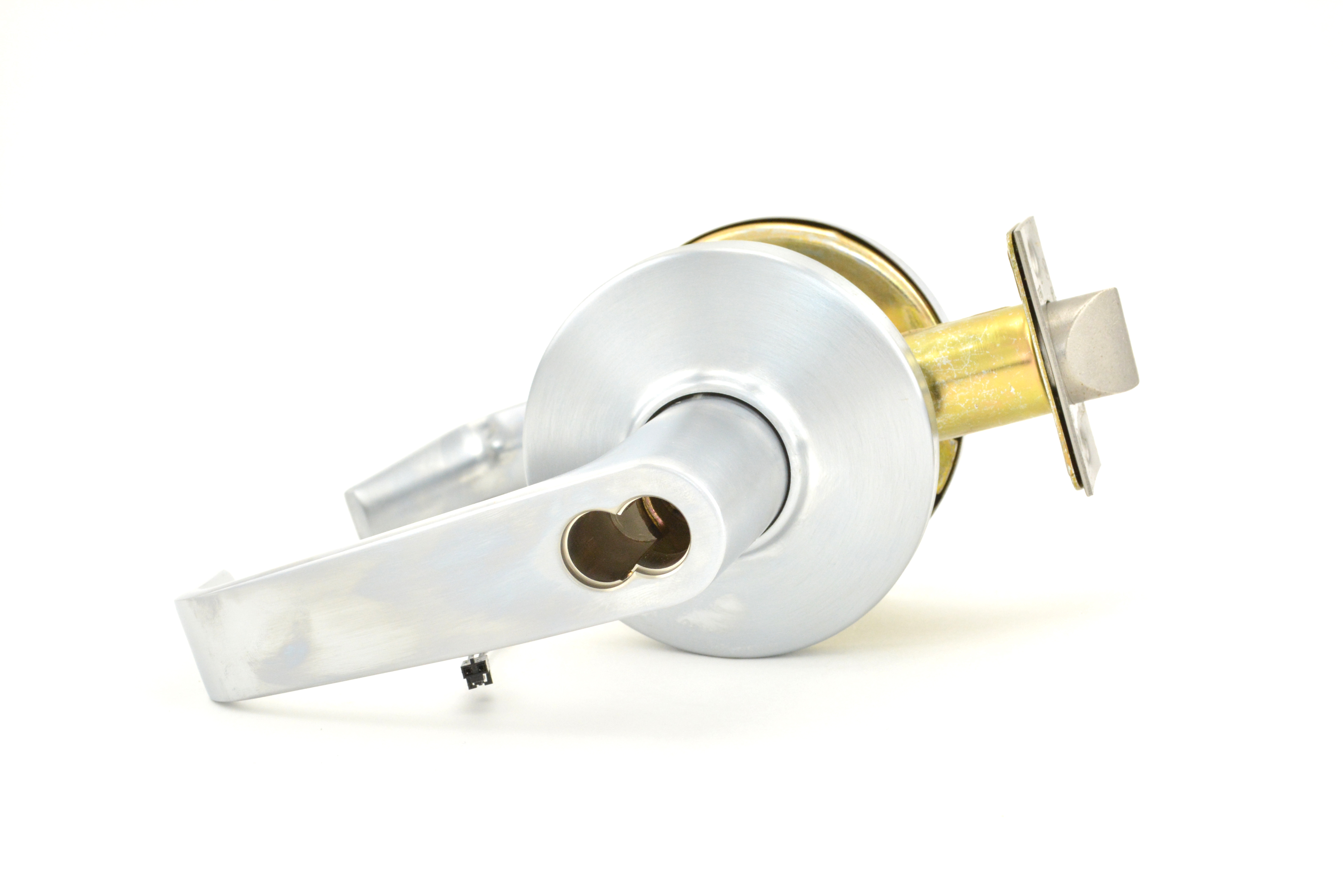

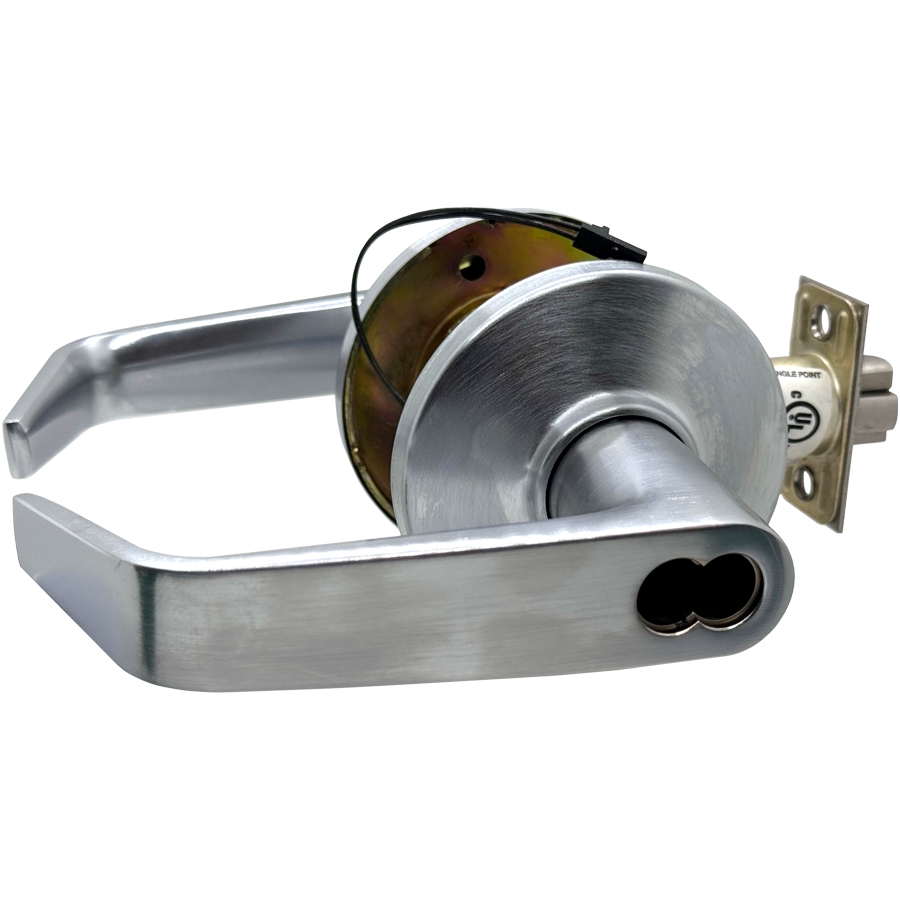

Best 9KW37DEU15DS3626 9KW Electromechanical Lock offers an exceptional combination of security and convenience, making it ideal for commercial applications. With a robust 2-3/4" backset and a cylindrical chassis, this lock is designed for doors with a thickness ranging from 1-3/4" to 2-1/4". The 15D lever and D rose design, finished in satin chrome, not only enhances the aesthetic appeal but also ensures durability. This lock features a 7-pin storeroom function that is electrically unlocked, providing easy access while maintaining a high level of security. Built to tight tolerances, it enhances the integrity of the locking mechanism, while strong through-bolt mounting studs offer excellent torque resistance. The lock's strong retractor springs help resist lever sag, ensuring reliable operation over time. Rekeying is quick and easy with Best's interchangeable cores, allowing for efficient management of security. Rated ANSI A156.2 Grade 1, the 9KW electromechanical lock meets the highest standards of mechanical security. Additionally, it is UL listed for GYQS, ensuring compliance with safety regulations. With a limited one-year warranty on mechanical and finish, this lock is a trusted choice for building professionals and knowledgeable homeowners alike.
As one of America's favorite hardware brands, BEST® has represented tough, versatile, high-quality locks for more than 90 years. BEST high-quality access solutions feature interchangeable cores and masterkey systems. Known for its American craftsmanship and proven performance, BEST solutions and components form the pinnacle of today's toughest mechanical security solutions. Our unparalleled quality and engineering make us a top choice of distributors and customers worldwide.
Attributes
Manufacturer surcharge: $ 0.0
Alternate Codes: 9KW37DEU15D-S3-626, 9KW37DEU15DS3626
Amp Draw: 0.18
Application: CM
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass or Bronze
Bolt Projection: 9/16"
Bolt Protection: 9/16"
Category: Commercial Electronic Devices
Chassis Type: Cylindrical Chassis
Clazz: SB
Color: Satin Chrome
Country of Origin: China
Country of origin: USA
Crossbore Size: 2-1/8" Bore and Two 5/8" Through Bolt Holes
Cylinder Included: No
Cylinder Type: 7 Pin Cylinder, SFIC Cylinder
Design: 15D
Dimension: 4-3/4" Lever and 3-1/2" Rose
Door Bore Size: 2-1/8"
Door Range: 1-3/4" to 2-1/4"
Door Thickness: 1-3/4" - 2-1/4"
Door Thickness Max: 2-1/4"
Door Thickness Min: 1-3/4"
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: DEU-Electronically Unlocked
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Item Class Description: 9KW Electromechanical Lock 2-3/4" Backset 7 Pin Storeroom Electrically Unlocked 15 Lever and D Rose with ANSI Strike
Item Type Keyword: Electromechanical
Knob/ Lever Design: 15
Knob/ Lever Style: Lever
Latch Backset: 2-3/4"
Latch Backset Dim: 2-3/4"
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Throw: 9/16"
Latch Bolt Type: Deadlatch
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 8KL3DL
Latch Type: Dead Latch (Guarded)
Lever Knob Design: 15 - Lever
Lever Style: Angled Return Lever
Leverknob Design: 15 - Lever
Limited Warranty: 3 Years
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4" X 1-1/8"
Manufacturer Warranty: Limited 1 Year Mechanical and Finish Warranty
Material: Zinc Alloy with Brass Trim
No Of Inners: 1
Num Pins: 7
Number Of Inners: 1
Number Of Pins: 7 Pin Housing
Operating Voltage: 24VDC
Order_ Qty: 1
Origin: USA
PO date: 2024-09-26
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.13"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 215.31 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 7
Power: Hard Wired
Power Supply: Wired
Rose Escutcheon Design: D - Rose
Rose/ Escutcheon Size: 3-1/2"
Rose/ Escutcheon Style: Rose
Roseescutcheon Design: D - Rose
Screws: Combination
Series: 9K Series
Ship Weight: 4.3 lbs.
Std Latch Number: 8KL3DL
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 8KS3
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Dimension: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 8KS3
Strike Size: 2-3/4" x 1-1/8"
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Commercial Electronic Locksets
Subtype: Electronic Locksets
Supplier: Best Access
Type: Electronics
Ul Listing Type: UL listed for GYQS
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838202024
Upc Code: 887838268723
