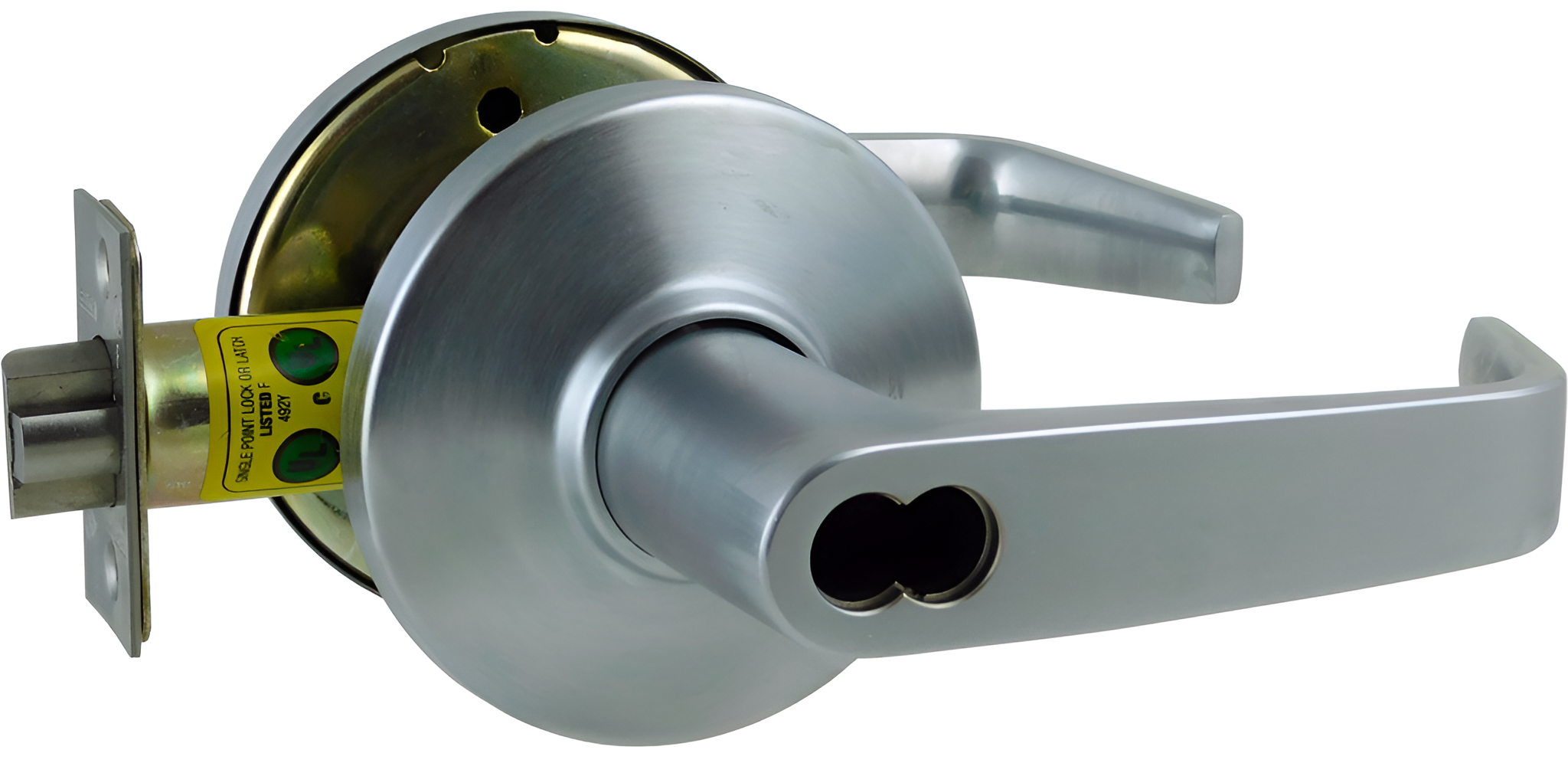

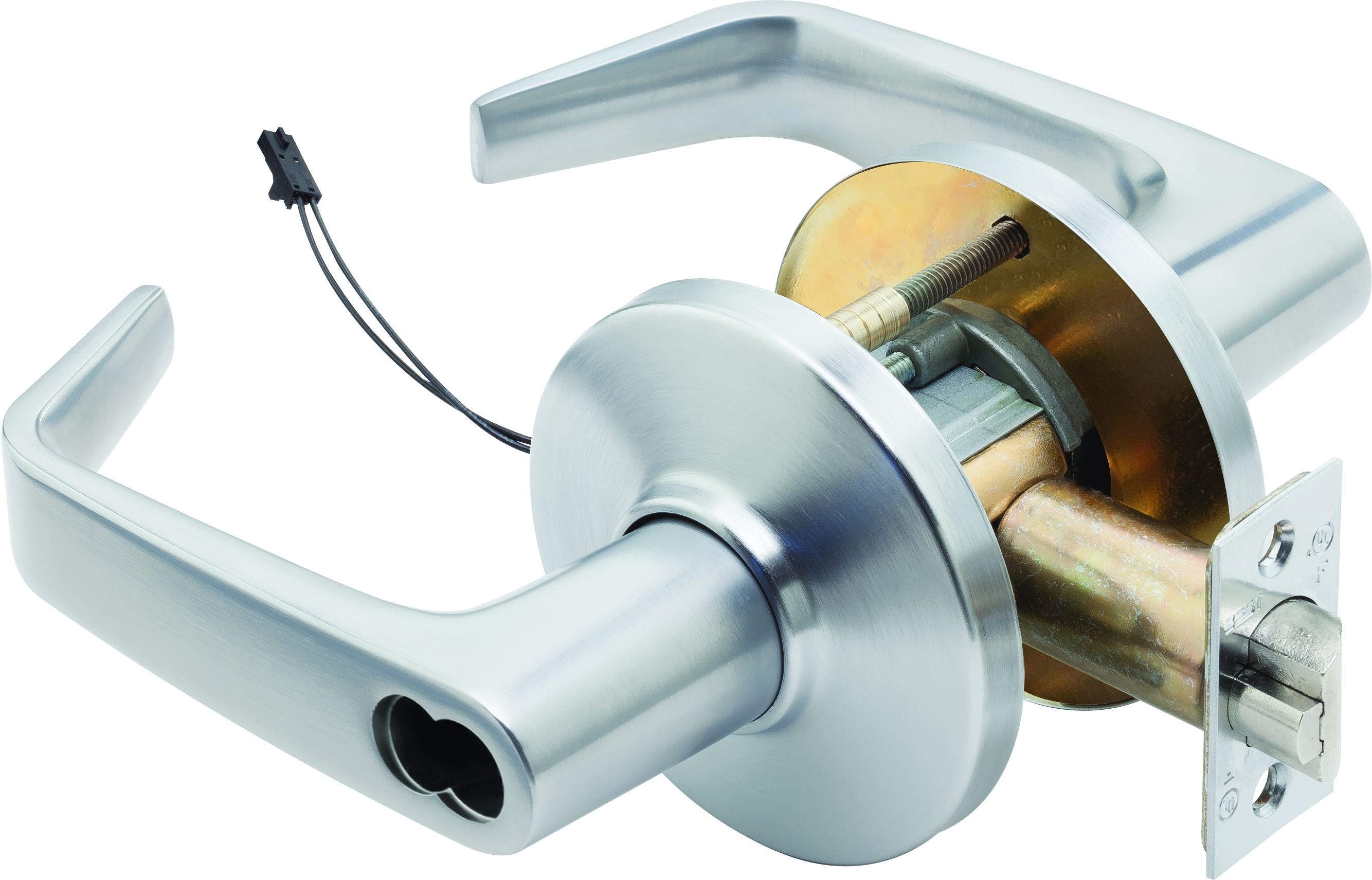

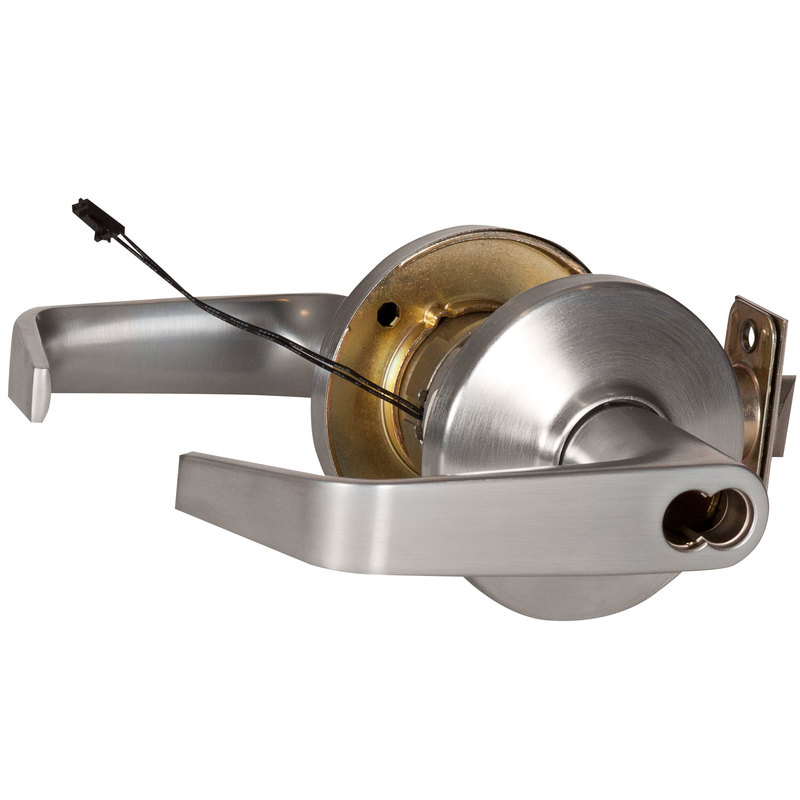

Best 9KW37DEU15DS3626RQE 9KW Electromechanical Lock combines advanced security features with elegant design. This lockset is engineered for commercial use, featuring a 2-3/4" backset and a cylindrical chassis that ensures durability and reliability. The 15D lever design and D rose escutcheon provide a polished appearance in a sleek satin chrome finish (Finish Code: 626), making it an excellent choice for modern environments. Designed for doors ranging from 1-3/4" to 2-1/4" thick, the Best 9KW Electromechanical Lock is electrically unlocked, offering convenient access control while maintaining security. Its reversible handing allows for versatile installation, accommodating various door configurations. The lockset operates with a 7-pin mechanism, ensuring robust protection against unauthorized access, while the S3 ANSI strike enhances compatibility with standard door frames. Built from a resilient zinc alloy with brass trim, this lockset is not only functional but also stylish. It comes with a limited 3-year mechanical and finish warranty, providing peace of mind for your investment. With a single inner and a design that facilitates quick installation, the Best 9KW37DEU15DS3626RQE is a superior choice for those seeking a reliable and aesthetically pleasing electromechanical locking solution.
Attributes
Manufacturer surcharge: $ 0.0
Alternate Codes: 9KW37DEU15D-S3-626-RQE, 9KW37DEU15DS3626RQE, BES9KW37DEU15DS3626RQE, BES9KW37DEU15D-S3-626-RQE 24V, BES9KW37DEU15D-S3-626-RQE-24V, BES9KW37DEU15DS3626RQE24V
Amp Draw: 0.18
Application: CM
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Brass or Bronze
Bolt Projection: 9/16"
Bolt Protection: 9/16"
Category: Commercial Electronic Devices
Chassis Type: Cylindrical Chassis
Clazz: SB
Color: Satin Chrome
Country of Origin: China
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Design: 15D
Dimension: 4-3/4" Lever and 3-1/2" Rose
Door Range: 1-3/4" to 2-1/4"
Door Thickness: 1-3/4" - 2-1/4"
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: DEU-Electronically Unlocked
Grade: Grade 1
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Item Class Description: 9KW Electromechanical Lock 2-3/4" Backset 7 Pin Storeroom Electrically Unlocked 15 Lever and D Rose with ANSI Strike Request to Exit
Item Type Keyword: Electromechanical
Latch Backset: 2-3/4"
Latch Backset Dim: 2-3/4"
Latch Number: 8KL3DL
Latch Type: Dead Latch (Guarded)
Lever Knob Design: 15 - Lever
Leverknob Design: 15 Lever
Limited Warranty: 3 Years
Lock Face Size: 2-1/4" X 1-1/8"
Manufacturer Warranty: Limited 3 Year Mechanical and Finish Warranty
Material: Zinc Alloy with Brass Trim
No Of Inners: 1
Num Pins: 7
Number Of Inners: 1
Number Of Pins: 7 Pin Housing
Operating Voltage: 24VDC
Order_ Qty: 1
Origin: USA
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.13"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 215.31 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 7
Power: Hard Wired
Rose Escutcheon Design: D - Rose
Roseescutcheon Design: D - Rose
Screws: Combination
Series: 9K Series
Ship Weight: 4.3 lbs.
Std Latch Number: 8KL3DL
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 8KS3
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: S3 ANSI Strike
Strike Height: 4-7/8"
Strike Number: 8KS3
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Commercial Electronic Locksets
Subtype: Electronic Locksets
Switch Type: RX
Type: Electronics
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
Upc: 887838211200
Upc Code: 8.87838E+11
