Best Access Solutions Inc WQX M PG Omnilock Portal Gateway delivers advanced wireless communication capabilities for robust access control systems. This innovative portal gateway efficiently manages connections with up to 128 readers, making it ideal for applications typically involving 20-30 readers per portal. Operating on a 2.4 GHz spread-spectrum, it ensures reliable communication with wireless readers or single-door controllers. The WQX M PG features a unique MAC address and utilizes a 16-channel 802.15.4 protocol, which prevents data collisions and enhances interoperability in Wi-Fi-dense environments such as schools and hospitals. Redundant communication allows readers to link with the strongest portal gateway signal, ensuring uninterrupted access. With the ability to cache 50,000 events in dynamic flash circuitry, this gateway provides a robust logging capability. Its direct TCP/IP network connection eliminates the need for RS-485, RS-232, or RS-422 connections, simplifying installation. Additionally, POE-compatible splitters and inserters are available for locations lacking AC power outlets, enhancing versatility. Real-time portal diagnostics monitor RF signal strength, interference, and capacity, ensuring optimal performance. With various antenna options, including omni-directional and ceiling-mounted designs, the WQX M PG seamlessly adapts to diverse site applications, making it an essential component of any modern access control solution.

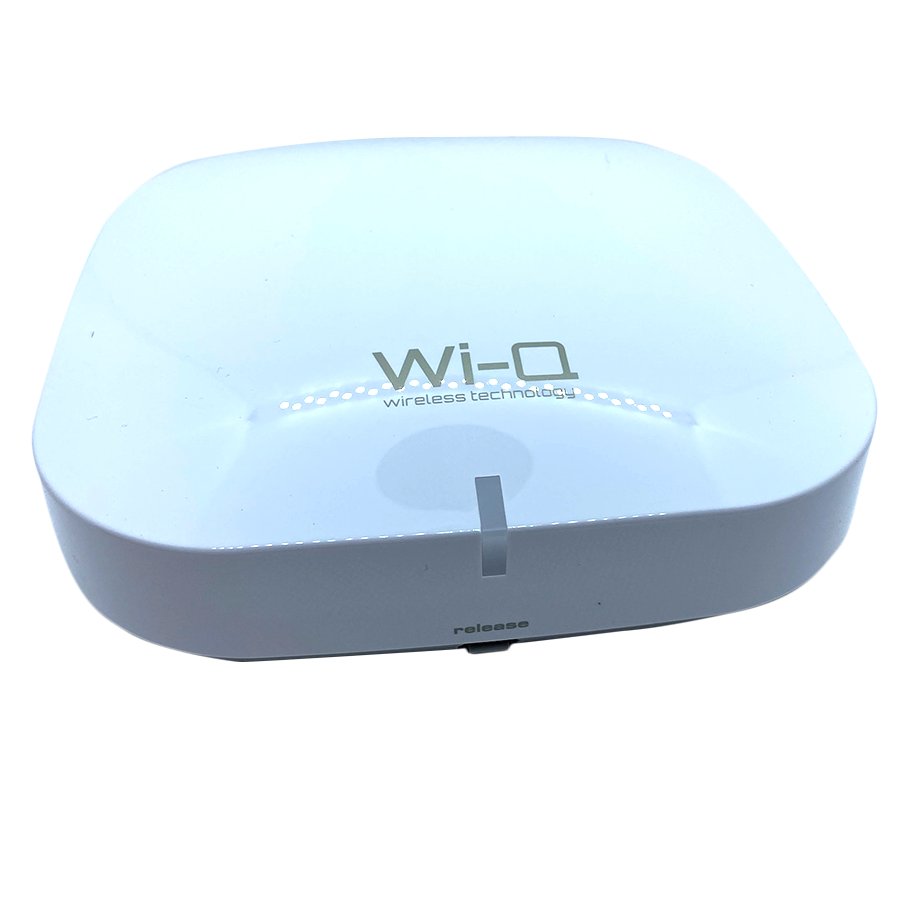

Omnilock Portal Gateway

It beacons every 60 seconds for new updates—ensuring door intelligence is always updated in near real-time.

Specifications:

• Wireless Portal Gateways communicate with up to 128 Readers (typical applications are 20-30 readers per Portal). 64-Door Portal Gateway.
• Communicates at 2.4 GHz spread-spectrum with wireless readers or single door controllers.
• Each portal gateway has its own MAC Address 16-Channel 802.15.4 protocol allows data-collision-free operation and interoperability in 802.11 WiFi concentrated environments (i.e. schools, hospitals).
• Features redundant communication (readers link with strongest portal gateway signal).
• Each portal communicates with up to 128 WAMS readers as available in RF range.
• Antennas available for different site applications: omni-directional, directional, ceiling-mounted, etc.).
• Caches 50,000-events in dynamic flash circuitry.
• Connects directly to TCP/IP network– no RS-485, RS-232, or RS-422 connections.
• POE-compatible splitters/inserters available for isolated locations that have no AC power outlets.
• Real-time portal diagnostics monitor RF signal strength, RF Interference, and portal capacity.

Components:

• OMD-11507-002: Proximity Enrollment Readers.
• WQD-ACMO: Ceiling-mount antennas connect to Portal Gateways or to Single-Door Controllers.
• OMD-12927-001 & OMD-12928-001: PoE Insertion and Splitter components, Power-over-Ethernet devices allow use of WAMS Portals in areas where no AC power is available.
• OMD-12657-01: Wireless Conversion Kits. allow users to upgrade their Non-Wireless OMNILOCK systems to WAMS Wireless Systems.

Features

• Communicates at 2.4 GHz spread-spectrum with wireless readers or single door controllers.
• Connects directly to TCP/IP network– no RS-485, RS-232, or RS-422 connections.
• Each portal gateway has its own MAC Address 16-Channel 802.15.4 protocol allows data-collision-free operation and interoperability in 802.11 WiFi concentrated environments (i.e. schools, hospitals).
• Caches 50,000-events in dynamic flash circuitry.
• Antennas available for different site applications: omni-directional, directional, ceiling-mounted, etc.).
• Each portal communicates with up to 128 WAMS readers as available in RF range.
• Real-time portal diagnostics monitor RF signal strength, RF Interference, and portal capacity.
• POE-compatible splitters/inserters available for isolated locations that have no AC power outlets.
• Wireless Portal Gateways communicate with up to 128 Readers (typical applications are 20-30 readers per Portal). 64-Door Portal Gateway.
• Features redundant communication (readers link with strongest portal gateway signal).
