Blum 03270285 Movento LegraBx TipOn Sync-Rod Installation Guide

BLUM 03270285 Movento/LegraBx TipOn Sync-Rod enhances the functionality of LEGRABOX drawers by allowing them to open effortlessly with just a light touch. This synchronization rod is specifically engineered for cabinets wider than 13-3/4" (350mm), ensuring optimal performance and ease of use. With the TIP-ON BLUMOTION mechanism available in three strengths, you can customize the drawer's response to your touch, providing the perfect balance of convenience and control. Measuring 44" in length and designed for convenient cut-to-size installation, the synchronization rod is suitable for cabinet widths up to 55" (1400mm), making it a versatile addition to any cabinetry project. For installations under 13-3/4" wide, you will need a complete set including cabinet profiles, drawer profiles, and a TIP-ON unit. For wider applications, simply add the synchronization rod and two adapters. The installation maintains standard dimensions for LEGRABOX, ensuring compatibility and ease for professionals and knowledgeable homeowners alike. Additionally, a front gap template is included, facilitating a precise 3/32" front gap for a polished look. Trust BLUM for innovative hardware solutions that blend seamlessly with your cabinetry designs.

Movento/LegraBx TipOn Sync-Rod

• - 1 set of drawer profiles & fixing brackets
• Adapter
• For one set over 13-3/4" wide add the following components
• To be used with optional synchronization rod
• Optional but recommended when drawer fronts are higher than 20" or drawer boxes are wider than 13-3/4"

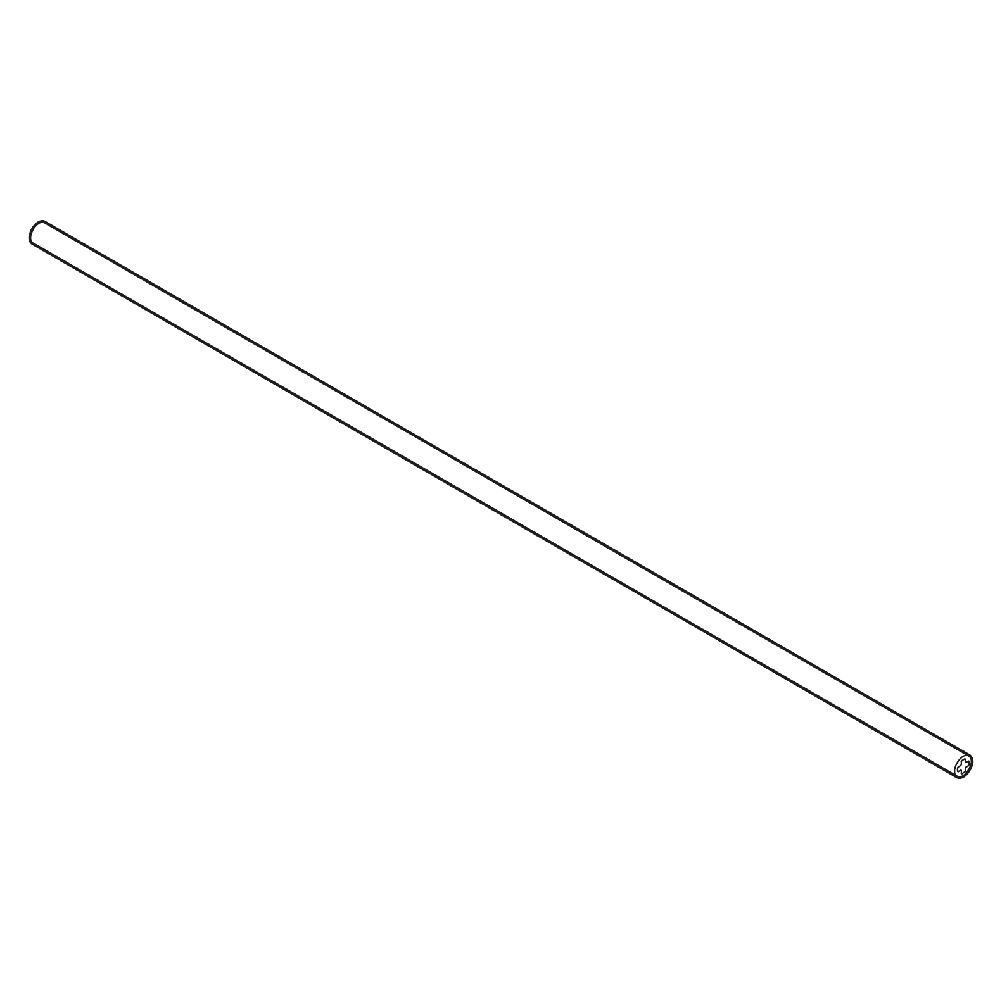

• 44" cut to size
• Enables LEGRABOX drawers to be opened with just a light touch of the drawer front
• Suitable for cabinet widths up to 55" (1400mm)
• - 1 set of cabinet profiles
• Two needed per application
• Synchronization Rod
• - 2 adapters
• TIP-ON BLUMOTION for LEGRABOX uses the same standard installation dimensions as for LEGRABOX
• Front Gap Template - for creating a 3/32" front gap
• - 1 set TIP-ON unit and trigger
• - 1 synchronization rod
• For one set under 13-3/4" wide order:
