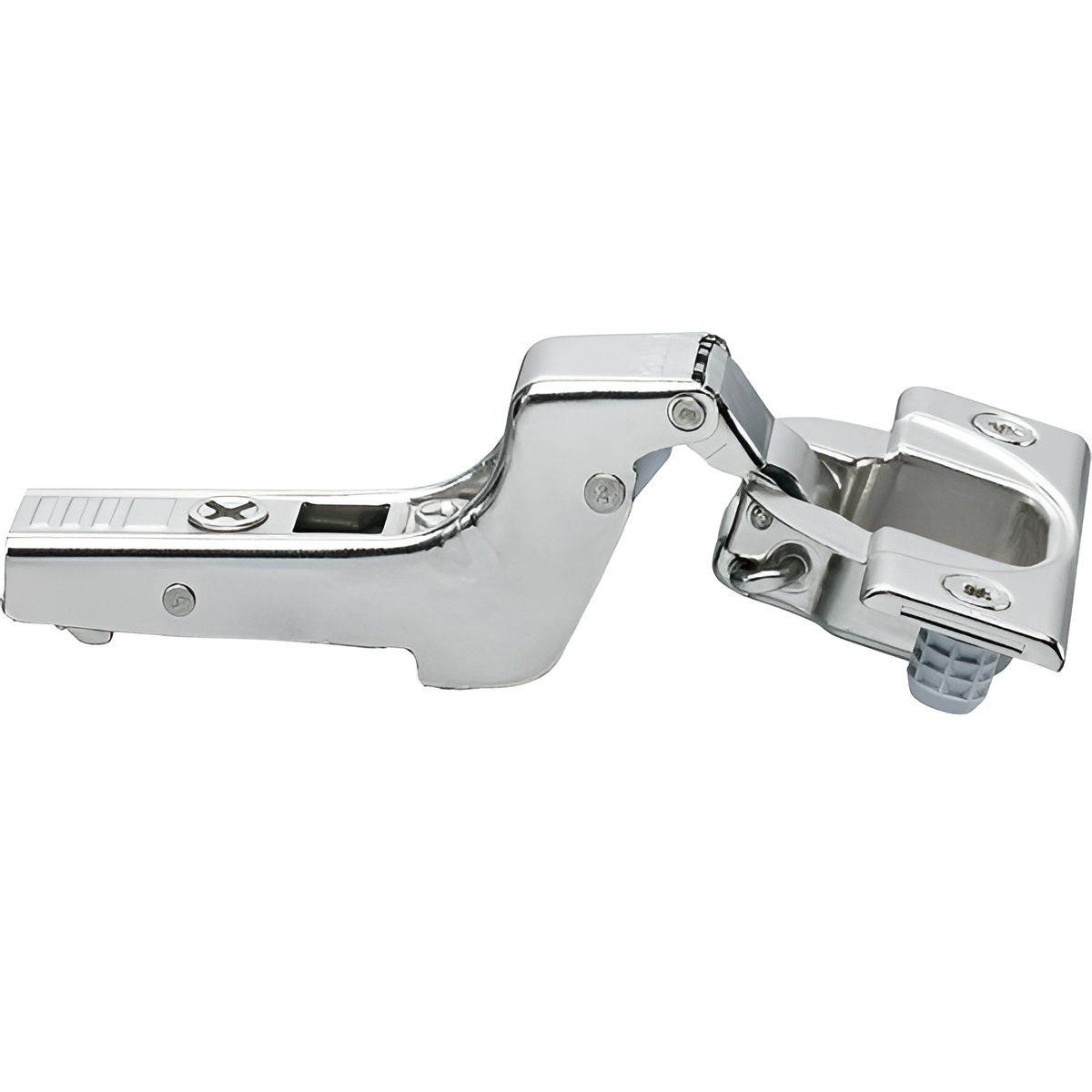

Blum 05166112 110 Inset Self-Closing Dowel

BLUM 05166112 110 Inset Self Close Dowel is designed to enhance your cabinetry with precision and ease. This self-closing hinge features a 13mm cup depth and is suitable for thicker doors up to 1 inch. Its innovative design includes a new insertion ram for press-in hinges (BMZM.0040), ensuring secure and efficient installation. To achieve the perfect overlay or inset for your project, select the appropriate hinge and mounting plate combination. For a 1/4" overlay, use Hinge B071T3650 with Mounting Plate B175H710. For a 1/2" overlay, opt for Hinge B071T3550 with Mounting Plate B175H713. Full overlay applications also require Hinge B071T3550, paired with Mounting Plate B175H710. Lastly, for inset cabinetry, choose Hinge B071T3750 alongside Mounting Plate B175H710. Each screw-on hinge is accompanied by screws, though please note that mounting plates must be ordered separately. With a limited lifetime warranty, the BLUM 05166112 provides both reliability and functionality for your cabinetry needs. Ideal for building professionals and discerning homeowners, this European hinge combines quality craftsmanship with user-friendly design, making it a top choice for any project.

110 Inset Self Close Dowel

• Full Overlay - Hinge B071T3550‚ Mounting Plate B175H710
• Can use on thicker doors up to 1"
• Mounting Plates for Hinges must be ordered separately
• Choose Hinge and Mounting plate to attain correct overlay or inset as follows:
• Inset - Hinge B071T3750‚ Mounting Plate B175H710
• 1/2" Overlay - Hinge B071T3550‚ Mounting Plate B175H713
• 13mm cup depth
• Screws Included with screw-on hinges
• Limited Lifetime Warranty
• new insertion ram for press in hinges BMZM.0040
• 1/4" Overlay - Hinge B071T3650‚ Mounting Plate B175H710
