Blum 05512402 Blum Inserta Boring Template

BLUM 05512402 Boring Template for Blum Inserta is an essential tool for any woodworking professional or DIY enthusiast looking to achieve precise hinge and mounting plate installations. This simple yet effective drilling gauge is specifically designed for drilling dowel holes for INSERTA hinges and system screw holes for wing-type mounting plates, ensuring accuracy and efficiency in your projects. The template provides a clear and straightforward drilling process. Start by determining the hinge position and drilling a 35mm hole using a drill press. With the adjustable drilling distance selector, you can easily modify the distance to suit your requirements. When it’s time to drill the 8mm holes for the wing mounting plate, simply adjust the gauge to face upward and drill 5mm holes for the mounting plate or create pilot holes for wood screws using a center punch. Weighing just 0.25 pounds and compact in design, the BLUM Boring Template is easy to handle and transport. This hinge template is not a 35mm hole template, making it a specialized tool for your specific needs. Whether you’re a seasoned professional or a passionate hobbyist, this gauge will elevate the quality and precision of your woodworking projects.

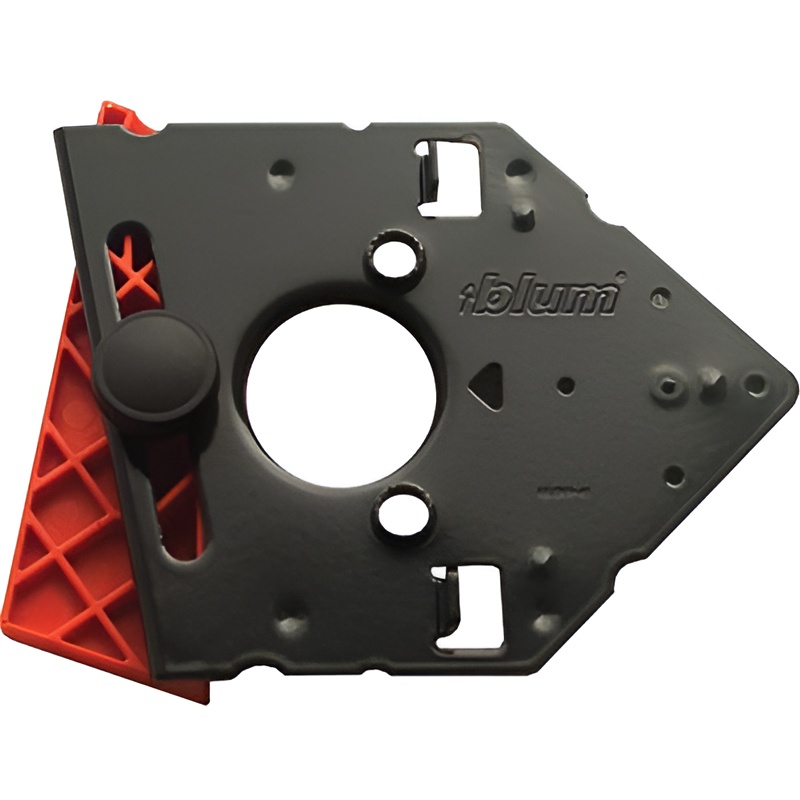

Boring Template for Blum Inserta

• Hinge drilling pattern:
• 3. Adjust drilling distance by turning drilling distance selector
• 1. Determine hinge position
• 2. Drill 35mm hole using drill press
• 5. Drill 8mm holes Wing mounting plate:
• 4. Position drilling gauge (drilling distance selector facing down)
• 3. Drill 5mm holes for mounting plate or create pilot holes for wood screws with a center punch
• This is not a 35mm hole template
• 1. Determine mounting plate position
• 2. Position drilling gauge (drilling distance selector facing up)
