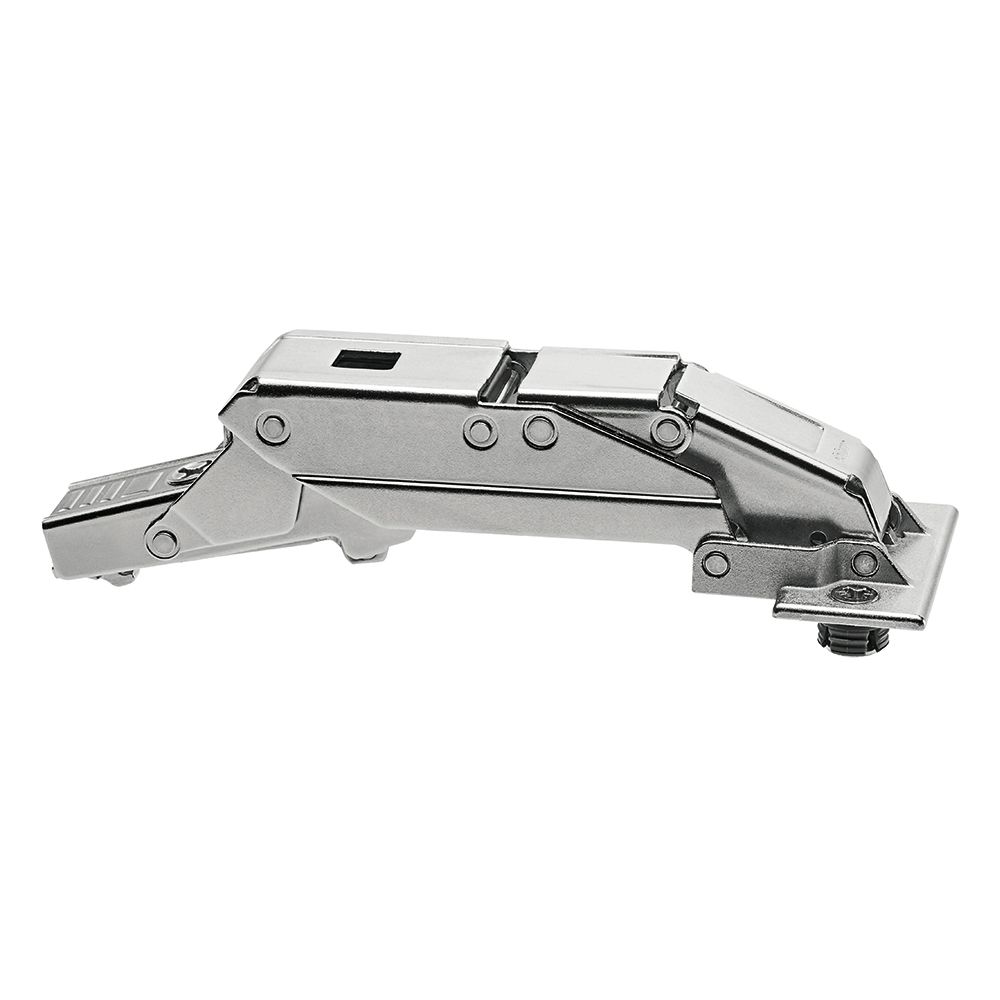

Blum 06273928 110 ThinDoor FreeSwing Expando

BLUM 06273928 110 Thin Door FreeSwing Expando combines innovative design with robust functionality, making it an excellent choice for modern cabinetry. This hinge features Blum's advanced EXPANDO T technology, allowing for a secure attachment system tailored for thin front materials. The steel pull-in anchor provides stability for harder materials, while the plastic jaws cater to softer materials, ensuring a reliable fit across a range of applications. With a generous 110° opening angle and 3-dimensional adjustment capabilities, this hinge allows for optimal door movement and alignment. It is crafted from all-metal components, nickel-plated for durability, and supports door thicknesses ranging from 8 to 14 mm, accommodating overlays up to 19 mm. The BLUMOTION feature offers a soft close, which can be easily deactivated if needed, enhancing user flexibility. Installation is straightforward: simply drill the required 10 mm diameter holes, insert, and secure with screws. The hinge is compatible with existing CLIP mounting plates, simplifying upgrades or replacements. Additionally, angle restriction clips are available to customize the opening range to your needs, ensuring a perfect fit for any project. Weighing just 0.320 kg, the BLUM 110 Thin Door FreeSwing Expando is designed for efficiency and performance.

110 ThinDoor FreeSwing Expando

• 10mm diameter holes by 6mm deep
• Built-in BLUMOTION with deactivation switch
• Angle restriction clips available
• Compatible with existing CLIP mounting plates
• Zero protrusion with 0mm plate
• Up to 19mm overlay
• 110° opening angle
• 3 dimensional adjustment
• For door thicknesses of 8-14mm
• All metal hinge, nickel plated
