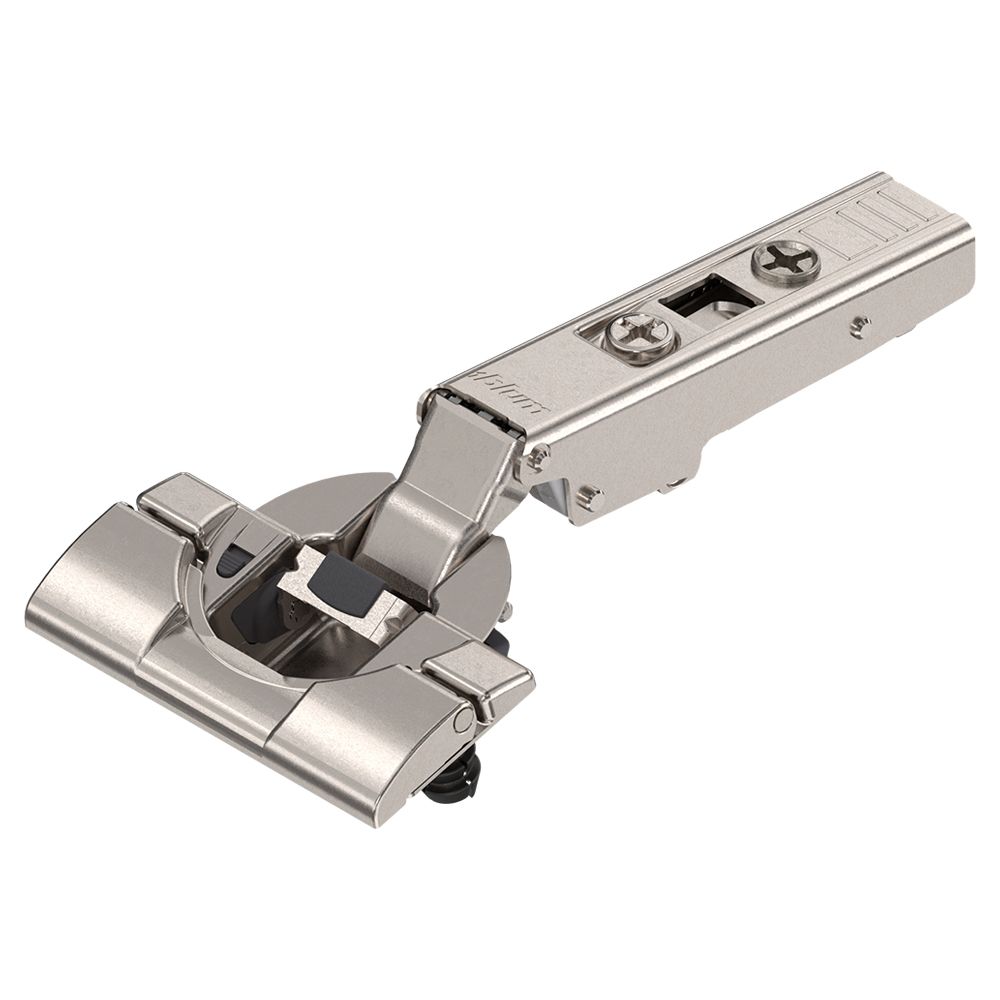

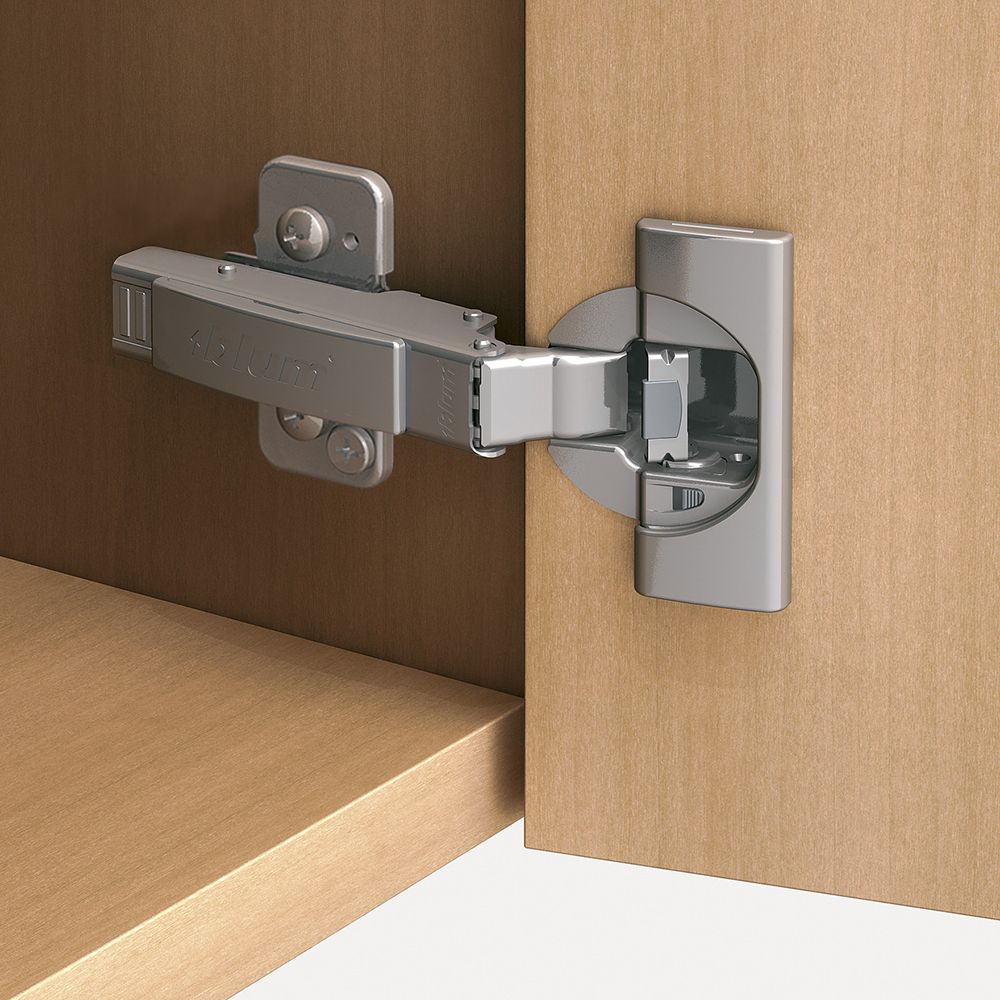

Blum 07001730 110 Full Overlay Soft Close Inserta

BLUM 07001730 110 Full Overlay Soft Close Inserta offers a seamless blend of functionality and elegance, ideal for modern cabinetry. Designed to accommodate various overlays and inset applications, this soft close hinge ensures smooth and silent operation, enhancing the overall user experience. With a cup depth of 13mm, it is engineered for versatility, making it suitable for thicker doors up to 1 inch. Selecting the appropriate hinge and mounting plate is simple. For a 1/4" overlay, pair with Hinge B071B3650 and Mounting Plate B175H710; for a 1/2" overlay, use Hinge B071B3550 and Mounting Plate B175H713. For full overlay, the combination of Hinge B071B3550 and Mounting Plate B175H710 is perfect. If an inset application is required, opt for Hinge B071B3750 with Mounting Plate B175H710. This product comes with screws included, ensuring a hassle-free installation. Additionally, Blum backs the 07001730 with a limited lifetime warranty, reflecting their commitment to quality and customer satisfaction. Mounting plates must be ordered separately, allowing you to customize your setup to suit your specific needs. Elevate your cabinetry with BLUM’s innovative soft close hinge solution.

110 Full Overlay Soft Close Inserta

• Can use on thicker doors up to 1"
• Mounting Plates for Hinges must be ordered separately
• Choose Hinge and Mounting plate to attain correct overlay or inset as follows:
• Inset - Hinge B071B3750‚ Mounting Plate B175H710
• 13mm cup depth
• 1/2" Overlay - Hinge B071B3550‚ Mounting Plate B175H713
• Screws Included with screw-on hinges
• Limited Lifetime Warranty
• 1/4" Overlay - Hinge B071B3650‚ Mounting Plate B175H710
• Full Overlay - Hinge B071B3550‚ Mounting Plate B175H710
• new insertion ram for press in hinges BMZM.0040
