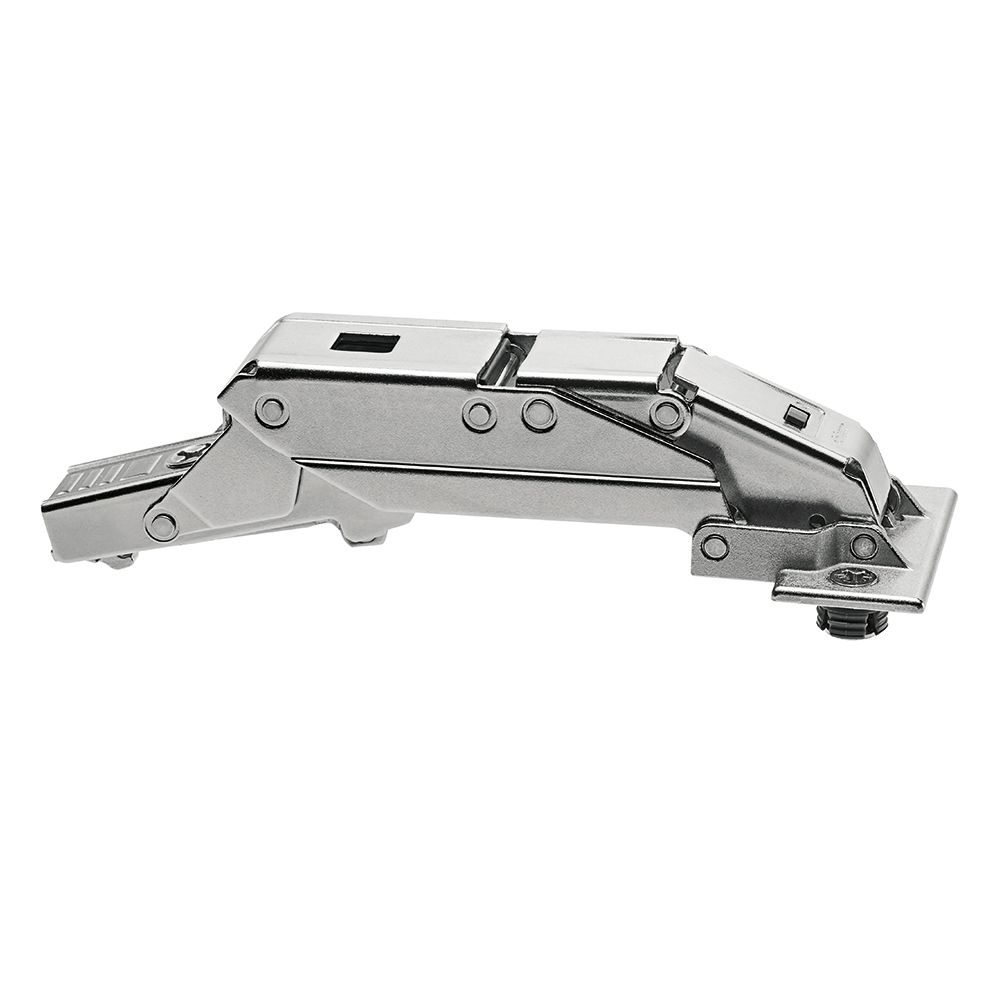

Blum 07021363 Blumotion Expando 110 Thin Door Hardware

BLUM 07021363 110 Thin Door Blumotion Expando offers an innovative solution for installing thin cabinet doors with ease and precision. Utilizing the advanced EXPANDO T technology, this system features a steel pull-in anchor that ensures a secure fit for harder materials, while plastic jaws provide a reliable hold for softer materials. Designed for door thicknesses ranging from 8 to 14 mm, this hinge supports front materials with sufficient stability and strength, allowing for overlays of up to 19 mm. One of the standout features of the 110 Thin Door Blumotion Expando is its 110° opening angle, which facilitates easy access to cabinet interiors. The all-metal hinge, nickel-plated for durability, incorporates three-dimensional adjustment capabilities, ensuring a perfect fit every time. The built-in BLUMOTION soft-close mechanism, complete with a deactivation switch, allows for smooth and silent operation, enhancing user experience. Installation is straightforward-simply drill, insert, and secure the screws into 10 mm diameter holes that are 6 mm deep. This hinge is compatible with existing CLIP mounting plates and includes angle restriction clips for added versatility. With zero protrusion provided by the 0 mm plate, the BLUM 07021363 is a top choice for modern cabinetry.

110 ThinDoor Blumotion Expando

• 10mm diameter holes by 6mm deep
• Built-in BLUMOTION with deactivation switch
• Angle restriction clips available
• Compatible with existing CLIP mounting plates
• Zero protrusion with 0mm plate
• Up to 19mm overlay
• 110° opening angle
• 3 dimensional adjustment
• For door thicknesses of 8-14mm
• All metal hinge, nickel plated
