Blum 07090729 Compact Clip SoftCl 1-1/4" OL Dowel

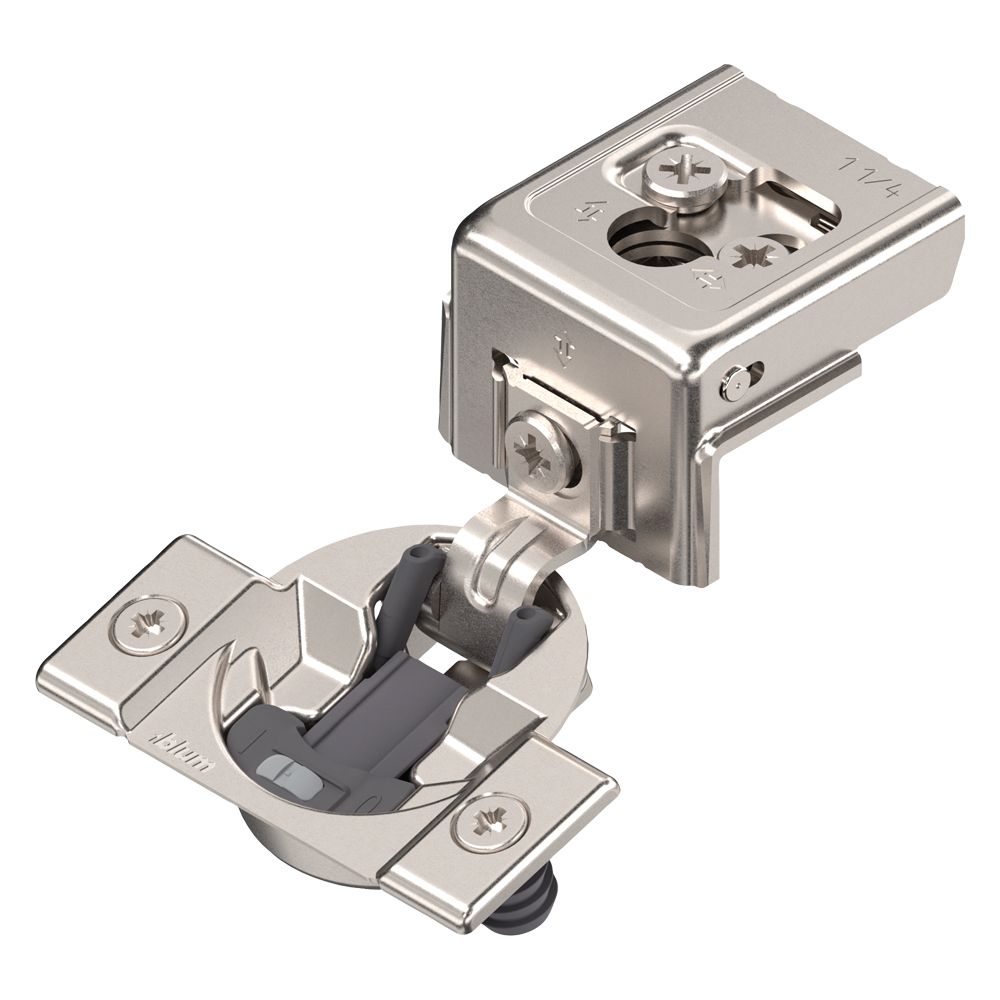

BLUM 07090729 COMPACT CLIP Soft Close 1-1/4 OL Dowel enhances your cabinetry with precision engineering and innovative design. This two-piece hinge features a COMPACT CLIP mechanism that ensures smooth, soft-close functionality, providing a gentle, quiet closing action for cabinet doors. With a generous 107° opening angle, this hinge allows for maximum accessibility to your cabinet interiors. The integrated BLUMOTION deactivation switch offers the flexibility to adjust the soft close feature based on your specific needs, ensuring a tailored user experience. This hinge also boasts impressive adjustability, including a three-way cam adjustment system. You can easily fine-tune the hinge side-to-side with +/- 1.5mm (1/16"), height adjustments of +/- 2mm (5/64"), and depth adjustments of +2.5/-1mm (+3/32"/-1/32"). Designed with a 1/2" cup depth and a minimum reveal of 9/32", it fits seamlessly into face frame cabinetry. Weighing just 0.196 kg, the BLUM COMPACT CLIP Soft Close hinge is lightweight yet durable, making it an excellent choice for both professional builders and discerning homeowners. Enjoy enhanced functionality and a refined aesthetic with this exceptional hardware solution from Blum.

Blum Compact CLIP Soft Close 1-1/4 OL Dowel

• Height adj +/- 2mm (5/64")
• Side to side +/- 1.5mm (1/16")
• 1/2" cup depth
• Minimum reveal 9/32"
• BLUMOTION deactivation switch
• 3 way cam adjustment Side to side +/- 1.5mm (1/16") Height adj +/- 2mm (5/64") Depth adj +2.5/-1mm (+3/32"/-1/32")
• Depth adj +2.5/-1mm (+3/32"/-1/32")
• 107°
