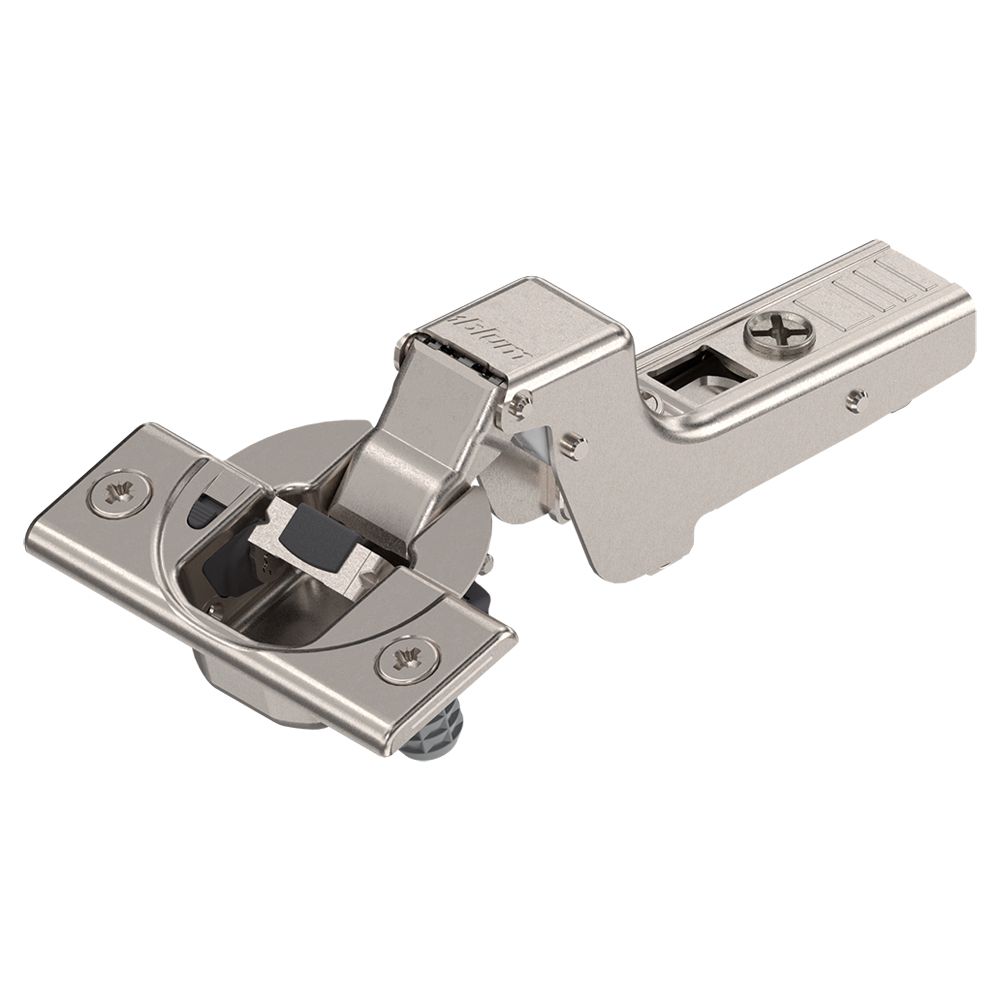

Blum 08913323 110 Inset Soft Close Dowel

BLUM 08913323 110 Inset Soft Close Dowel is the perfect solution for those seeking a seamless and elegant closing mechanism for cabinet doors. Designed with a 13mm cup depth, this soft close hinge is engineered to accommodate thicker doors, up to 1 inch in thickness, ensuring versatility in various cabinetry applications. This hinge requires the selection of a compatible mounting plate to achieve the desired overlay or inset configuration. Options include 1/4" overlay with Hinge B071B3650 and Mounting Plate B175H710, 1/2" overlay with Hinge B071B3550 paired with Mounting Plate B175H713, full overlay with the same hinge and Mounting Plate B175H710, and inset with Hinge B071B3750 alongside Mounting Plate B175H710. Notably, the BLUM 110 Deg Soft Close Inset Hinge is equipped with a new insertion ram for press-in hinges (BMZM.0040), enhancing the installation experience. The product includes screws for screw-on hinges, ensuring a hassle-free mounting process. With a limited lifetime warranty, this hinge provides not only superior functionality but also peace of mind. Trust BLUM for innovative solutions that elevate the quality of your cabinetry projects.

110 Inset Soft Close Dowel

• Can use on thicker doors up to 1"
• Mounting Plates for Hinges must be ordered separately
• Choose Hinge and Mounting plate to attain correct overlay or inset as follows:
• Inset - Hinge B071B3750‚ Mounting Plate B175H710
• 13mm cup depth
• 1/2" Overlay - Hinge B071B3550‚ Mounting Plate B175H713
• Screws Included with screw-on hinges
• Limited Lifetime Warranty
• 1/4" Overlay - Hinge B071B3650‚ Mounting Plate B175H710
• Full Overlay - Hinge B071B3550‚ Mounting Plate B175H710

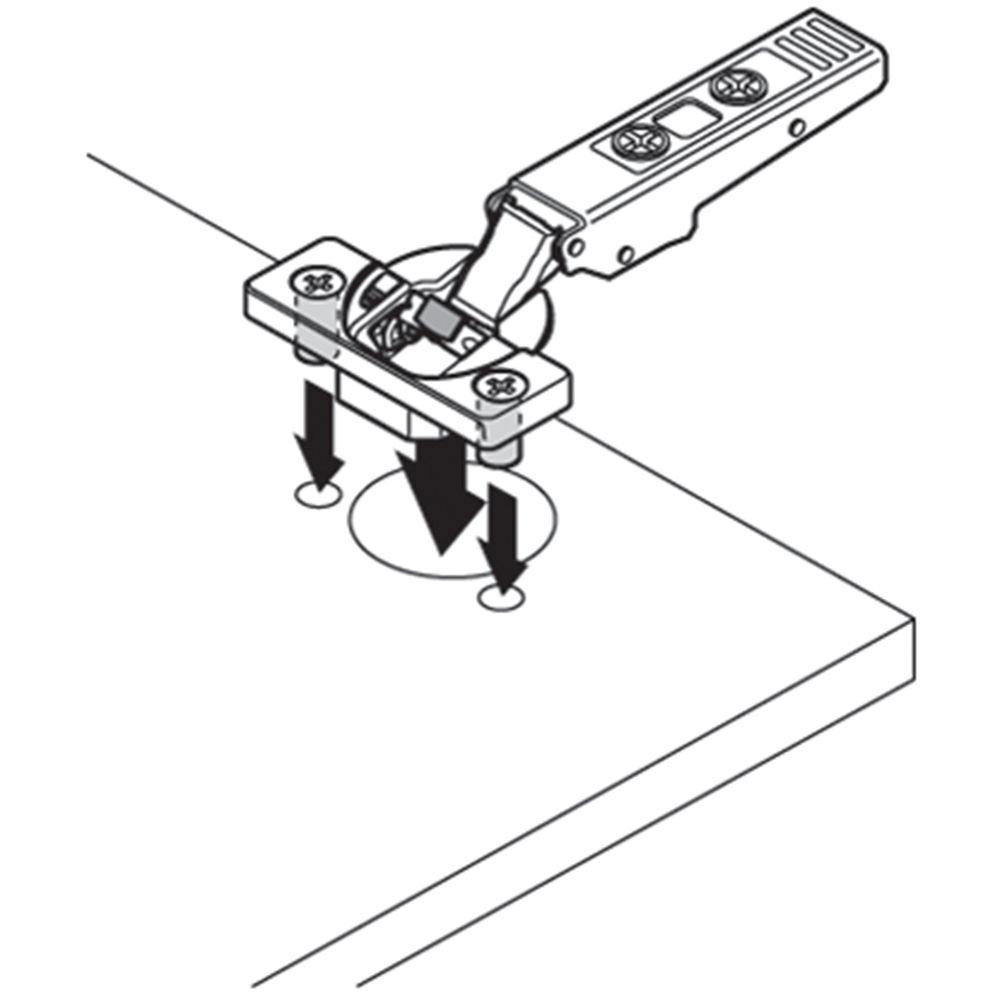

• new insertion ram for press in hinges BMZM.0040
